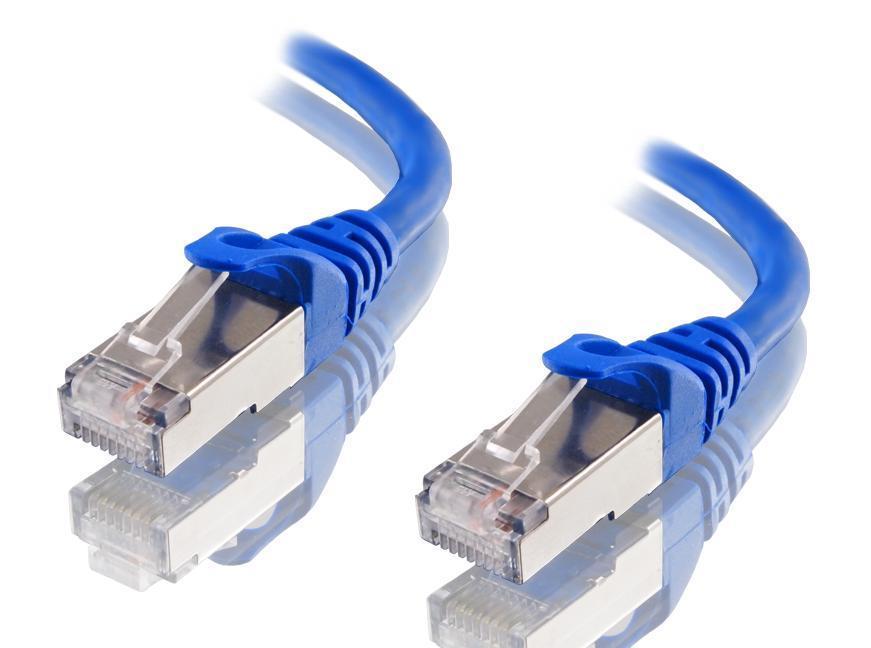

Astrotek CAT6A Shielded Ethernet Cable 50cm Blue
Astrotek CAT6A Shielded Ethernet Cable 50cm Blue
SKU:CBAT-CAT6ABLU05M
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Astrotek |
|---|---|
| Category | Cables |
| SKU | CBAT-CAT6ABLU05M |
| Availability | In Stock |
Overview
- The Astrotek CAT6A Shielded Ethernet Cable is engineered to support next-generation 10GBASE-T network applications. With 26AWG pure copper conductors and comprehensive AL-MG braided shielding, it provides the signal integrity and EMI protection required for demanding network environments.
The snagless RJ45 design with gold-plated contacts ensures reliable, damage-resistant connections. This 50cm patch lead is ideal for short-distance connections between network equipment in data centres, server rooms, and office network installations.
Manufactured to CAT6A standards, it exceeds performance requirements for modern Gigabit and 10-Gigabit Ethernet applications. The LSZH (Low Smoke Zero Halogen) jacket reduces toxicity and smoke emissions, making it suitable for commercial and industrial environments where fire safety compliance is important.
Specifications
| cable_category | CAT6A |
|---|---|
| connector_type | 8P/8C RJ45 |
| connector_finish | Gold-plated |
| conductor_gauge | 26AWG |
| conductor_material | Stranded pure copper |
| shielding | AL-MG braided (S/FTP) |
| jacket_material | LSZH PVC |
| length | 50cm (0.5m) |
| color | Blue |
| design_feature | Snagless |
| maximum_data_rate | 10 Gbps |
| application | 10GBASE-T |
| warranty | 12 months |
Key Features
Ideal For
FAQs
Is the Astrotek CAT6A cable suitable for 10 Gigabit Ethernet?
Yes. The cable is CAT6A rated and designed to support 10GBASE-T applications, making it suitable for 10 Gigabit Ethernet networks.
What is S/FTP shielding and why does it matter?
S/FTP (Shielded/Foiled Twisted Pair) shielding with AL-MG braiding protects against electromagnetic interference (EMI), ensuring signal integrity in demanding network environments.
What does the snagless design do?
The snagless design protects the latch on the RJ45 connector from being caught or damaged during installation, preventing connection failures and extending cable lifespan.
Why are the connectors gold-plated?
Gold-plating improves conductivity and corrosion resistance, ensuring reliable connections over time and reducing signal loss.
What is LSZH and why is it important?
LSZH (Low Smoke Zero Halogen) is a jacket material that produces minimal smoke and no halogenic acids if exposed to fire, improving safety in enclosed spaces.
Can I use this cable for short-distance network connections?
Yes. At 50cm, this patch lead is ideal for short-distance connections between networked equipment in server rooms, data centres, and office installations.
