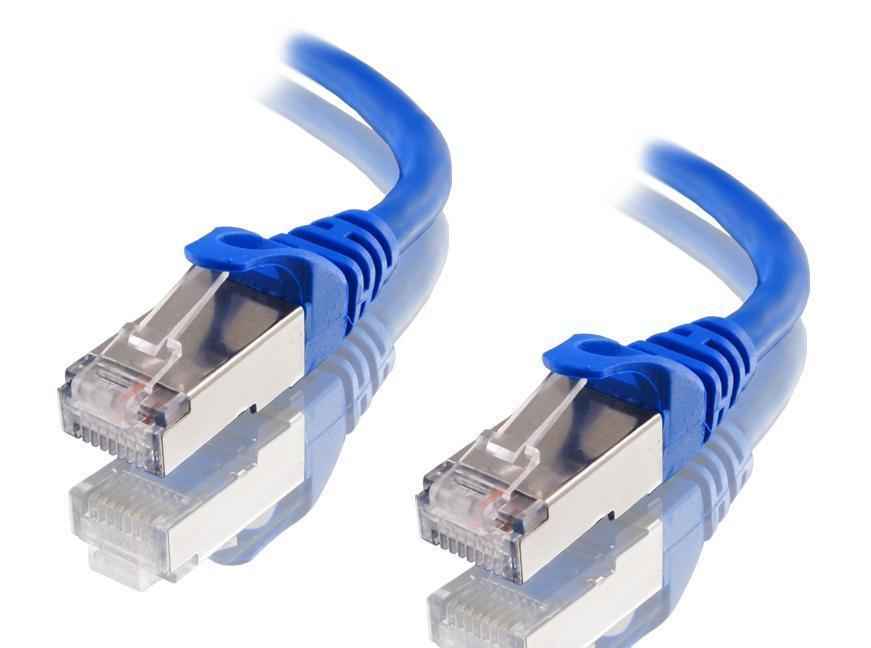

Astrotek CAT6A Shielded Ethernet Cable 40m
Astrotek CAT6A Shielded Ethernet Cable 40m
SKU:CBAT-CAT6ABLU40M
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Astrotek |
|---|---|
| Category | Cables |
| SKU | CBAT-CAT6ABLU40M |
| Availability | In Stock |
Overview
- The Astrotek CAT6A Shielded Ethernet Cable is engineered to support next-generation 10GBASE-T network applications. At 40 metres, it provides extended reach without sacrificing signal quality, making it ideal for large office deployments, data centres, and enterprise network infrastructure.
The cable features robust S/FTP (Shielded Foiled Twisted Pair) shielding with an AL-MG braided outer shield, which effectively reduces electromagnetic interference and maintains data integrity over longer distances. Gold-plated RJ45 connectors ensure reliable connections and resistance to corrosion.
Constructed from 26AWG pure copper conductors, the cable delivers superior conductivity and performance consistency. The LSZH jacket meets fire safety standards, making it compliant for use in commercial buildings where low smoke and zero halogen emissions are required. The snagless connector design prevents cable damage during installation, reducing downtime and maintenance costs.
Specifications
| Brand | Astrotek |
|---|---|
| Model | CAT6A Shielded 40m |
| Cable Category | Category 6a (CAT6A) |
| Length | 40 metres |
| Colour | Blue |
| Connector Type | RJ45 (8P/8C) |
| Connector Plating | Gold-plated |
| Conductor Material | Pure copper stranded |
| Conductor Gauge | 26AWG |
| Shielding Type | S/FTP (Shielded Foiled Twisted Pair) |
| Outer Shield | AL-MG braided |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Maximum Data Rate | 10Gbps (10GBASE-T) |
| Frequency Rating | Up to 500 MHz |
| Connector Style | Snagless design |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What is the difference between CAT6A and standard CAT6 cable?
CAT6A (Augmented Category 6) is rated for 10 Gigabit Ethernet (10GBASE-T) over longer distances compared to standard CAT6. It features improved shielding and higher frequency ratings (up to 500 MHz) to reduce crosstalk and electromagnetic interference, making it more suitable for demanding professional network environments.
Why is S/FTP shielding important?
S/FTP (Shielded Foiled Twisted Pair) shielding provides two layers of protection: individual foil wrap around each pair and an overall braided shield. This dual shielding significantly reduces electromagnetic interference (EMI) and crosstalk, ensuring signal integrity and stable data transmission, particularly important in environments with high electrical noise.
Can I use this cable for PoE (Power over Ethernet) applications?
Yes, CAT6A cables are compatible with PoE and PoE+ standards, allowing you to power compatible devices such as IP cameras, VoIP phones, and wireless access points alongside data transmission.
Is the 40-metre length suitable for my installation?
CAT6A cables support 10Gbps speeds up to 100 metres in standard conditions. At 40 metres, this cable is well within the safe operating range. However, for distances exceeding 100 metres, consider using network switches or repeaters to maintain signal quality.
What does LSZH jacket mean and why does it matter?
LSZH (Low Smoke Zero Halogen) is a fire-resistant jacket material that produces minimal smoke and no toxic halogen gases when exposed to fire. It is required in commercial buildings, data centres, and enclosed spaces where fire safety and air quality compliance are critical.
What is the snagless connector design?
The snagless design features a retractable or streamlined connector boot that prevents the RJ45 latch from catching on objects during installation and handling. This reduces accidental damage to the cable and connector, saving time during installation and reducing maintenance issues.
Are the connectors corrosion-resistant?
Yes, the RJ45 connectors feature gold plating, which provides excellent corrosion resistance and ensures stable, reliable connections even in humid or challenging environments over extended periods.
