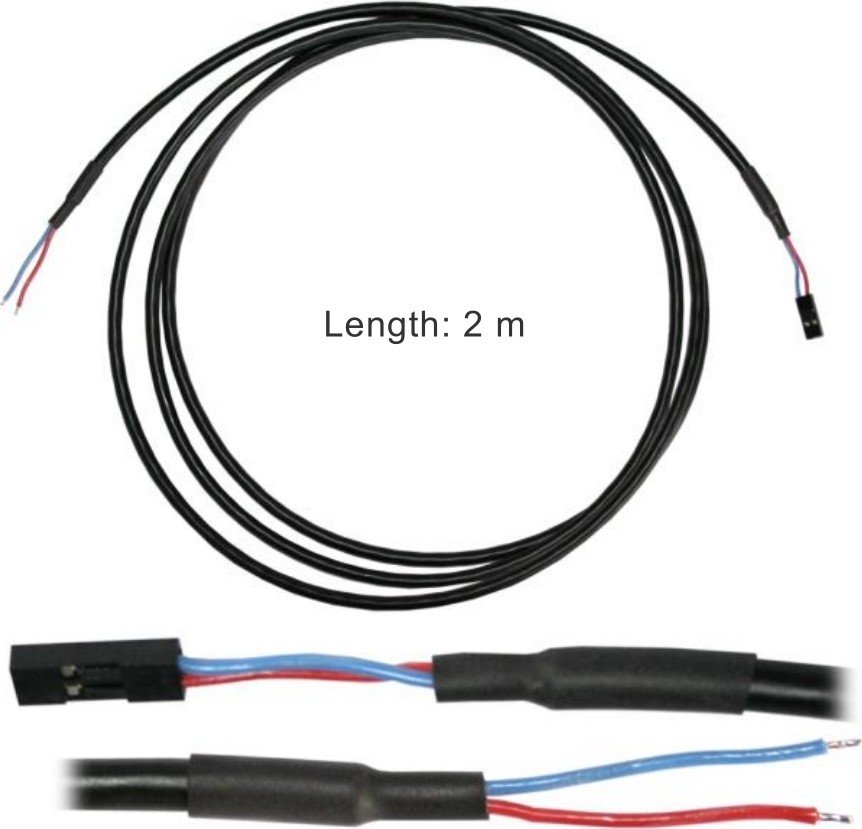

Shuttle CXP01 External Push Button Switch Cable
Shuttle CXP01 External Push Button Switch Cable
SKU:SYS-CXP01
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Shuttle |
|---|---|
| Category | Systems - NUC/SFF/AIO |
| SKU | SYS-CXP01 |
| Availability | In Stock |
Overview
- The Shuttle CXP01 external push button switch cable solves a common installation challenge: powering on or off Shuttle XPC systems that are mounted remotely, suspended, or otherwise difficult to access. Many Shuttle XPC models include a rear panel connector specifically designed for this purpose, and the CXP01 provides the bridge between that connector and a standard push button switch of your choice.
This 2-metre shielded cable uses industry-standard construction with robust dual header connectors. The tin-plated crimp contacts resist corrosion and ensure reliable electrical connections over time. The two-pole design provides the necessary signal path for power button functionality.
Compatibility spans over 40 Shuttle XPC model variants, including the popular XH, DS, DH, DQ, DL, and SH series. Installation flexibility is built in—connect the tin-plated leads to your choice of push button switch using either screw terminals or solder connections, depending on your preference and application.
With a 12-month warranty, the CXP01 is a cost-effective solution for organisations running Shuttle XPC systems in non-traditional or hard-to-reach locations.
Specifications
| Cable Type | Shielded, industry-standard |
|---|---|
| Cable Length | 2 metres (approximately) |
| Cable Outer Diameter | 6.5 mm |
| Conductor Configuration | Two-pole cable, 2x 0.34 mm² |
| Cable Colour | Black |
| Connector Type | Dual header connector |
| Connector Pitch | 2.54 mm |
| Contact Type | Female crimp contact pins, tin-plated |
| Connection Options | Screw-type or soldering |
| Warranty | 12 months |
| Compatible Models | Shuttle XH310(V), XH310R(V), XH610(V), XH410G, XH510G(2), DS61, DS81(L), DH110(SE), DH170, DQ170, DH270, DH310(V2), DH310S, DH370, DH410(S), DH470, DH610(S), DH670, DS47, DS407(T), DS437(T), DS57Ux, DS67Ux, DS68U, DS77Ux, DS10Ux, DS20Ux, DX30, DL10J, DL20N(6), SH510R4, SH570R6 (Plus), SH570R8, SW580R8 |
Key Features
Ideal For
FAQs
Which Shuttle XPC models is this cable compatible with?
The CXP01 is compatible with over 40 Shuttle models, including the XH, DS, DH, DQ, DL, and SH series. A full list of compatible models is provided in the technical specifications. Check the compatibility table to confirm your specific system.
How do I connect a push button switch to this cable?
The cable provides tin-plated leads that connect to the push button switch of your choice. You can use either screw-type terminals for quick connections or solder the leads for a permanent installation, depending on your preference and application.
What is the cable length and is it shielded?
The cable is approximately 2 metres long with a 6.5 mm outer diameter. It uses shielded, industry-standard construction to protect against electromagnetic interference and ensure reliable signal transmission.
Can this cable be used with non-Shuttle systems?
The CXP01 is specifically designed for Shuttle XPC systems with a compatible rear panel connector. It may not work with other manufacturers' systems. Verify your system's compatibility before purchasing.
What is included in the package?
The CXP01 package includes the 2-metre cable with dual header connectors and tin-plated leads. It does not include a push button switch—you will need to source and connect a compatible push button switch separately.
Is the cable suitable for outdoor or harsh environments?
The CXP01 is designed for standard indoor IT installations. For outdoor, high-humidity, or harsh environment applications, consult with your supplier regarding suitability and any additional protective measures required.
What warranty is provided?
The Shuttle CXP01 is covered by a 12-month manufacturer's warranty from the date of purchase. Warranty terms and coverage details are available from your distributor.
