Western Digital G-RAID SHUTTLE 8 160TB External RAID Storage
Western Digital G-RAID SHUTTLE 8 160TB External RAID Storage
SKU:HXWD-GRAIDSHUT8-160TAPJP

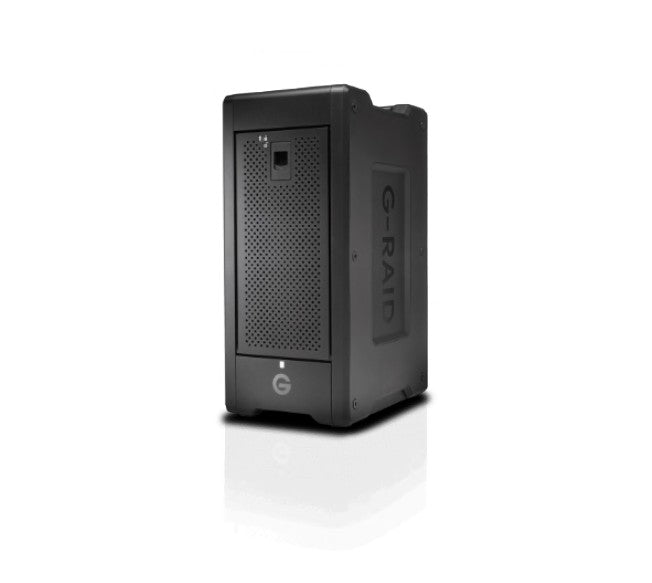

The Western Digital G-RAID SHUTTLE 8 160TB is a transportable 8-bay hardware RAID solution designed for content creation and media workflows. Featuring Thunderbolt 3 connectivity, enterprise-class Ultrastar drives, and transfer speeds up to 1700MB/s read, it delivers high-capacity backup and real-time editing performance for creative professionals.
Couldn't load pickup availability
- See our return policy
- 5-year limited warranty Manufacturer Warranty
Product Information
| Brand | Western Digital |
|---|---|
| Category | Hard Drives - External |
| SKU | HXWD-GRAIDSHUT8-160TAPJP |
| Availability | In Stock |
Overview
- The Western Digital G-RAID SHUTTLE 8 160TB is a professional-grade external RAID storage system designed for demanding content creation workflows. With 160TB of capacity spread across eight enterprise-class hard drives, it provides the storage density and performance required for modern video production, including multi-stream 4K, 8K, and VR editing. The system connects via Thunderbolt 3 (40Gbps), delivering transfer speeds up to 1700MB/s read and 1500MB/s write, enabling seamless real-time editing and rapid file transfers.
Built for reliability and flexibility, the G-RAID SHUTTLE 8 supports multiple RAID configurations (0, 1, 5, 6, 10, 50, 60) and ships ready to operate in RAID 5 for balanced performance and data protection. Each drive is removable and enterprise-class, allowing for easy maintenance and replacement without specialist intervention. The dual Thunderbolt 3 ports enable daisy-chaining of up to five additional devices, making it easy to expand your setup or connect multiple peripherals through a single computer connection.
Whether used in the studio or transported to on-location shoots, the G-RAID SHUTTLE 8 is backed by a comprehensive 5-year limited warranty, reflecting Western Digital's confidence in its durability and performance. It is compatible with macOS 11+ and Windows 10+ systems, making it a versatile solution for mixed-platform creative environments.
Specifications
| Brand | Western Digital |
|---|---|
| Model | G-RAID SHUTTLE 8 160TB |
| Product Type | External RAID Storage System |
| Total Capacity | 160TB |
| Drive Configuration | 8-bay hardware RAID |
| Drive Type | Enterprise-class Ultrastar hard drives |
| Drive Speed | 7200 RPM |
| Interface | Thunderbolt 3 and USB-C |
| Thunderbolt 3 Speed | 40Gbps |
| USB-C Speed | 10Gbps |
| Sequential Read Performance | Up to 1690MB/s (RAID 5) |
| Sequential Write Performance | Up to 1490MB/s (RAID 5) |
| RAID Modes Supported | RAID 0, 1, 5, 6, 10, 50, 60, JBOD |
| Connectivity | Dual Thunderbolt 3 ports, USB-C port |
| Daisy-Chain Capability | Up to 5 additional devices |
| Dimensions | 245mm (L) x 175mm (W) x 385mm (H) |
| Weight | 12.37kg |
| Operating System Compatibility | macOS 11+, Windows 10+ (via reformat) |
| Warranty | 5-year limited warranty |
| Certifications | FCC, ICES, CE, RCM, BIS, VCCI, KC, EAC, SABER, BSMI, UKCA |
Key Features
Ideal For
FAQs
What is the difference between RAID 5 and other RAID modes supported by the G-RAID SHUTTLE 8?
RAID 5 provides balanced performance and data protection, combining striping with parity across the eight drives. The G-RAID SHUTTLE 8 also supports RAID 0 (maximum speed, no redundancy), RAID 1 (full mirroring), RAID 6 (enhanced redundancy), RAID 10, RAID 50, RAID 60, and JBOD (single drive access). You can select the configuration that best suits your workflow and redundancy requirements.
Can I use the G-RAID SHUTTLE 8 with both Mac and Windows computers?
Yes. The system is compatible with macOS 11 and later natively. Windows 10 and later are supported via reformatting the drives to a Windows-compatible file system. You cannot simultaneously use the same drive set on both platforms without reformatting.
What is the benefit of Thunderbolt 3 over USB-C?
Thunderbolt 3 operates at 40Gbps compared to USB-C at 10Gbps, offering four times the bandwidth. This significantly faster connection speed is essential for real-time 4K and 8K video editing workflows, where sustained high data throughput is critical.
Can I daisy-chain multiple G-RAID SHUTTLE 8 units together?
Yes. The dual Thunderbolt 3 ports allow you to daisy-chain up to five additional Thunderbolt devices, including additional G-RAID SHUTTLE 8 units, through a single computer connection. This lets you expand your storage capacity while maintaining a clean, minimal cable setup.
Are the hard drives inside the G-RAID SHUTTLE 8 removable?
Yes. The eight Ultrastar enterprise-class hard drives are removable, allowing you to service, replace, or upgrade drives without requiring specialist assistance. This also provides flexibility for managing different drive configurations or archiving older drives.
What warranty and support does Western Digital provide?
The G-RAID SHUTTLE 8 comes with a comprehensive 5-year limited warranty covering hardware defects and failures. This extensive warranty reflects the enterprise-grade reliability built into the system and provides peace of mind for mission-critical content storage.
Is the G-RAID SHUTTLE 8 suitable for on-location video production?
Yes. The transportable design and robust construction make it ideal for on-location shoots. The Thunderbolt 3 connectivity provides fast backup and capture capabilities, whilst the enterprise-class drives ensure reliability in varied environments. The 5-year warranty also provides protection for frequent transport.
What video workflows does the G-RAID SHUTTLE 8 support?
The system supports multi-stream 4K, 8K, and VR video workflows. The high transfer speeds (up to 1700MB/s read) and large capacity enable simultaneous recording and playback of multiple video streams, essential for professional video production and real-time editing applications.
