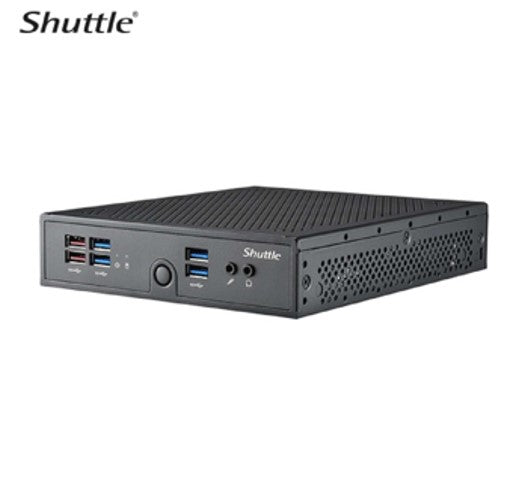

Shuttle DS50U XPC SLIM Fanless Barebone PC
Shuttle DS50U XPC SLIM Fanless Barebone PC
SKU:SYS-DS50U5
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Shuttle |
|---|---|
| Category | Systems - NUC/SFF/AIO |
| SKU | SYS-DS50U5 |
| Availability | Out of Stock |
Overview
- The Shuttle DS50U is a compact fanless barebone system designed for businesses requiring silent, reliable computing in space-constrained environments. Built around Intel's 13th Gen Raptor Lake-U architecture, it delivers efficient performance without moving parts, eliminating maintenance concerns and noise.
With support for up to 64GB DDR5 memory and flexible storage expansion via dual M.2 slots, the DS50U scales to meet demanding applications. Its triple display capability and dual Gigabit Ethernet ports make it ideal for multi-monitor setups and network-dependent deployments.
The system excels in IoT gateways, digital signage, automation control, and edge computing scenarios where fanless operation, compact form factor, and reliability are critical. Pre-certified for global markets and backed by a 36-month warranty, it offers a proven platform for mission-critical business applications.
Specifications
| Chassis | Shuttle 1.3L compact form factor |
|---|---|
| Processor | Intel Core i5-1335U (13th Gen Raptor Lake-U, 15W TDP) |
| Graphics | Integrated Intel Iris Xe (processor-dependent) |
| Memory Type | 2x 262-pin DDR5 SODIMM slots |
| Memory Capacity | Up to 64GB (32GB per DIMM) |
| Memory Speed | DDR5 up to 5200MHz dual-channel |
| Storage Interface - M.2 | 2x M.2 2280 Type M-Key, 1x M.2 2230 Type E-Key |
| Storage Interface - SATA | 1x 2.5-inch SATA connector for HDD/SSD |
| Video Output 1 | 1x HDMI 2.0b |
| Video Output 2 | 1x DisplayPort 1.4 |
| Video Output 3 | 1x VGA |
| Display Support | Triple independent displays |
| Audio | Realtek ALC888S, 2-channel HD audio |
| Ethernet 1 | 1x Intel Gigabit Ethernet (1GbE) |
| Ethernet 2 | 1x Intel 2.5 Gigabit Ethernet (2.5GbE) |
| Ethernet Features | Wake-on-LAN, teaming support |
| USB Ports - Front | 2x USB 3.2 Gen2, 4x USB 3.2 Gen1 |
| USB Ports - Rear | 2x USB 2.0 |
| Serial Port | 1x RS232/RS422/RS485 |
| Audio Connectors | 1x Mic In, 1x Headphone Out |
| Internal Headers | 1x USB 2.0, 1x Auto Power-On Jumper, 1x RS232 voltage switch, external 4-pin header |
| Power Consumption | 90W maximum |
| Power Supply | 19V/90W external adapter, 100-240V AC input |
| Thermal Design | Fanless (passive cooling) |
| Operating Temperature | 0°C to 40°C |
| Operating System Support | Windows 11, Linux |
| Cooling | Fanless design |
| Safety Certifications | CB, BSMI, cTUVus |
| EMI Certifications | FCC, CE, BSMI, RCM, VCCI, UKCA |
| Warranty | 36 months |
| Included Accessories | 90W adapter, power cord, VESA mount, VESA screws, food stand, thermal grease, HDD screws, quick user guide, DVD drivers |
Key Features
Ideal For
FAQs
What makes the Shuttle DS50U suitable for fanless operation?
The DS50U uses a low-power Intel Core i5-1335U processor (15W TDP) and passive thermal design with an efficient 1.3L aluminium chassis. This combination eliminates the need for fans, delivering silent operation ideal for office environments and sensitive deployments.
Can the DS50U support multiple monitors?
Yes. The DS50U features triple independent display outputs: HDMI 2.0b, DisplayPort 1.4, and VGA. This allows simultaneous connection to three monitors for multi-display applications such as digital signage and control room setups.
How much memory can the DS50U support?
The system has 2x DDR5 SODIMM slots supporting up to 64GB total memory (32GB per DIMM) running at DDR5-5200MHz dual-channel. This provides ample capacity for multitasking and data-intensive applications.
What storage expansion options are available?
The DS50U offers flexible storage via dual M.2 2280 slots (NVMe), one M.2 2230 E-Key slot, and a 2.5-inch SATA bay for traditional drives. This supports modern SSDs and legacy storage in a single compact system.
Is the DS50U suitable for industrial or IoT applications?
Yes. The fanless design, wide operating temperature range (0–40°C), dual Gigabit Ethernet with Wake-on-LAN, RS232/422/485 serial support, and compact form factor make it ideal for IoT gateways, edge computing, industrial automation, and remote deployments.
What operating systems does the DS50U support?
The system officially supports Windows 11 and Linux. DVD drivers are included for OS installation and device configuration.
Is this a barebone system?
Yes, the DS50U is a barebone unit. It includes the chassis, motherboard, and integrated power supply but requires separate memory, storage drives, and operating system installation. This allows customisation to specific application requirements.
