Shuttle DL40N XPC Fanless Mini PC Barebone
Shuttle DL40N XPC Fanless Mini PC Barebone
SKU:SYS-DL40N
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Shuttle |
|---|---|
| Category | Systems - NUC/SFF/AIO |
| SKU | SYS-DL40N |
| Availability | Out of Stock |
Overview

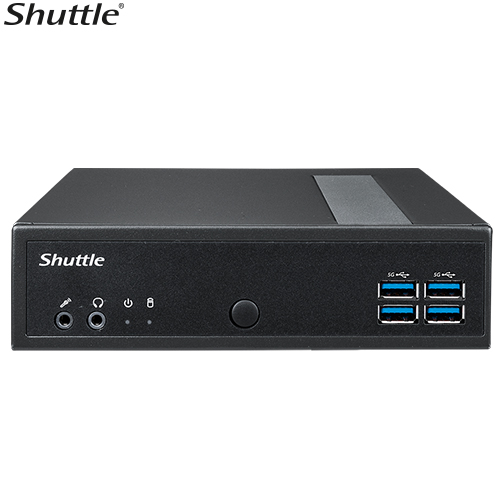

- The Shuttle DL40N is a fanless mini PC barebone system engineered for silent, maintenance-free operation in demanding business environments. Its ultra-compact 1.3L form factor houses an Intel N150 processor with up to 7W power consumption, making it ideal for applications where acoustic performance and reliability are critical.
With dual 2.5GbE networking, triple independent display outputs, and 8 USB ports, the DL40N provides enterprise-grade connectivity in a footprint smaller than a traditional external hard drive. The system supports DDR5 memory up to 16GB and includes M.2 expansion slots for flexible storage configuration.
Designed for 24/7 operation without moving parts, the fanless architecture eliminates cooling fan noise whilst reducing maintenance costs. The 65W power adapter and thermal design ensure reliable performance in temperature ranges from 0°C to 40°C, making it suitable for both indoor and temperature-controlled environments.
Specifications
| Processor | Intel N150 Twin Lake (4 cores, up to 7W) |
|---|---|
| Memory Support | DDR5 4800MHz SODIMM, maximum 16GB |
| Memory Type | SODIMM |
| Storage Interface | SATA for HDD/SSD |
| Storage Drive Bay | 1x 2.5-inch (9.5mm max height) HDD/SSD bay |
| M.2 Expansion | 1x M.2 Type M (2280), 1x M.2 Type E (2230) |
| Video Outputs | 1x HDMI 2.0b, 1x DisplayPort, 1x VGA |
| Display Support | Triple independent displays |
| Graphics | Intel integrated HD Graphic engine |
| Audio | 2-channel high-definition audio |
| Ethernet | 2x Intel 2.5GbE LAN (10Mb/s, 100Mb/s, 1Gb/s, 2.5Gb/s) |
| Wake-on-LAN | Supported |
| Front Ports | 4x USB 3.2 Gen1, 1x Mic-In, 1x Audio Out, 1x Power button, LED indicators |
| Rear Ports | 4x USB 3.2 Gen1, 1x RS232/RS422/RS485, 1x RS232, 1x DC power input, 2x Antenna holes |
| Serial Interfaces | 1x RS232/RS422/RS485, 1x RS232 |
| Form Factor | 1.3L ultra-compact slim |
| Dimensions | 190mm (L) x 165mm (W) x 43mm (H) |
| Power Supply | 65W external adapter, 19V/3.42A or 12V/5.42A DC output |
| Power Input | 100–240V AC |
| Operating Temperature | 0°C to 40°C |
| Operating System Support | Windows 11 64-bit, Ubuntu Linux |
| Cooling | Fanless design |
| Certifications | CB, BSMI, cTUVus, FCC, CE, RCM, VCCI, UKCA |
| Warranty | 36 months |
| Included Accessories | 65W power adapter, power cord, VESA bracket, VESA screw pack, screw pack, multilingual quick user guide, driver DVD |
Key Features
Ideal For
FAQs
Is the Shuttle DL40N a complete system or barebone?
The DL40N is a barebone system, meaning it does not include RAM, storage, or an operating system. You will need to add DDR5 memory, an HDD/SSD, and install your chosen OS (Windows 11 64-bit or Linux).
What is the maximum memory capacity?
The DL40N supports up to 16GB of DDR5 4800MHz SODIMM memory.
Can I connect multiple displays simultaneously?
Yes, the DL40N supports triple independent displays via HDMI 2.0b, DisplayPort, and VGA outputs, making it suitable for multi-monitor setups.
Why is fanless design important for my application?
Fanless design eliminates moving parts, resulting in silent operation, lower maintenance costs, improved reliability, and longer system lifespan—critical for 24/7 kiosk, retail, and industrial deployments.
What storage options does the DL40N support?
The system includes one 2.5-inch SATA bay for HDD/SSD, plus two M.2 slots (Type M 2280 and Type E 2230) for additional NVMe or SATA storage expansion.
What is the power consumption of the DL40N?
The Intel N150 processor consumes up to 7W. The system is powered by a bundled 65W adapter, suitable for fanless operation in most business environments.
Does the DL40N support Wake-on-LAN?
Yes, both 2.5GbE LAN ports support Wake-on-LAN (WOL), allowing remote power-on via network signal—useful for centralised management of multiple systems.
What certifications and warranty does it include?
The DL40N holds safety and EMI certifications (CB, BSMI, cTUVus, FCC, CE, RCM, VCCI, UKCA) and includes a 36-month manufacturer warranty.
