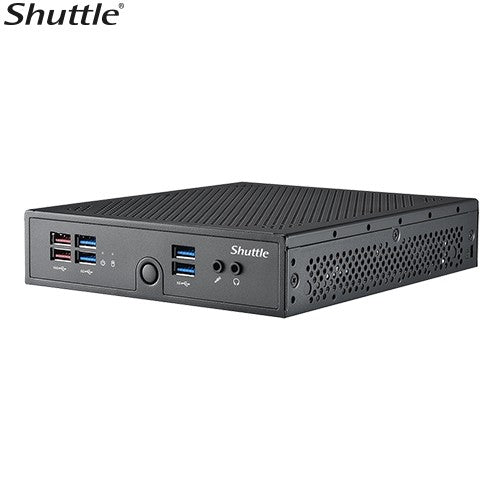

Shuttle DS50U Fanless Mini PC Barebone 1.3L
Shuttle DS50U Fanless Mini PC Barebone 1.3L
SKU:SYS-DS50U
The Shuttle DS50U is a fanless mini PC barebone designed for business applications and edge computing. Featuring Intel Celeron 7305 processor, DDR5-5200 memory support, dual M.2 slots, and triple display outputs, it delivers reliable performance in a compact 1.3-litre chassis for IoT, kiosks, and automation.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Shuttle |
|---|---|
| Category | Systems - NUC/SFF/AIO |
| SKU | SYS-DS50U |
| Availability | Out of Stock |
Overview
- The Shuttle DS50U is a compact, fanless mini PC barebone built for demanding business and industrial environments. At just 1.3 litres, it packs Intel Celeron 7305 Raptor Lake-U processing power, DDR5 memory, and a rich array of I/O connectors into a space-saving footprint. Its fanless design ensures silent operation, making it ideal for kiosks, surveillance, IoT gateways, and automation control systems where noise and reliability matter.
With support for up to 64 GB DDR5-5200 memory, dual M.2 NVMe slots, and triple independent displays (HDMI, DisplayPort, VGA), the DS50U handles multitasking and multi-display deployments effortlessly. The dual LAN configuration (1 GbE and 2.5 GbE) with Wake-on-LAN and teaming support provides robust network connectivity for business-critical applications.
The DS50U comes with a 90W power adapter, VESA mount, and a full three-year warranty. Its operating temperature range of 0–40 °C suits diverse deployment scenarios, while comprehensive certifications (CB, BSMI, cTUVus, FCC, CE, RCM) ensure compliance across global markets.
Specifications
| Brand | Shuttle |
|---|---|
| Model | DS50U |
| Form Factor | Shuttle 1.3L Chassis |
| Processor | Intel Celeron 7305 Raptor Lake-U |
| Processor Generation | 13th Gen Intel (Raptor Lake-U) |
| Graphics | Intel UHD Graphics (feature depends on processor SKU) |
| Memory Slots | 2 x 262-pin DDR5 SODIMM |
| Maximum Memory | 64 GB (32 GB per DIMM) |
| Memory Speed | DDR5-5200 MHz dual-channel |
| Storage Interfaces | SATA 6.0 Gb/s, NVMe |
| M.2 Slots | 2 x M.2 2280 Type M (NVMe) + 1 x M.2 2230 Type E (M-key socket) |
| 2.5 inch Drive Bay | 1 x 2.5 inch SATA HDD/SSD |
| Display Outputs | 1 x HDMI 2.0b, 1 x DisplayPort 1.4, 1 x VGA |
| Independent Displays | Triple independent display support |
| USB Ports Front | 2 x USB 3.2 Gen2 + 4 x USB 3.2 Gen1 |
| USB Ports Rear | 2 x USB 2.0 |
| Total USB Ports | 6 x USB 3.2 (Gen1/Gen2) + 2 x USB 2.0 |
| Ethernet Ports | 2 x RJ45 LAN (1 x Intel GbE, 1 x Intel 2.5 GbE) |
| Ethernet Features | Wake-on-LAN, Teaming support, 10/100/1000 Mbps operation |
| Serial Ports | 1 x RS232/RS422/RS485 |
| Audio | Realtek ALC888S, 2-channel HD Audio |
| Audio Connectors | 1 x Mic in, 1 x Headphone out |
| Additional Connectors | 1 x SATA 3.0, 1 x USB 2.0 header, 1 x Auto Power On jumper, 1 x RS232 voltage switch, 2 x External 4-pin headers |
| Front Panel Controls | 1 x Power button, Power LED, HDD LED |
| Rear Panel Features | Kensington lock, 2 x Antenna fixtures, Clear CMOS/Power Switch header (5V) |
| Cooling | Fanless (passive cooling) |
| Operating Temperature | 0 °C to 40 °C |
| Power Supply | 90W 19V DC adapter (input 100–240V AC) |
| Power Consumption | 90W maximum |
| Dimensions | 200 (L) × 165 (W) × 39.5 (H) mm |
| Net Weight | 1.6 kg |
| Gross Weight | 2.85 kg |
| Operating System Support | Windows 11, Linux |
| Safety Certifications | CB, BSMI, cTUVus |
| EMI Certifications | FCC, CE, BSMI, RCM, VCCI, UKCA |
| Warranty | 36 months |
| Included Accessories | 90W adapter, VESA mount, VESA screw pack, power cord, thermal grease, HDD screw pack, food stand, multilanguage quick user guide, XPC driver DVD |
Key Features
Ideal For
FAQs
What makes the DS50U suitable for fanless operation?
The DS50U uses passive cooling with a purpose-designed chassis that dissipates heat efficiently without requiring a fan. This fanless design ensures silent operation, making it ideal for noise-sensitive environments such as retail kiosks, offices, and medical facilities.
Can I upgrade the memory and storage?
Yes. The DS50U supports up to 64 GB of DDR5 memory via two SODIMM slots, and offers flexible storage expansion with two M.2 2280 NVMe slots, one M.2 2230 E-key slot, plus one 2.5-inch SATA bay. All upgradeable after purchase.
How many displays can I connect simultaneously?
The DS50U supports three independent displays concurrently via HDMI 2.0b, DisplayPort 1.4, and VGA connectors. This makes it excellent for multi-monitor digital signage, control room setups, and surveillance applications.
What are the networking capabilities?
The DS50U includes two Intel network adapters: one 1 GbE LAN and one 2.5 GbE LAN. Both support Wake-on-LAN and network teaming for redundancy and load balancing in business-critical deployments.
Is this a barebone system? What do I need to add?
Yes, the DS50U is sold as a barebone. You will need to add RAM (DDR5 SODIMM), storage (M.2 NVMe or 2.5-inch SATA drive), and an operating system. The 90W power adapter and VESA mount are included.
What is the power consumption of the DS50U?
The DS50U is rated for a maximum of 90W and comes with a 90W 19V DC power adapter. Typical consumption will be lower depending on processor load and peripherals connected.
Does it support legacy serial communications?
Yes. The DS50U includes a full RS232/RS422/RS485 serial port, making it compatible with legacy industrial equipment, point-of-sale terminals, and automation systems.
What is the warranty period?
The Shuttle DS50U includes a comprehensive 36-month (3-year) warranty covering hardware defects and failures.
