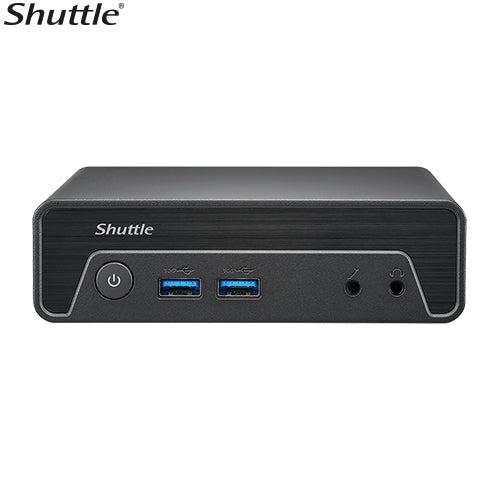

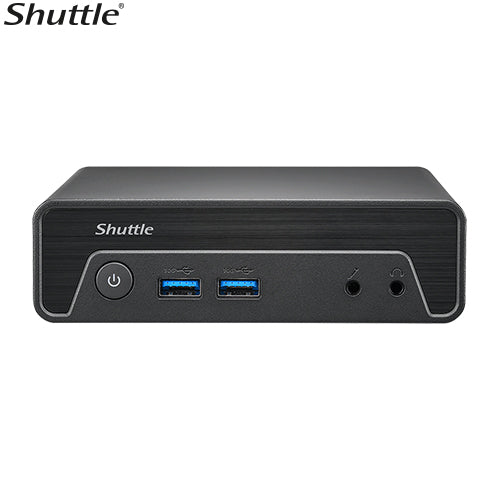

Shuttle NE10N Fanless Mini-PC Intel N100
Shuttle NE10N Fanless Mini-PC Intel N100
SKU:SYS-NE10N
The Shuttle NE10N is a compact 0.6-litre fanless mini-PC powered by Intel N100 processor, designed for space-constrained business environments. Featuring dual 4K display support, six USB ports, and M.2 SSD expansion, it delivers efficient performance for kiosks, digital signage, and office applications.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Shuttle |
|---|---|
| Category | Systems - NUC/SFF/AIO |
| SKU | SYS-NE10N |
| Availability | In Stock |
Overview
- The Shuttle NE10N is a palm-sized mini-PC engineered for business environments where space and power efficiency are critical. Its fanless design ensures silent operation, making it ideal for retail, hospitality, and office settings where noise must be minimised. Despite its compact 0.6-litre form factor, the NE10N packs substantial connectivity and expandability, with dual 4K display support, six USB ports, and M.2 SSD expansion.
Powered by Intel's energy-efficient Alder Lake-N processor (N100 variant with 6W TDP), the NE10N delivers responsive performance for everyday business tasks whilst consuming minimal power. The system supports Windows 11 and Linux, providing flexibility for diverse deployment scenarios. With integrated Gigabit Ethernet and comprehensive I/O, it serves as a versatile platform for digital signage, kiosks, POS terminals, automation control, and traditional office computing.
The included VESA mount allows flexible wall or stand mounting, whilst the low power consumption and fanless architecture reduce operational costs and maintenance requirements. The 36-month warranty reflects Shuttle's confidence in the system's reliability for continuous business operation.
Specifications
| Brand | Shuttle |
|---|---|
| Model | NE10N |
| Form Factor | 0.6-litre (Shuttle compact form factor) |
| Processor | Intel Processor N100 (Alder Lake-N, 6W TDP) |
| Graphics | Intel UHD Graphics |
| Memory | 1 x 260-pin SO-DIMM DDR4 3200MHz (maximum 16GB) |
| Storage Expansion | 1 x M.2 2280 slot (NVMe PCIe Gen 3 or SATA, up to 1TB) |
| Additional Storage Slot | 1 x M.2 2230 E-key slot |
| Display Output | 1 x DisplayPort, 1 x HDMI (dual 4K support) |
| Ethernet | 1 x RJ45 Gigabit (Motorcomm YT6801, 10/100/1000 Mbps) |
| Audio | Integrated audio controller (Senary SN6140-CNZR), microphone input, audio output |
| Front USB Ports | 2 x USB 3.2 Gen 2, 1 x Microphone input, 1 x Audio output |
| Rear USB Ports | 2 x USB 3.2 Gen 2, 2 x USB 2.0 |
| Power Input | 65W external power adapter (100-240V AC input, 19V 3.42A DC output) |
| Power Consumption | 6W (processor TDP) |
| Cooling | Fanless design |
| Dimensions | 135mm (W) x 115mm (D) x 39mm (H) [41.3mm with rubber feet] |
| Operating Temperature | 0°C to 40°C |
| Operating System Support | Windows 11, Linux |
| Accessories Included | Quick User Guide, VESA mount, VESA screw pack, 65W adapter with power cord, M.2 SSD thermal pad pack |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
Is the Shuttle NE10N fanless?
Yes, the NE10N features a fanless design with the Intel N100 processor. The 6W TDP and passive cooling ensure silent operation, making it ideal for retail, hospitality, and quiet office environments.
Can I connect multiple monitors to the NE10N?
Yes, the NE10N supports dual 4K displays simultaneously via DisplayPort and HDMI, allowing extended or mirrored display configurations.
What storage options are available?
The NE10N includes one M.2 2280 slot supporting NVMe PCIe Gen 3 or SATA SSDs up to 1TB, plus an additional M.2 2230 E-key slot for flexible storage expansion.
How much memory can I install?
The NE10N has one 260-pin SO-DIMM slot supporting DDR4 3200MHz memory, with a maximum capacity of 16GB.
What operating systems are supported?
The NE10N supports Windows 11 and Linux, providing flexibility for diverse business applications and deployment scenarios.
Is the NE10N suitable for 24/7 operation?
Yes, the NE10N is engineered for reliable continuous operation in business scenarios such as digital signage, retail kiosks, POS terminals, and automation control systems. The fanless design and low power consumption reduce maintenance and operational costs.
What connectivity options does the NE10N offer?
The NE10N provides 6 USB ports (2x USB 3.2 Gen 2 front, 2x USB 3.2 Gen 2 rear, 2x USB 2.0), Gigabit Ethernet, dual 4K display outputs, microphone input, and audio output.
Can the NE10N be wall-mounted?
Yes, a VESA mount is included in the package, allowing flexible wall or stand mounting for various deployment configurations.
