Alloy FCR200MT Fast Ethernet Media Converter
Alloy FCR200MT Fast Ethernet Media Converter
SKU:NHA-FCR200MT
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Alloy |
|---|---|
| Category | Network - Consumer |
| SKU | NHA-FCR200MT |
| Availability | In Stock |
Overview

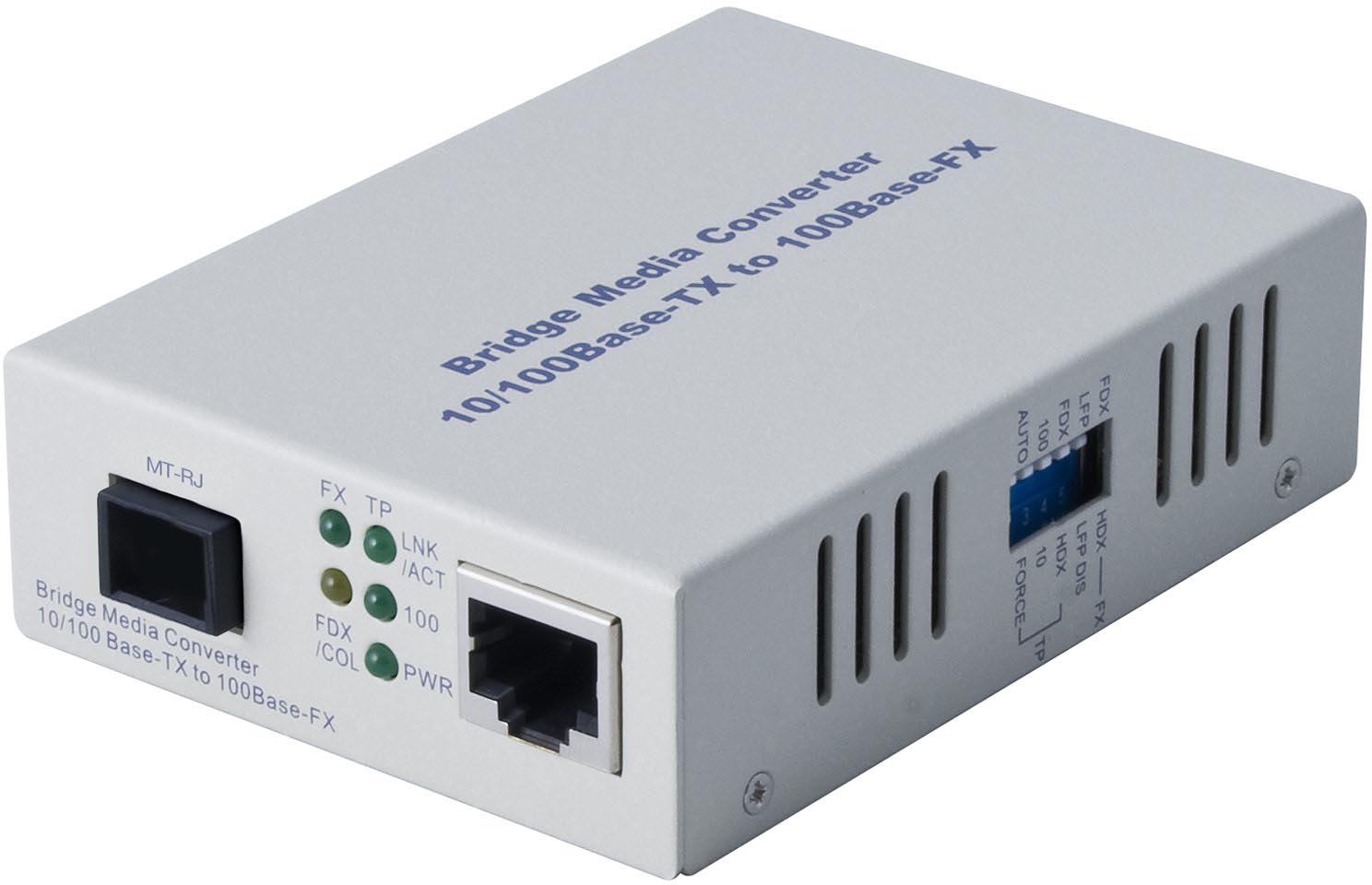

- The Alloy FCR200MT is a versatile Fast Ethernet media converter designed to bridge copper and multimode fibre networks. It converts 100Base-TX copper signals to 100Base-FX multimode fibre, supporting fibre runs up to 2km while maintaining copper connectivity up to 100 metres. The converter operates as a standalone unit or installs into an Alloy DCR12 Series media converter chassis, providing deployment flexibility for various network topologies.
Built for reliability in business-critical environments, the FCR200MT includes Link Fault Passthrough (LFP) functionality to maintain network visibility across copper and fibre segments. Its compact, rugged metal construction and dual power options—external plugpack or USB—make it suitable for diverse installation scenarios. The auto-sensing Ethernet port automatically detects 10Mbps or 100Mbps connections, simplifying network configuration and reducing setup complexity.
Specifications
| Copper Port | 100Base-TX RJ-45, auto-sensing 10/100Mbps |
|---|---|
| Fibre Port | 100Base-FX MT-RJ multimode |
| Copper Cable Range | Up to 100 metres |
| Fibre Cable Range | Up to 2 kilometres |
| Deployment Options | Standalone or DCR12 Series rackmount chassis |
| Link Fault Passthrough | Forced and Far-end Fault modes (LFP via FEF or FM) |
| Power Supply | External plugpack or USB connection |
| Casing | Compact, rugged all-metal construction |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
Can the FCR200MT be used standalone or does it require a chassis?
The FCR200MT is a dual-purpose converter. It can operate as a standalone discrete device for individual network segments, or install as a hot-swap module into any Alloy DCR12 Series 12-slot media converter chassis for centralised deployment.
What is the maximum distance the FCR200MT can transmit over fibre?
The FCR200MT supports multimode fibre runs up to 2 kilometres. The copper Ethernet side supports up to 100 metres via standard UTP or STP cabling.
What fibre connector types does the FCR200MT use?
The FCR200MT uses MT-RJ connectors on the fibre port. Other Alloy FCR200 Series models support LC, SC, and ST connectors depending on the specific model.
What is Link Fault Passthrough (LFP) and why is it important?
LFP monitors the status of both copper and fibre connections. When a fault is detected, the converter signals the issue across both segments using Forced and Far-end Fault modes, improving network troubleshooting and reducing downtime.
How is the FCR200MT powered?
The FCR200MT can be powered via an external plugpack or through a USB connection, providing flexibility for various installation environments and reducing the need for dedicated power infrastructure.
Is the FCR200MT suitable for hot-swapping in a chassis?
Yes. When installed in a DCR12 Series chassis, the FCR200MT supports 'Slide-in, Hot Swap' installation, allowing replacement or upgrades without powering down the entire system.
What is the difference between the FCR200MT and other FCR200 Series models?
The FCR200 Series includes models for different fibre types and wavelengths. The FCR200MT specifically converts to 100Base-FX multimode fibre. Other models support singlemode fibre at 1300nm or 1550nm, and different connector types (LC, SC, ST).
