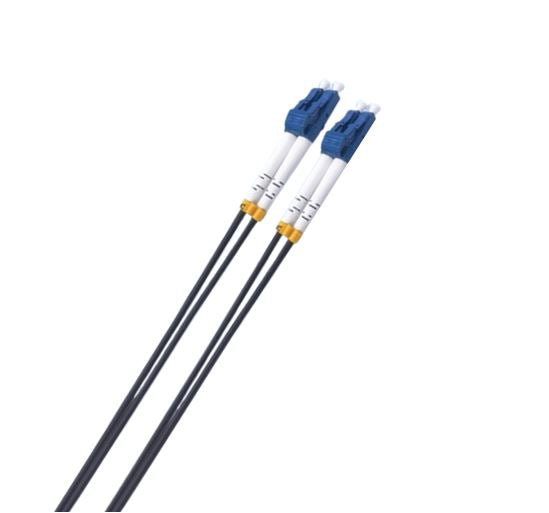

8ware 1.5m LC-LC OS2 Single Mode Fibre Optic Cable
8ware 1.5m LC-LC OS2 Single Mode Fibre Optic Cable
SKU:CB8W-LCUPCBLACK-1.5M
The 8ware 1.5m LC-LC OS2 single mode fibre optic cable delivers high-speed data transmission over longer distances with minimal signal loss. Featuring UPC polished connectors, armoured duplex construction, and LSZH jacket protection, it's ideal for enterprise networking and data centre environments.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | 8ware |
|---|---|
| Category | Cables |
| SKU | CB8W-LCUPCBLACK-1.5M |
| Availability | In Stock |
Overview
- The 8ware 1.5m LC-LC OS2 single mode fibre optic cable is engineered for high-performance data transmission in enterprise and telecommunications environments. Its OS2 single mode fibre supports data rates from 10 Mbps to 10 Gbps Gigabit Ethernet, delivering reliable connectivity over longer distances with significantly less signal degradation than copper alternatives.
The cable features LC-LC UPC polished connectors that minimise insertion loss and ensure optimal signal integrity. Its armoured duplex construction provides mechanical protection in demanding installations, whilst the Low Smoke Zero Halogen (LSZH) jacket meets fire safety requirements and reduces toxic emissions—essential for enclosed spaces and regulated environments.
With a compact 1.5m length, this cable is ideal for short runs between networking equipment, patch panels, and switches in data centres and enterprise networks. The professional black finish suits clean, modern installations.
Specifications
| Connector Type | LC-LC |
|---|---|
| Polish Type | UPC (Ultra Physical Contact) |
| Fibre Type | Single Mode (OS2) |
| Core Count | Dual-core (Duplex) |
| Cable Length | 1.5 metres |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Armoured | Yes |
| Colour | Black |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What is the difference between OS2 single mode and multimode fibre?
OS2 single mode fibre uses a smaller core diameter and is designed for long-distance, high-speed transmission with lower signal loss. Multimode fibre has a larger core and is better suited for shorter distances. Single mode supports higher bandwidths and longer reach, making it ideal for enterprise and telecom applications.
What does UPC polish mean and why does it matter?
UPC (Ultra Physical Contact) is a connector polishing standard that reduces insertion loss and reflection at the fibre interface. It provides lower loss compared to APC polish, making it suitable for applications requiring optimal signal integrity and minimal data degradation.
What is LSZH jacket and why is it important?
LSZH (Low Smoke Zero Halogen) jackets are fire-retardant and produce minimal smoke and toxic fumes when exposed to flame. They are required in enclosed spaces, buildings, and environments where fire safety and air quality are critical, such as data centres, hospitals, and aviation installations.
What does 'armoured' mean on a fibre optic cable?
Armoured construction adds a protective layer (typically steel or aluminium braid) around the cable to shield it from physical damage, abrasion, and external forces. This is essential in high-traffic areas, outdoor installations, or environments where the cable may be exposed to mechanical stress.
Is this cable suitable for outdoor use?
This cable is primarily designed for indoor installations. For outdoor use, consult with your network installer to ensure proper conduit protection and environmental sealing, as outdoor deployments require additional weather-resistant specifications.
What data speeds does this cable support?
The 8ware OS2 single mode fibre cable supports data transmission from 10 Mbps to 10 Gbps Gigabit Ethernet, depending on your equipment and network configuration.
Can I use this cable with different connector types?
This cable has LC-LC connectors on both ends. If you need different connector types (such as LC-SC or SC-SC), you will require a separate cable or adapter.
