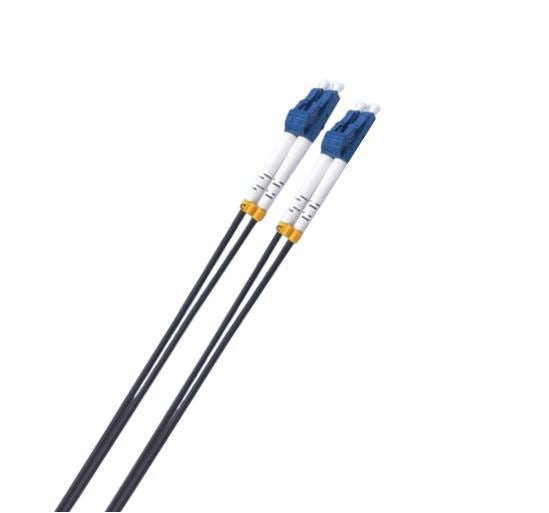

8ware 2m LC-LC OS2 Single Mode Fibre Optic Cable
8ware 2m LC-LC OS2 Single Mode Fibre Optic Cable
SKU:CB8W-LCUPCBLACK-2M
The 8ware CB8W-LCUPCBLACK-2M is a 2-metre OS2 single mode fibre optic patch cable designed for high-speed enterprise networking. Featuring LC-LC UPC connectors, armoured duplex construction, and LSZH jacket, it delivers reliable long-distance data transmission for data centres and telecom environments.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | 8ware |
|---|---|
| Category | Cables |
| SKU | CB8W-LCUPCBLACK-2M |
| Availability | In Stock |
Overview
- The 8ware 2m LC-LC OS2 single mode fibre optic cable is engineered for reliable high-speed data transmission in demanding enterprise and telecommunications environments. With OS2 single mode construction, it supports data rates from 10 Mbps to 10 Gbps Gigabit Ethernet over extended distances, making it an ideal replacement for copper-based patch leads where superior performance and longer range are required.
Featuring LC-LC UPC polished connectors, this cable minimises insertion loss and ensures optimal signal integrity. The armoured duplex design provides mechanical protection in high-risk or densely cabled environments, while the LSZH jacket delivers fire-retardant properties and reduces toxic emissions—a critical requirement for enclosed spaces, data centres, and facilities with strict safety standards.
The 2-metre length makes this cable perfectly suited for short-distance rack-to-rack connections, panel patching, and equipment interconnections within data centre and networking infrastructure. Its professional black finish integrates seamlessly into clean, modern network deployments.
Specifications
| Brand | 8ware |
|---|---|
| Model | CB8W-LCUPCBLACK-2M |
| Product Type | Fibre Optic Patch Cable |
| Connector Type | LC-LC |
| Polish Type | UPC (Ultra Physical Contact) |
| Fibre Type | Single Mode (OS2) |
| Core Count | Dual-core (Duplex) |
| Cable Length | 2 metres |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Armoured | Yes |
| Colour | Black |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What is the difference between OS2 single mode and multimode fibre?
OS2 single mode fibre is designed for long-distance, high-speed transmission with a smaller core diameter. It supports higher data rates over longer distances (10+ kilometres) compared to multimode fibre, making it ideal for enterprise and telecommunications networks. Single mode requires compatible equipment and is typically more cost-effective for long-distance runs.
What does UPC polishing mean, and why does it matter?
UPC (Ultra Physical Contact) polishing creates a curved, ultra-smooth connector end face that minimises air gaps and insertion loss when mated. This results in lower signal attenuation and higher signal integrity compared to APC (angled) connectors, making UPC the standard for most single mode applications.
Why is LSZH jacket important for data centre use?
LSZH (Low Smoke Zero Halogen) material is fire-retardant and releases minimal toxic smoke and corrosive gases when exposed to high temperatures. This makes it essential for enclosed spaces, data centres, and facilities where cable fires could pose safety risks or damage sensitive equipment.
What is an armoured fibre optic cable, and when do I need it?
Armoured fibre cables have a protective metal sheath around the fibre core, providing mechanical protection against crushing, abrasion, and external damage. Use armoured cables in high-traffic areas, outdoor runs, or environments where cables may be subjected to physical stress or impact.
Is this cable suitable for outdoor use?
While the LSZH jacket and armoured construction provide durability, this cable is primarily designed for indoor enterprise and data centre use. For outdoor installations, specialist outdoor-rated fibre cables with UV and weather protection are recommended.
Can I use this cable with my existing network equipment?
This cable is compatible with any network equipment featuring LC-LC single mode (OS2) connectors, such as fibre switches, routers, transceivers, and patch panels. Ensure your equipment supports single mode operation and that connector types match.
What warranty and support does 8ware provide?
The 8ware fibre optic cable includes a 12-month manufacturer warranty covering defects in materials and workmanship. Contact Hyetech Australia for warranty claims and technical support.
