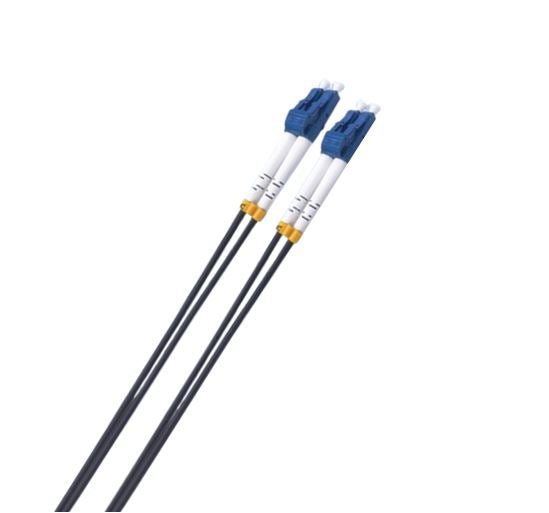

8ware 3m LC-LC OS2 Single Mode Fibre Optic Cable
8ware 3m LC-LC OS2 Single Mode Fibre Optic Cable
SKU:CB8W-LCUPCBLACK-3M
The 8ware CB8W-LCUPCBLACK-3M is a 3-metre OS2 single mode fibre optic patch cable designed for high-performance data transmission. Featuring LC-LC UPC connectors, armoured duplex construction, and LSZH jacket, it delivers reliable connectivity for enterprise networking and telecommunications infrastructure.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | 8ware |
|---|---|
| Category | Cables |
| SKU | CB8W-LCUPCBLACK-3M |
| Availability | In Stock |
Overview
- The 8ware LC-LC OS2 single mode fibre optic cable delivers high-performance data transmission over medium distances with minimal signal degradation. Engineered with OS2 single mode fibres, it supports data rates from 10 Mbit/s to 10 Gbit/s Gigabit Ethernet, making it suitable for mission-critical networking environments.
The cable features LC-LC UPC polished connectors that provide optimal signal integrity and low insertion loss, essential for reliable fibre-based connectivity. Its dual-core duplex design enables simultaneous bidirectional communication, while the armoured construction protects against mechanical stress in high-risk installations.
The Low Smoke Zero Halogen (LSZH) jacket provides critical fire-retardant properties and reduces toxic emissions when exposed to high temperatures, making it compliant with safety standards in enclosed spaces such as data centres, server rooms, and telecommunications facilities. The 3-metre length is ideal for short to medium rack-to-rack connections and patch panel applications.
Specifications
| Connector Type | LC-LC |
|---|---|
| Polish Type | UPC (Ultra Physical Contact) |
| Fibre Type | Single Mode (OS2) |
| Core Count | Dual-core (Duplex) |
| Cable Length | 3 metres |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Armoured | Yes |
| Colour | Black |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What is the difference between OS2 single mode and multimode fibre?
OS2 single mode fibre has a smaller core diameter and is designed for long-distance, high-speed transmission with minimal signal loss. Multimode fibre has a larger core and is suitable for shorter distances. OS2 supports higher bandwidth and longer distances, making it ideal for enterprise and telecommunications applications.
What does UPC mean, and why does it matter?
UPC (Ultra Physical Contact) refers to the polish type on the fibre connector. UPC connectors provide a more precise fit and lower insertion loss compared to standard polished connectors, ensuring better signal integrity and reliable connections in critical applications.
Why is LSZH jacket material important?
LSZH (Low Smoke Zero Halogen) jackets are fire-retardant and produce minimal toxic smoke when exposed to flames. This makes them essential for enclosed spaces like data centres, server rooms, and other environments where fire safety and air quality are priorities.
What is armoured fibre cable used for?
Armoured fibre cables have reinforced outer layers that protect against mechanical stress, abrasion, and physical damage. They are commonly used in high-risk environments such as industrial settings, outdoor installations, and areas with heavy equipment traffic.
Can this cable be used for both sending and receiving data simultaneously?
Yes. The dual-core duplex design means one core handles transmission while the other handles reception, enabling simultaneous bidirectional communication without signal interference.
What data rates does this cable support?
This OS2 single mode fibre cable supports data transmission from 10 Mbit/s up to 10 Gbit/s Gigabit Ethernet, making it suitable for both standard and high-performance networking applications.
Is this cable suitable for outdoor use?
The 8ware fibre optic cable is designed for indoor networking environments such as data centres and offices. For outdoor installations, consult the specifications for environmental ratings or ask for outdoor-rated alternatives.
