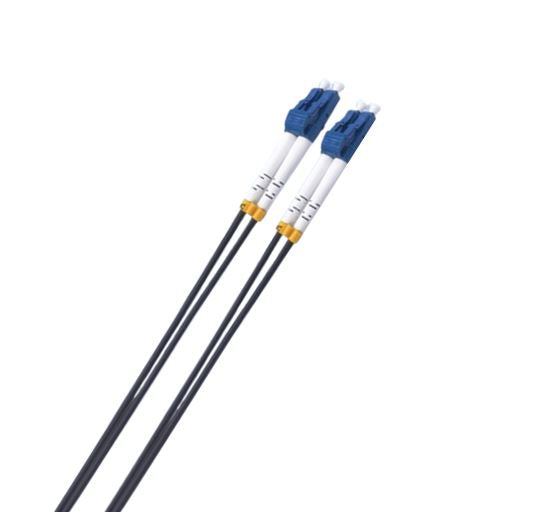

8ware 5m LC-LC OS2 Single Mode Fibre Optic Cable
8ware 5m LC-LC OS2 Single Mode Fibre Optic Cable
SKU:CB8W-LCUPCBLACK-5M
The 8ware CB8W-LCUPCBLACK-5M is a 5-metre LC-LC OS2 single mode fibre optic cable designed for high-speed data transmission over long distances. Featuring UPC polished connectors, armoured duplex construction, and LSZH jacket, it delivers reliable connectivity for enterprise networking and data centre infrastructure.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | 8ware |
|---|---|
| Category | Cables |
| SKU | CB8W-LCUPCBLACK-5M |
| Availability | In Stock |
Overview
- The 8ware 5m LC-LC OS2 fibre optic cable is engineered for high-performance data transmission in professional networking environments. This single mode duplex cable connects at speeds from 10 Mbps to 10 Gbps Ethernet, providing superior signal integrity over longer distances compared to traditional copper patch leads with minimal amplification requirements.
Constructed with armoured protection and a Low Smoke Zero Halogen (LSZH) jacket, this cable is ideal for enclosed spaces, high-security installations, and environments where fire safety is critical. The UPC polished LC connectors ensure optimal performance and minimal insertion loss, delivering reliable connectivity in enterprise data centres, telecommunications networks, and campus infrastructure.
The compact 5-metre length makes it suitable for rack-to-rack connections and short-distance runs within facilities, while the professional black finish complements modern enterprise deployments. With 12 months warranty coverage, this cable represents a cost-effective upgrade from copper-based solutions for organisations requiring long-distance fibre connectivity.
Specifications
| Brand | 8ware |
|---|---|
| Model | CB8W-LCUPCBLACK-5M |
| Product Type | Fibre Optic Cable |
| Cable Length | 5 metres |
| Connector Type | LC to LC |
| Polish Type | UPC (Ultra Physical Contact) |
| Fibre Type | Single Mode (OS2) |
| Core Count | Dual-core (Duplex) |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Armoured | Yes |
| Colour | Black |
| Supported Data Rates | 10 Mbps to 10 Gbps Ethernet |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What is the difference between OS2 single mode and multimode fibre?
OS2 single mode fibre is designed for long-distance, high-speed transmission with minimal signal loss. It uses a smaller core diameter and travels further than multimode fibre, making it ideal for data centres and telecommunications infrastructure. Multimode fibre is better suited for shorter distances.
What does UPC polishing mean, and why does it matter?
UPC (Ultra Physical Contact) polishing creates a slightly curved connector surface that minimises air gaps when mated. This reduces insertion loss and reflection, ensuring optimal signal integrity and reliable performance in high-speed networks.
Why choose an armoured fibre optic cable?
Armoured construction provides mechanical protection against physical damage, kinks, and crushing in high-risk environments. This extends cable lifespan and reduces installation failures in active data centre or industrial settings.
What is LSZH jacket material, and where is it required?
LSZH (Low Smoke Zero Halogen) jacket material produces minimal smoke and no toxic halogen gases when exposed to fire. It is required or recommended in enclosed spaces, buildings with restricted ventilation, and high-safety installations where fire compliance is critical.
Is this cable suitable for outdoor use?
This cable is designed for indoor use in data centres, telecommunications facilities, and enterprise networks. For outdoor applications, consult specifications for outdoor-rated fibre cables with UV and weather protection.
Can I use this cable with my existing network equipment?
Yes, provided your equipment has LC-compatible fibre ports and supports single mode OS2 connectivity. Verify compatibility with your network switches, routers, or fibre panels before purchase.
What is the warranty coverage?
This cable includes 12 months manufacturer warranty covering defects in materials and workmanship under normal use.
