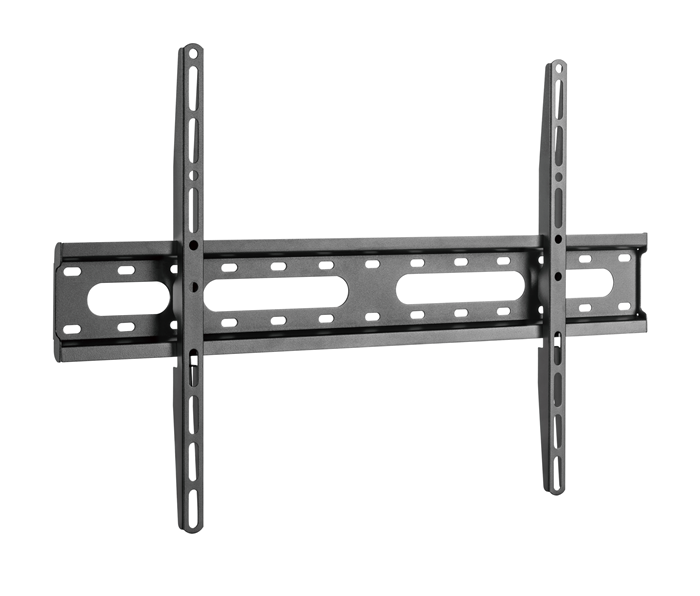

Brateck KL31-46F Fixed TV Wall Mount 37–80 inch
Brateck KL31-46F Fixed TV Wall Mount 37–80 inch
SKU:MABT-KL31-46F
The Brateck KL31-46F is a fixed TV wall mount designed for large-format displays from 37 to 80 inches. Featuring a sturdy steel construction with 45 kg weight capacity, VESA compatibility, and security screws, it delivers reliable mounting for commercial and residential installations.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-KL31-46F |
| Availability | In Stock |
Overview
- The Brateck KL31-46F is an economy fixed TV wall mount engineered for large displays ranging from 37 to 80 inches. With a robust 45 kg weight capacity and VESA-compatible mounting patterns, it provides a secure, stable installation suitable for both curved and flat-screen televisions.
Constructed from cold-rolled steel with a powder-coated fine texture black finish, this mount combines durability with a professional appearance. The compact 27 mm profile keeps installations flush to the wall, making it ideal for retail environments, corporate meeting spaces, and digital signage applications.
Security screws ensure the TV remains firmly attached to the wall plate, while the included bubble level assists with accurate installation. Compatibility with universal mounting patterns and solid wall or double-stud installation options provides flexibility across different building structures and display sizes.
Specifications
| Product Type | Fixed TV Wall Mount |
|---|---|
| Mount Type | Economy |
| Material | Cold-rolled steel |
| Surface Finish | Powder coating |
| Colour | Fine texture black |
| Screen Size Compatibility | 37–80 inches |
| Curved TV Compatible | Yes |
| Weight Capacity | 45 kg |
| VESA Patterns Supported | 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400 |
| Maximum Mounting Hole | 600x400 |
| Mounting Hole Pattern | VESA and universal |
| Profile Depth | 27 mm |
| Overall Dimensions | 635 × 420 × 27 mm |
| Wall Plate Type | Fixed |
| Panel Type | Detachable |
| Installation Surface | Solid wall, double stud (406 mm/450 mm/600 mm spacing) |
| Strength Testing | 4 times approved |
| Included Accessories | Hook-on bubble level |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What size screens does the Brateck KL31-46F support?
The KL31-46F supports screens from 37 to 80 inches in size, with a maximum weight capacity of 45 kg.
Is this mount suitable for curved televisions?
Yes, the KL31-46F is compatible with both flat and curved TV screens within the specified size and weight range.
What VESA mounting patterns are compatible?
The mount supports VESA patterns including 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, and 600x400, plus universal mounting holes.
Can this mount be installed on all wall types?
The KL31-46F can be installed on solid walls or double stud walls with 406 mm, 450 mm, or 600 mm spacing. Ensure your wall structure is suitable before installation.
What is included in the package?
The mount includes the wall plate, bracket arm, detachable panel, security screws, and a hook-on bubble level for accurate installation.
How much space does the mount protrude from the wall?
The KL31-46F has a compact 27 mm profile, keeping installations close and flush to the wall surface.
What warranty is provided?
The Brateck KL31-46F comes with a 36-month warranty covering manufacturing defects.
