Brateck Fixed TV Wall Mount 32-70 inch 75kg
Brateck Fixed TV Wall Mount 32-70 inch 75kg
SKU:MABT-LP72-44F

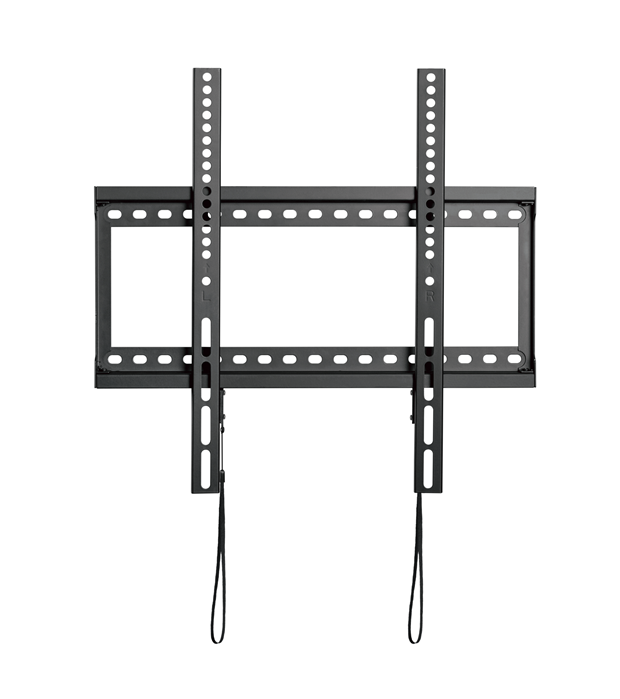

The Brateck LP72-44F is a fixed TV wall mount designed for screens 32–70 inches and up to 75kg. Featuring automatic spring locks with quick release, universal VESA compatibility, and open architecture for ventilation, it delivers secure installation and easy maintenance for offices and commercial spaces.
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-LP72-44F |
| Availability | In Stock |
Overview
- The Brateck LP72-44F is a fixed wall mount engineered for secure installation of large-screen displays in professional environments. Its universal VESA compatibility accommodates a wide range of screen sizes from 32 to 70 inches, with a robust 75kg weight capacity suitable for heavy commercial displays.
Key design features include automatic spring locks that allow quick and safe TV removal without tools, and an open architecture that maintains airflow around the display and provides easy access to cables and connections. The detachable VESA panel simplifies installation and maintenance.
Constructed from cold-rolled steel with a durable powder-coated finish, this mount is tested to withstand demanding commercial use. The compact 28mm profile minimises bulk, reducing shipping and storage costs—ideal for distributors and e-commerce sellers. With 60-month warranty protection, it represents a reliable long-term investment for businesses deploying multiple large displays.
Specifications
| Brand | Brateck |
|---|---|
| Model | LP72-44F |
| Product Type | Fixed TV Wall Mount |
| Screen Size Compatibility | 32–70 inches |
| Weight Capacity | 75kg (165lbs) |
| VESA Compatibility | 50x50, 75x75, 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 300x200, 200x400, 400x200, 300x300, 400x300, 350x350, 400x400mm |
| Curved TV Compatible | Yes |
| Material | Steel (cold-rolled) |
| VESA Panel Thickness | 1.5mm |
| Wall Plate Thickness | 1.5mm |
| Surface Finish | Powder coating |
| Colour | Fine texture black |
| Mount Profile Depth | 28mm |
| Overall Dimensions | 28 × 438 × 420mm |
| Panel Type | Detachable |
| Wall Plate Type | Fixed |
| Installation Surface | Solid wall, double stud (406mm centres) |
| Direction Indicator | Yes |
| Quick Release | Automatic spring locks with quick release cords |
| Strength Testing | 3 times approved |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
What screen sizes does the Brateck LP72-44F support?
The mount supports displays from 32 to 70 inches with a maximum weight capacity of 75kg. It is compatible with both flat and curved screens.
Is this mount compatible with my TV's VESA pattern?
Yes. The mount supports a comprehensive range of VESA patterns from 50x50mm up to 400x400mm, covering most modern displays. Check your TV's VESA specification against the compatible patterns listed in the technical specifications.
Can I remove the TV without tools?
Yes. The automatic spring locks with quick release cords allow you to safely detach your TV quickly and easily without additional tools.
What are the installation requirements?
The mount is designed for solid walls or double stud framing (406mm centres). Ensure your wall can support the combined weight of the mount and display before installation.
Why is the open architecture design beneficial?
The open design improves air circulation around the display, reducing heat buildup, and provides easy access to cables and connections for maintenance or updates.
What warranty coverage is included?
The Brateck LP72-44F comes with a 60-month (5-year) warranty covering manufacturing defects and workmanship.
Is the VESA panel detachable?
Yes. The detachable VESA panel simplifies installation and makes it easier to attach and remove your display.
