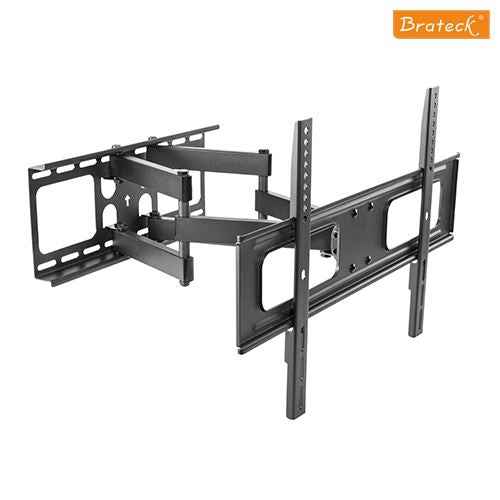

Brateck LPA36-466 Full Motion TV Wall Mount 37-70 Inch
Brateck LPA36-466 Full Motion TV Wall Mount 37-70 Inch
SKU:MABT-LPA36-466
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-LPA36-466 |
| Availability | In Stock |
Overview
- The Brateck LPA36-466 is a robust full-motion TV wall mount engineered for 37-70 inch curved and flat panel televisions up to 50kg. The mount delivers exceptional flexibility with ±60° swivel and ±20° tilt range, ensuring optimal viewing from any position in the room. A 510mm extension allows appropriate screen distance, while the integrated cable management system keeps connections neat and protected.
Strength-tested to three times approved capacity, this mount features heavy-duty steel construction with powder coating for durability. The universal VESA compatibility (200x200 to 600x400) accommodates most modern TV models. Post-installation level adjustment (±3°) enables perfect screen positioning after mounting, eliminating the need for remounting.
Designed for solid wall and standard stud installations (406mm and 450mm spacing), the LPA36-466 suits both residential and commercial environments. The detachable panel simplifies installation and maintenance, while the fixed wall plate provides secure, permanent mounting.
Specifications
| Brand | Brateck |
|---|---|
| Model | LPA36-466 |
| Product Type | Full Motion TV Wall Mount |
| Screen Size Range | 37-70 inches |
| Weight Capacity | 50 kg (110 lbs) |
| Material | Steel |
| Surface Finish | Powder coated |
| Extension from Wall | 510 mm (20.1 inches) |
| Dimensions | 510 × 660 × 430 mm |
| VESA Compatibility | 200×200, 300×300, 400×200, 400×400, 600×400 mm |
| Maximum VESA | 600×400 mm |
| Tilt Range | −20° to +10° |
| Swivel Range | −60° to +60° |
| Screen Level Adjustment | −3° to +3° |
| Wall Installation Types | Solid wall, double stud (406 mm), double stud (450 mm) |
| Panel Type | Detachable |
| Wall Plate Type | Fixed |
| Cable Management | Integrated |
| Load Testing | 3 times approved capacity |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
What TV sizes and weights does the Brateck LPA36-466 support?
The mount supports curved and flat panel TVs from 37 to 70 inches with a maximum weight capacity of 50 kg (110 lbs). It is compatible with universal VESA patterns from 200×200 to 600×400 mm.
How much does the mount extend from the wall?
The LPA36-466 extends 510 mm (20.1 inches) from the wall, providing adequate distance for comfortable viewing and ventilation behind the TV.
Can I adjust the TV angle after installation?
Yes. The mount features post-installation level adjustment that allows the screen to roll ±3° clockwise and counterclockwise, ensuring perfect alignment without remounting.
What installation options are available?
The mount fits solid walls and double stud installations at standard Australian spacing of 406 mm and 450 mm. The fixed wall plate provides secure permanent mounting.
Is the mount compatible with curved TVs?
Yes, the LPA36-466 is specifically designed to fit both curved and flat panel TVs within the 37-70 inch range and 50 kg weight limit.
What is the swivel and tilt range?
The mount offers ±60° swivel (left and right) and −20° to +10° tilt range, allowing flexible positioning for optimal viewing from any seat in the room.
Does the mount include cable management?
Yes, the LPA36-466 features an integrated cable management system to keep cables organised and protected behind the mounted TV.
What is the warranty period?
The Brateck LPA36-466 includes a 60-month (5-year) warranty covering manufacturing defects.
