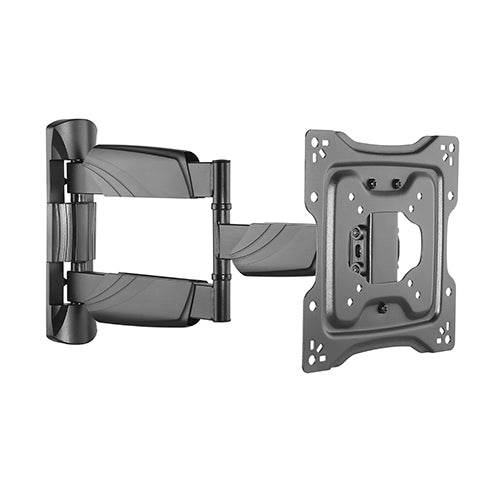

Brateck LPA50-223 Full-Motion TV Wall Mount 23-42 Inch
Brateck LPA50-223 Full-Motion TV Wall Mount 23-42 Inch
SKU:MABT-LPA50-223
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-LPA50-223 |
| Availability | In Stock |
Overview
- The Brateck LPA50-223 is a full-motion TV wall mount engineered for medium to large screens up to 42 inches. Its combination of free-tilting, swivelling, and levelling adjustments makes it one of the most flexible mounting solutions available, ensuring optimal viewing angles from any seat in the room.
Built from heavy-duty steel with powder-coated finish, the mount is strength-tested four times and supports loads up to 35kg. The swivelling arms rotate ±90° while the tilting mechanism allows ±5° forward and -15° backward adjustment, giving users complete control over screen positioning.
Installation is straightforward on solid walls or single stud framing. The detachable VESA panel accommodates standard mounting patterns, and integrated cable management keeps connections neat and professional. The 60-month warranty reflects Brateck's confidence in durability.
Specifications
| Product Type | Full-Motion TV Wall Mount |
|---|---|
| Screen Size Compatibility | 23 to 42 inches |
| Weight Capacity | 35kg (77lbs) |
| VESA Mounting Patterns | 75x75, 100x100, 200x100, 200x200mm |
| Material | Steel and plastic |
| VESA Panel Thickness | 1.8mm cold-rolled sheet |
| Wall Plate Thickness | 2.5mm pickling sheet |
| Pipe Dimensions | 40x20x1.5mm |
| Surface Finish | Powder coating |
| Colour | Fine texture black |
| Overall Dimensions | 224 × 292 × 510mm |
| Extension Range | 45–510mm from wall |
| Tilt Range | +5° to −15° |
| Swivel Range | ±90° |
| Levelling Adjustment | ±3° |
| Installation | Solid wall or single stud |
| Panel Type | Detachable |
| Wall Plate Type | Fixed |
| Cable Management | Yes |
| Curved TV Compatible | No |
| Certification | UL |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
What TV sizes does the Brateck LPA50-223 support?
The mount supports TVs from 23 to 42 inches with a maximum weight capacity of 35kg. Always verify your TV's VESA mounting pattern matches one of the four supported patterns: 75x75, 100x100, 200x100, or 200x200mm.
Is the LPA50-223 suitable for curved TVs?
No, this mount is designed for flat-screen TVs only and is not compatible with curved displays.
How much space does the mount extend from the wall?
The mount extends from 45mm to 510mm (approximately 2 to 20 inches) from the wall, allowing you to adjust the distance based on your viewing preferences and space constraints.
Can I tilt and swivel the TV once mounted?
Yes. The mount offers full-motion adjustment with ±90° swivel rotation, +5° to −15° tilt range, and ±3° levelling adjustments for precise positioning and viewing comfort.
What wall types can the mount be installed on?
The LPA50-223 is designed for installation on solid walls or single stud framing. Ensure your wall is strong enough to support the total weight of your TV and the mount itself.
Does the mount include cable management?
Yes, integrated cable management routes power and HDMI cables along the mount arms to keep your installation clean and organised.
What warranty does the Brateck LPA50-223 include?
The mount comes with a 60-month (5-year) warranty covering manufacturing defects and material failure.
Is installation difficult?
The mount features a detachable VESA panel that simplifies installation. Standard tools and wall anchors (appropriate for your wall type) are required. Professional installation is recommended for larger screens.
