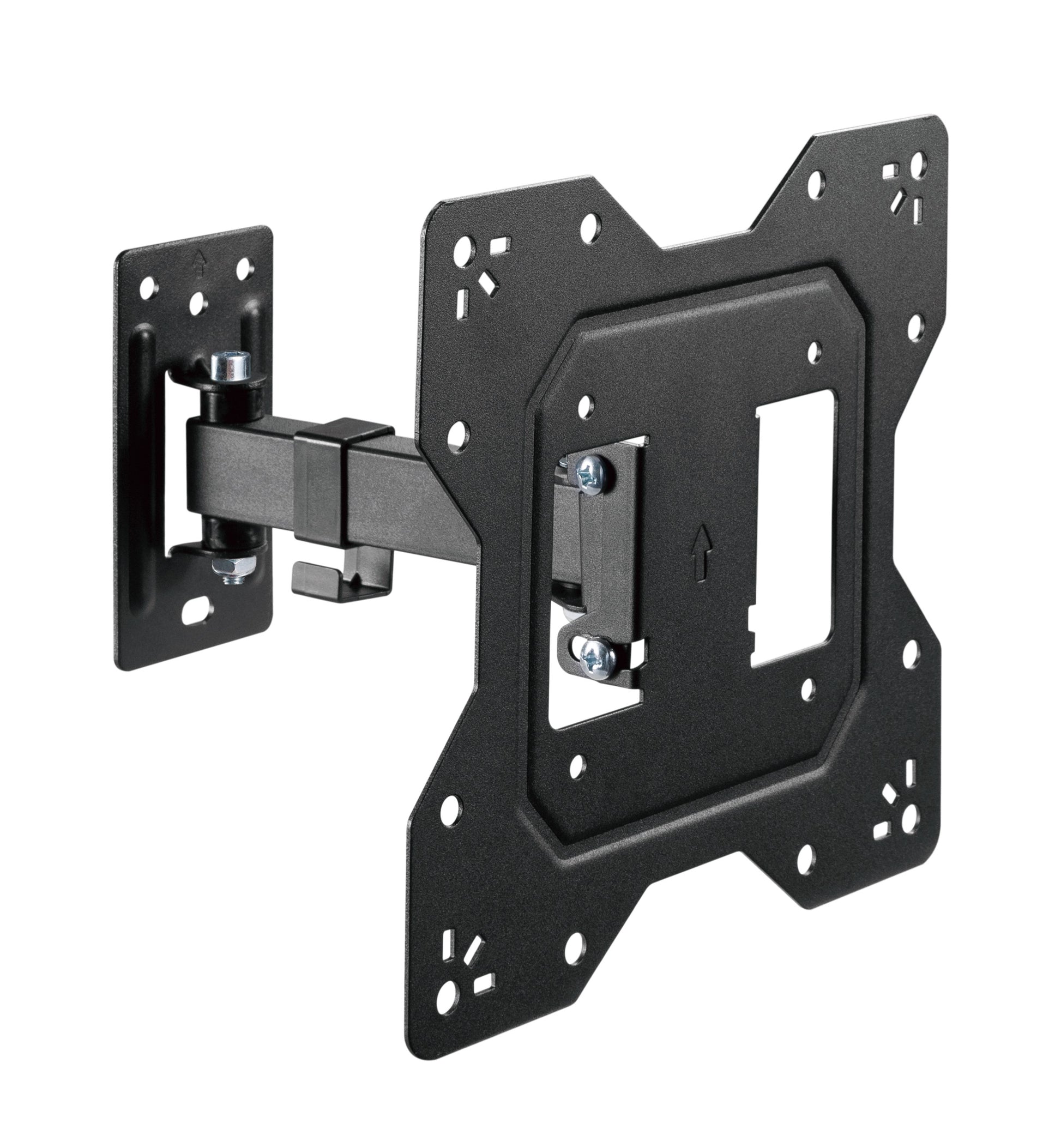

Brateck LPA68-221 Full-Motion TV Wall Mount 23–43 Inch
Brateck LPA68-221 Full-Motion TV Wall Mount 23–43 Inch
SKU:MABT-LPA68-221
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-LPA68-221 |
| Availability | In Stock |
Overview
- The Brateck LPA68-221 is an economical full-motion TV wall mount engineered for 23–43 inch displays, including curved screen models. Its combination of tilting and swivelling capabilities makes it ideal for spaces where viewing angles vary throughout the day.
The mount delivers practical flexibility through its ±90° swivel range and tilting adjustment, allowing you to eliminate glare and optimise sightlines from different positions in the room. The 30kg weight capacity supports most standard and curved flat-screen TVs in its size range.
Constructed from cold-rolled steel with a durable powder-coated finish, the mount features a detachable VESA panel for straightforward installation on solid walls or single studs. Integrated cable management keeps cords and connections neat and hidden behind the screen.
Specifications
| Product Type | Full-Motion TV Wall Mount |
|---|---|
| Screen Size Range | 23–43 inches |
| Curved TV Support | Yes |
| Weight Capacity | 30kg (66lbs) |
| VESA Patterns | 100×100, 100×200, 200×100, 200×200 |
| Maximum VESA | 200×200 |
| Material | Steel with powder-coated finish |
| VESA Panel Thickness | 1.8mm cold-rolled sheet |
| Wall Plate Thickness | 2.5mm pickling sheet |
| Pipe Dimensions | 30×20×1.2mm square steel tube |
| Dimensions | 230×230×204mm (width × height × depth) |
| Profile Extension | 56–204mm |
| Tilt Range | +5° to –8° |
| Swivel Range | ±90° (180° total) |
| Colour | Fine texture black |
| Wall Mounting | Solid wall, single stud installation |
| Panel Type | Detachable panel |
| Wall Plate Type | Fixed |
| Cable Management | Yes |
| Direction Indicator | Yes |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
What TV sizes does the Brateck LPA68-221 mount support?
This mount is compatible with 23–43 inch screens, including curved TVs. It supports VESA patterns of 100×100, 100×200, 200×100, and 200×200, so compatibility depends on your specific TV's mounting hole pattern.
What is the weight capacity?
The mount has a maximum weight capacity of 30kg (66lbs), suitable for most standard flat-screen and curved TVs in the 23–43 inch range.
How much can I adjust the viewing angle?
The mount provides tilting adjustment of +5° to –8° and a full ±90° swivel range (180° total), allowing you to position the screen for optimal viewing from different angles and positions in the room.
Is this mount suitable for curved televisions?
Yes, the LPA68-221 is specifically designed to support curved TVs up to 30kg. The full-motion design accommodates curved screen geometry.
What walls can I mount this on?
The mount is designed for installation on solid walls and single stud configurations. Ensure your wall can safely support the combined weight of the mount and your TV.
Does the mount include cable management?
Yes, the mount features integrated cable management to keep cables and connections organised and hidden behind the screen.
Is professional installation required?
While not strictly required, professional installation is recommended to ensure safe mounting on your specific wall type and to verify structural compatibility.
