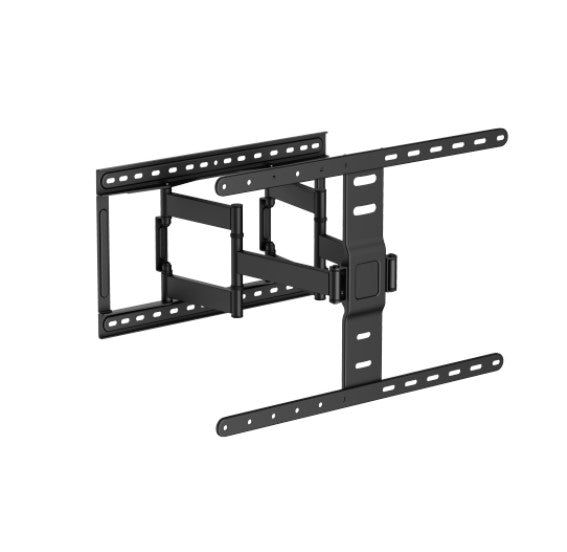

Brateck LPA83-466 Full-Motion TV Wall Mount 43–90 inch
Brateck LPA83-466 Full-Motion TV Wall Mount 43–90 inch
SKU:MABT-LPA83-466
The Brateck LPA83-466 is a full-motion TV wall mount designed for screens 43–90 inches. Featuring an ultra-slim design, 120-degree swivel range, and free-tilting capability, it delivers flexible viewing angles and space-saving storage for boardrooms, reception areas, and entertainment spaces.
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-LPA83-466 |
| Availability | In Stock |
Overview
- The Brateck LPA83-466 is a professional-grade full-motion TV wall mount engineered for large-format screens up to 90 inches. Built from powder-coated steel with robust 3.0mm bracket arms, it combines structural durability with elegant ultra-slim proportions, making it suitable for both commercial and residential installations.
The mount's full-motion design delivers maximum flexibility: a ±60-degree swivel range lets viewers find the perfect angle from any seat, while the free-tilting mechanism enables ±12-degree forward and backward adjustment to minimise glare and optimise sightlines. The folding arm feature saves valuable wall space when the screen is not actively in use, making it ideal for space-constrained environments.
Installation is straightforward on solid walls or double-stud framing, with universal VESA compatibility supporting patterns from 100x200 up to 600x400. The integrated cable management system keeps power, HDMI, and audio connections organised and out of sight. With a 60kg weight capacity and 4-times strength testing, the LPA83-466 delivers reliable, long-term performance in demanding commercial and residential settings.
Specifications
| Brand | Brateck |
|---|---|
| Model | LPA83-466 |
| Product Type | Full-Motion TV Wall Mount |
| Screen Size Compatibility | 43–90 inches |
| Weight Capacity | 60 kg (132 lbs) |
| VESA Compatibility | 100x200, 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 600x200, 400x400, 600x300, 600x400 |
| Maximum Mounting Hole Pattern | 602 x 400 mm |
| Material | Steel with powder-coat finish |
| Bracket Arm Thickness | 3.0 mm |
| VESA Panel Thickness | 2.5 mm |
| Wall Plate Thickness | 2.5 mm |
| Pipe Dimensions | 40 x 15 x 1.2 mm square steel tube |
| Surface Finish | Powder coating |
| Colour | Fine texture black |
| Swivel Range | ±60 degrees |
| Tilt Range | ±12 degrees (forward and backward) |
| Screen Level Adjustment | ±3 degrees |
| Profile (Extension Range) | 27–420 mm |
| Overall Dimensions | 420 x 509 x 632 mm |
| Curved TV Compatible | Yes |
| Cable Management | Integrated |
| Panel Type | Detachable |
| Wall Plate Type | Fixed |
| Installation Surface | Solid wall or double stud (406 mm / 450 mm) |
| Included Accessories | Bubble level |
| Warranty | 60 months |
| Strength Testing | 4-times approved |
Key Features
Ideal For
FAQs
What TV sizes does the Brateck LPA83-466 support?
The LPA83-466 fits screens from 43 to 90 inches. It is compatible with universal VESA patterns up to 600x400 mm, covering most modern flat-screen and curved TVs in this size range.
How much weight can the LPA83-466 hold?
The mount has a maximum weight capacity of 60 kg (132 lbs). It has been tested and approved 4 times to ensure reliable performance under rated load.
Can the LPA83-466 be used with curved TVs?
Yes, the LPA83-466 is compatible with curved TV screens, making it suitable for a wide range of modern display technologies.
What is the swivel and tilt range?
The mount offers ±60 degrees of swivel (left and right) and ±12 degrees of tilt (forward and backward), plus ±3 degrees of screen levelling to ensure optimal viewing angles and reduce glare.
How much space does the mount take up when not in use?
The folding arm design allows the screen to retract against the wall, with a profile range of 27–420 mm. This saves valuable space in areas where the screen is not always in use.
Is installation difficult?
No. The mount is designed for easy assembly and can be installed on solid walls or double-stud framing (406 mm or 450 mm spacing). A bubble level is included to ensure accurate positioning.
Does the LPA83-466 manage cables?
Yes, integrated cable management keeps power cords, HDMI, and audio connections organised and hidden behind the mount, maintaining a clean appearance.
What warranty is provided?
The Brateck LPA83-466 comes with a 60-month (5-year) warranty, providing long-term protection and peace of mind for your investment.
