Antec FLUX PRO Full Tower E-ATX PC Case
Antec FLUX PRO Full Tower E-ATX PC Case
SKU:CAA-FLUX-PRO-BK

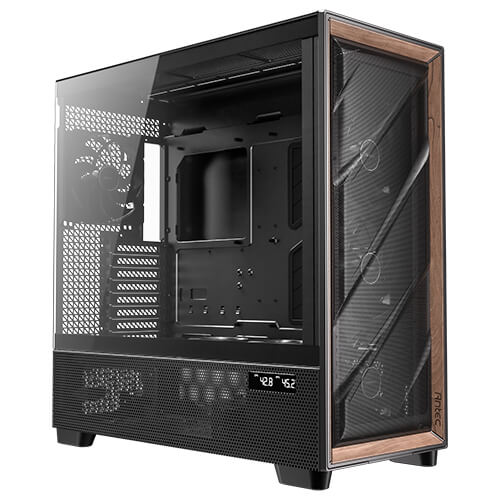

The Antec FLUX PRO is a premium full-tower E-ATX case featuring integrated CPU and GPU temperature displays, premium walnut trim, and six high-performance fans with ARGB controls. Designed for enthusiast builders and high-end gaming workstations requiring extensive cooling and expansion.
Couldn't load pickup availability
- See our return policy
- 2 years Manufacturer Warranty
Product Information
| Brand | Antec |
|---|---|
| Category | Cases & Accessories |
| SKU | CAA-FLUX-PRO-BK |
| Availability | In Stock |
Overview
- The Antec FLUX PRO is a premium full-tower case engineered for high-performance builds and enthusiast system builders. With support for E-ATX motherboards and generous component clearances, it accommodates even the most demanding hardware configurations including large graphics cards, tall CPU coolers, and extended power supplies.
The standout feature is the integrated Iunity temperature display, which provides real-time monitoring of CPU and GPU temperatures directly on the case front panel. This gives builders and users instant visibility into system thermals without software. Combined with six pre-installed PWM fans and comprehensive ARGB lighting control, thermal management is simplified and visually impressive.
The case is built with premium materials including steel, plastic, tempered glass, and distinctive walnut trim accents. Radiator support across multiple mounting points (front, top, rear, and PSU shroud) makes it ideal for custom water-cooling loops. Eight expansion slots and eight total drive bays provide flexibility for storage-intensive workstations and multi-drive configurations.
The PSU shift connector and dedicated power supply shroud help manage cable clutter while protecting the power supply. A bottom dust filter and well-designed airflow paths support long-term system cleanliness and stable operation.
Specifications
| Form Factor | Full Tower |
|---|---|
| Motherboard Support | E-ATX (≤285mm), ATX, Micro-ATX, ITX |
| Dimensions (DWH) | 530 × 245 × 545 mm |
| Materials | Steel, plastic, glass, wood trim |
| Side Panel | 4mm tempered glass |
| Expansion Slots | 8 |
| Drive Bays (3.5" / 2.5") | 4 / 4 |
| Additional 2.5" Bays | 2 |
| Front Fans (Pre-installed) | 3 × 140mm Tranquil PWM |
| PSU Shroud Fans (Pre-installed) | 2 × 120mm P12R PWM reverse |
| Rear Fan (Pre-installed) | 1 × 140mm Tranquil PWM |
| Front Radiator Support | 120 / 140 / 240 / 280 / 360 / 420mm |
| Top Radiator Support | 120 / 140 / 240 / 280 / 360 / 420mm |
| PSU Shroud Radiator Support | 120 / 240 / 360mm |
| Bottom Radiator Support | 120 / 240mm |
| Rear Radiator Support | 120 / 140mm |
| Max GPU Length | ≤455mm |
| Max CPU Cooler Height | ≤190mm |
| Max PSU Length (with cable, with HDD) | ≤300mm |
| Max PSU Length (with cable, without HDD) | ≤470mm |
| Max PSU Length (without cable, side mount) | ≤180mm |
| Front I/O | Power button, Reset button, USB 3.0 × 2, USB Type-C 10Gbps × 1, 3.5mm audio combo jack, Temperature display switch |
| Dust Filters | Bottom |
| Net Weight | 13.60 kg |
| Gross Weight | 16.65 kg |
| Warranty | 2 years |
Key Features
Ideal For
FAQs
What motherboard sizes does the FLUX PRO support?
The FLUX PRO supports E-ATX (up to 285mm), standard ATX, Micro-ATX, and ITX motherboards, making it compatible with most modern gaming and workstation boards.
How many fans are included with the case?
The FLUX PRO comes pre-installed with six PWM fans: three 140mm fans on the front, two 120mm reverse fans on the PSU shroud, and one 140mm fan on the rear. All are controlled via the included ARGB PWN controller.
Can I install a large graphics card in this case?
Yes. The case supports graphics cards up to 455mm in length, accommodating most high-end dual and triple-fan GPUs currently available.
What is the Iunity temperature display?
The Iunity temperature display is an integrated front-panel screen that shows real-time CPU and GPU temperatures, allowing users to monitor system thermals at a glance without software.
Does the FLUX PRO support water cooling?
Yes. The case offers extensive radiator support: front (up to 420mm), top (up to 420mm), PSU shroud (up to 360mm), bottom (up to 240mm), and rear (up to 140mm), making it ideal for custom water-cooling builds.
What is the maximum CPU cooler height?
The FLUX PRO supports CPU coolers up to 190mm in height, which accommodates most popular tower coolers and some AIO pump heads.
How much storage capacity does it offer?
The case includes eight drive bays: four 3.5-inch, four 2.5-inch, and two additional 2.5-inch bays, supporting up to ten storage drives total.
What is included in the box?
The FLUX PRO includes the case, six pre-installed PWM fans, an ARGB PWN controller, and front-panel I/O connections. Power supply is not included.
