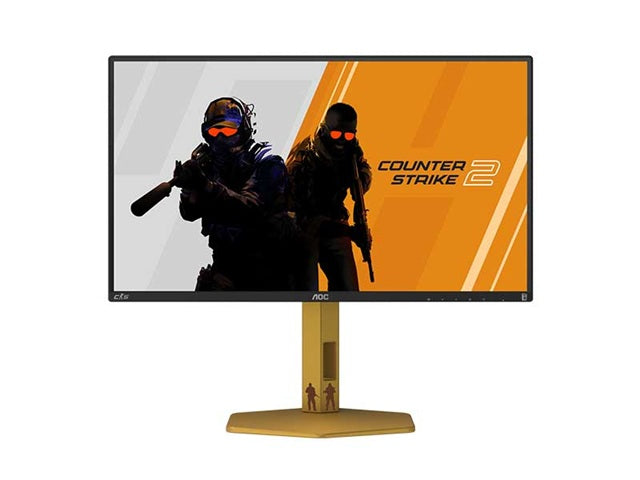

AOC CS24A/P 24.1" 610Hz Gaming Monitor
AOC CS24A/P 24.1" 610Hz Gaming Monitor
SKU:MNAO-CS24AP
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | AOC |
|---|---|
| Category | Monitors |
| SKU | MNAO-CS24AP |
| Availability | In Stock |
Overview
- The AOC CS24A/P is a purpose-built competitive gaming monitor engineered for esports excellence. With a groundbreaking 610Hz refresh rate, this 24.1" Fast TN panel delivers the smoothest, most responsive gameplay available, giving competitive gamers a measurable advantage in fast-paced titles like Counter-Strike 2. The 0.5ms response time combined with G-Sync compatibility and ultra-low input lag ensures every action is rendered with pinpoint precision.
Designed specifically for professional players, the CS24A/P features HDR400 support, a 99% sRGB colour gamut, and dedicated CS Mode optimisations. The fully adjustable ergonomic stand provides comfort during extended competitive sessions, while dual HDMI 2.1 and DisplayPort 1.4 inputs support future-proof connectivity. RGB Light FX and bold esports styling complete a monitor built for domination.
With a 36-month warranty and 50,000-hour MTBF rating, the CS24A/P is a reliable investment for serious gamers and esports organisations demanding next-level performance.
Specifications
| Brand | AOC |
|---|---|
| Model | CS24A/P |
| Product Type | Gaming Monitor |
| Panel Size | 24.1 inches |
| Panel Type | Fast TN LCD (E-Sport) |
| Native Resolution | 1920 × 1080 |
| Maximum Refresh Rate | 610Hz |
| Response Time (GtG) | 0.5ms |
| Response Time (MPRT) | 0.3ms |
| Input Lag | Ultra-low (Yes) |
| Brightness (Peak HDR) | 500 cd/m² |
| Brightness (Typical) | 350 cd/m² |
| Contrast Ratio | 1000:1 (Typical) / 80,000,000:1 (MEGA DCR) |
| Colour Gamut | sRGB 99% (CIE1931) / DCI-P3 90% (CIE1976) |
| Colour Accuracy | Delta E < 2 |
| Colours Supported | 16.7 Million |
| Aspect Ratio | 16:9 |
| Viewing Angle (H/V) | 176° / 170° (CR > 5) |
| HDR Support | HDR400 |
| Sync Technology | G-Sync Compatible |
| Connectivity | HDMI 2.1 × 2 (HDR), DisplayPort 1.4 × 1 (HDR) |
| USB Ports | USB 3.2 Gen1 × 4 |
| Audio | 3.5mm Earphone output |
| Height Adjustment | 130mm |
| Pivot | 90° (±90°) |
| Swivel | ±30° |
| Tilt | −5° to 23° |
| VESA Mount | 100mm × 100mm |
| Power Consumption (Max) | 107W |
| Power Consumption (Typical) | 30W |
| Standby Power | 0.5W |
| Power Supply | Internal 100–240V, 1.5A, 50/60Hz |
| Dimensions (without Stand) | 331.4 (H) × 557.0 (W) × 73 (D) mm |
| Dimensions (with Stand) | 380.8–489.8 (H) × 557.0 (W) × 240 (D) mm |
| Weight (without Stand) | 3.75 kg |
| Weight (with Stand) | 5.03 kg |
| Operating Temperature | 0° to 40°C |
| Operating Humidity | 10% to 85% |
| Storage Temperature | −20° to 55°C |
| Storage Humidity | 5% to 93% |
| MTBF | 50,000 hours |
| Warranty | 36 months |
| Certifications | CE, FCC, RoHS |
| Compliance | VESA DDC2B/CI, Windows 10/11 compatible |
| Colour | Black & Gold |
| Special Features | CS Mode, CS Light, Boot-up Logo, PBP/PIP support |
Key Features
Ideal For
FAQs
What refresh rate does the AOC CS24A/P support?
The CS24A/P supports a maximum refresh rate of 610Hz via DisplayPort 1.4 with DSC or HDMI 2.1, making it one of the fastest gaming monitors available for competitive esports.
Is the AOC CS24A/P G-Sync compatible?
Yes, the CS24A/P features G-Sync compatibility, which synchronises the monitor's refresh rate with your NVIDIA graphics card to eliminate screen tearing and stuttering during gameplay.
What is the response time of this monitor?
The CS24A/P offers 0.5ms GtG (grey-to-grey) and 0.3ms MPRT response time, delivering ultra-low input lag essential for competitive gaming.
Does the CS24A/P support HDR?
Yes, the monitor supports HDR400 with a peak brightness of 500 cd/m² and a 99% sRGB colour gamut, providing enhanced contrast and colour accuracy for supported games and applications.
What connectivity options are available?
The CS24A/P includes 2× HDMI 2.1 ports (HDR), 1× DisplayPort 1.4 (HDR), 4× USB 3.2 Gen1 ports, and a 3.5mm audio output for comprehensive device connectivity.
Is the stand adjustable?
Yes, the ergonomic stand offers 130mm height adjustment, 90° pivot, ±30° swivel, and −5° to 23° tilt for optimal positioning during extended gaming sessions.
What warranty is included?
The AOC CS24A/P comes with a 36-month manufacturer's warranty and a 50,000-hour MTBF (Mean Time Between Failures) rating for reliable long-term performance.
Can this monitor be wall-mounted?
Yes, the CS24A/P supports 100mm × 100mm VESA wall mounts, allowing flexible mounting options if you prefer to remove the included stand.
