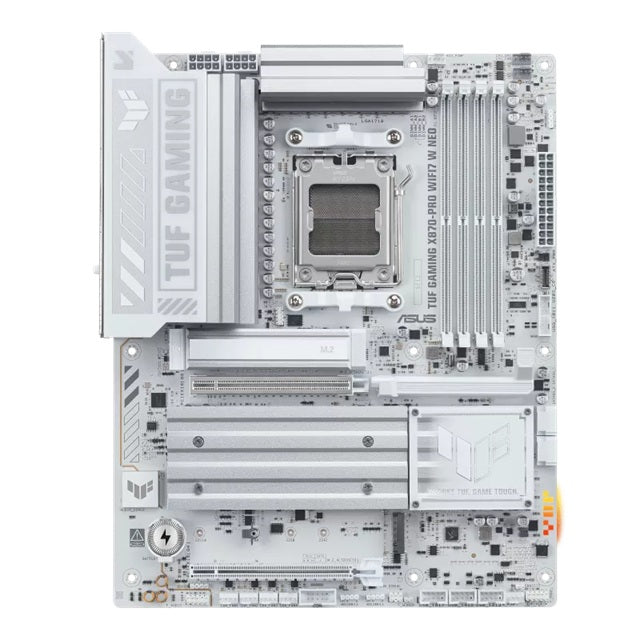

ASUS TUF GAMING X870-PRO WIFI7 Motherboard
ASUS TUF GAMING X870-PRO WIFI7 Motherboard
SKU:MBA-X870-PRO-WF7-W-NEO
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | ASUS |
|---|---|
| Category | Motherboards |
| SKU | MBA-X870-PRO-WF7-W-NEO |
| Availability | In Stock |
Overview
- The ASUS TUF GAMING X870-PRO WIFI7 W NEO is a premium ATX motherboard built on the AMD X870 chipset for next-generation Ryzen processors. It combines cutting-edge connectivity—including Wi-Fi 7, 5GbE, and dual USB4 ports—with enterprise-class reliability through TUF durability standards.
This motherboard excels in performance-demanding applications. PCIe 5.0 connectivity delivers maximum bandwidth for graphics cards and NVMe storage, whilst quad M.2 slots support rapid multi-drive configurations. The 256GB DDR5 capacity and EXPO support enable enthusiasts to leverage the latest memory technologies.
Built for gamers, creators, and overclockers, the TUF GAMING X870-PRO WIFI7 provides the stability and speed required for competitive gaming, professional content creation, and complex workloads. The three-year warranty reflects ASUS's commitment to long-term reliability and customer support.
Specifications
| CPU Socket | AMD Socket AM5 (Ryzen 9000, 8000, 7000 series) |
|---|---|
| Chipset | AMD X870 |
| Form Factor | ATX (30.5 cm × 24.4 cm) |
| Memory Slots | 4 × DIMM |
| Max Memory | 256GB DDR5 |
| Memory Speed | Up to 8600+ MT/s (Ryzen 9000), 9600+ MT/s (Ryzen 8000), 8000+ MT/s (Ryzen 7000) with overclocking |
| Memory Features | EXPO support, DIMM Fit Pro, NitroPath DRAM, AEMP |
| PCIe Slot 1 | PCIe 5.0 x16 (CPU-connected) |
| PCIe Slot 2 | PCIe 4.0 x16 (x4 mode, chipset-connected) |
| M.2 Slots | 4 × M.2 (Key M) |
| M.2_1 Speed | PCIe 5.0 x4 (2280) |
| M.2_2 Speed | PCIe 5.0 x4 (2280) |
| M.2_3 Speed | PCIe 4.0 x4 (2280) |
| M.2_4 Speed | PCIe 4.0 x4 (2242/2260/2280/22110) |
| SATA Ports | 2 × SATA 6Gb/s |
| RAID Support | RAID 0/1/5/10 via AMD RAIDXpert2 |
| Ethernet | 1 × Realtek 5Gb Ethernet (TUF LANGuard) |
| Wi-Fi | Wi-Fi 7 |
| Bluetooth | Bluetooth 5.4 |
| USB4 | 2 × USB4 (40Gbps) with Type-C display output |
| Video Output | 1 × HDMI, USB4 display support |
| BIOS | 64MB Flash ROM, UEFI AMI |
| Operating System | Windows 11 |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What processors are compatible with this motherboard?
The ASUS TUF GAMING X870-PRO WIFI7 supports AMD Ryzen 9000, 8000, and 7000 series desktop processors on the AM5 socket. Refer to the ASUS support website for the complete CPU compatibility list.
Does this motherboard support PCIe 5.0?
Yes. The primary PCIe x16 slot supports PCIe 5.0 for Ryzen 9000 and 7000 series processors. Ryzen 8000 series uses PCIe 4.0. The motherboard also includes two PCIe 5.0 M.2 slots (M.2_1 and M.2_2) for fast NVMe storage.
How much DDR5 memory can this board support?
The motherboard has four DIMM slots supporting up to 256GB of DDR5 memory. It supports EXPO profiles for optimised performance with compatible memory modules across various Ryzen generations.
Can I use both USB4 ports and the M.2_2 slot simultaneously?
The USB4 ports share bandwidth with the M.2_2 slot. You can switch M.2_2 to x4 mode in the BIOS, but this will disable the USB4 ports. By default, M.2_2 runs at x2 mode to allow both to function.
What wireless connectivity options are available?
The motherboard features Wi-Fi 7 for ultra-fast wireless connectivity and Bluetooth 5.4 for wireless peripherals. It also includes a 5Gb Ethernet port with TUF LANGuard protection for wired connections.
Is RAID supported on this motherboard?
Yes. The motherboard supports RAID 0, 1, 5, and 10 via AMD RAIDXpert2 technology across the SATA and M.2 storage devices.
What is the warranty period?
The ASUS TUF GAMING X870-PRO WIFI7 W NEO includes a 36-month (3-year) manufacturer warranty covering defects in materials and workmanship.
