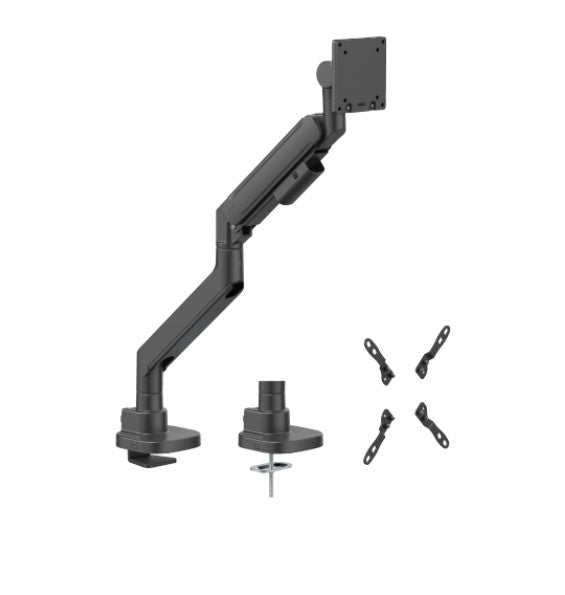

Brateck LDT87-C012-B Titan Heavy-Duty Gas Spring Monitor Arm
Brateck LDT87-C012-B Titan Heavy-Duty Gas Spring Monitor Arm
SKU:MABT-LDT87-C012-B
The Brateck LDT87-C012-B Titan is a heavy-duty gas spring monitor arm designed for large displays up to 57 inches. Featuring steel construction, 360° rotation, full height adjustment, and integrated cable management, it delivers superior ergonomics and workspace organisation for IT professionals and office environments.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-LDT87-C012-B |
| Availability | In Stock |
Overview
- The Brateck LDT87-C012-B Titan is a professional-grade gas spring monitor arm engineered for heavy-duty use in demanding office and control room environments. Built from reinforced steel and aluminium, it safely supports single monitors from 24 to 57 inches and weighing up to 27 kg, making it ideal for large displays and curved monitors.
This arm delivers exceptional flexibility with 360° rotation, ±90° swivel, and full-range height adjustment to accommodate multiple working positions and ergonomic requirements. The smooth gas spring mechanism ensures effortless positioning without drift, whilst the integrated cable management system keeps wires organised and out of sight.
Installation is straightforward via top-mounted clamp or grommet fitting, with compatibility for standard VESA mounting patterns (75×75 through 200×200). The detachable VESA plate allows for quick monitor swaps, and the 180° rotation stop provides safety by preventing the arm from swinging into adjacent screens or walls.
Ideal for IT managers, office managers, and businesses seeking to improve workspace ergonomics whilst reducing desk footprint and visual clutter.
Specifications
| Brand | Brateck |
|---|---|
| Model | LDT87-C012-B |
| Product Type | Gas Spring Monitor Arm |
| Material | Steel, Aluminium, Plastic |
| Surface Finish | Powder Coating |
| Colour | Matte Black |
| Dimensions | 129 × 550 × 730 mm |
| Weight Capacity (Single Screen) | 2–27 kg |
| Weight Capacity (Curved Screen) | 2–22 kg |
| Compatible Screen Sizes | 24–57 inches |
| Curved Monitor Compatible | Yes |
| VESA Mount Patterns | 75×75, 100×100, 100×200, 200×100, 200×200 |
| Tilt Range | +60° to −20° |
| Swivel Range | +90° to −90° |
| Screen Rotation | +90° to −90° |
| Full Arm Extension | 485 mm |
| Installation Method | Clamp or Grommet |
| Desktop Thickness (Clamp) | 10–45 mm |
| Desktop Thickness (Grommet) | 10–40 mm |
| Cable Management | Integrated |
| USB Ports | No |
| Multimedia Ports | No |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What size monitors does the Brateck LDT87-C012-B support?
The arm supports single monitors from 24 to 57 inches, with a weight capacity of 2–27 kg for standard monitors and 2–22 kg for curved displays.
Is the Brateck LDT87-C012-B compatible with curved monitors?
Yes, the arm is compatible with curved monitors up to 57 inches, with a reduced weight capacity of 2–22 kg to ensure stability.
What VESA mount patterns does this monitor arm support?
The arm supports VESA patterns of 75×75, 100×100, 100×200, 200×100, and 200×200 mm, covering most standard monitors.
How is the Brateck LDT87-C012-B installed?
Installation is via top-mounted clamp or grommet fitting. The clamp suits desks 10–45 mm thick, whilst the grommet suits 10–40 mm thick desks. The detachable VESA plate allows tool-free monitor attachment.
Does the monitor arm include cable management?
Yes, the arm features integrated cable management to keep wires organised and maintain a neat workspace.
What is the warranty period for the Brateck LDT87-C012-B?
The arm comes with a 36-month manufacturer's warranty covering defects in materials and workmanship.
Can the monitor arm rotate and swivel?
Yes, the arm features 360° rotary VESA plate rotation, ±90° swivel range, and ±90° screen rotation for flexible viewing angles.
What is the maximum arm extension?
The arm extends up to 485 mm from the desk surface, allowing considerable reach adjustment for optimal ergonomic positioning.
