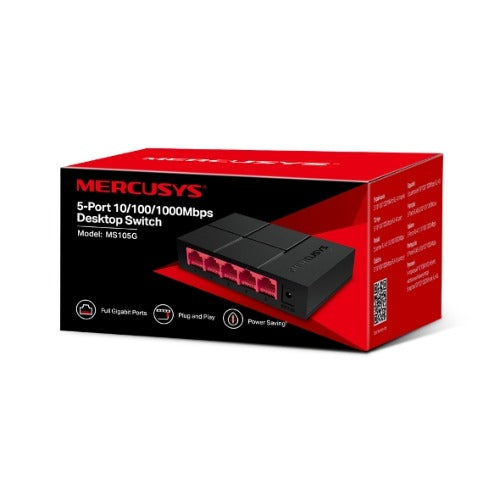

Mercusys MS105G 5-Port Gigabit Desktop Switch
Mercusys MS105G 5-Port Gigabit Desktop Switch
SKU:NWMS-MS105G
The Mercusys MS105G is a compact 5-port gigabit desktop switch designed for home and small office network expansion. Featuring 10/100/1000 Mbps auto-negotiating ports, plug-and-play setup, and energy-efficient green ethernet technology, it delivers reliable wired connectivity for business and home users.
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWMS-MS105G |
| Availability | In Stock |
Overview
- The Mercusys MS105G is a straightforward, compact gigabit switch that expands your wired network with five fast ethernet ports. Its ultra-small form factor—roughly smartphone-sized—makes it ideal for desks, shelves, or cable cabinets where space is limited. Simply plug it in and connect your devices; no configuration is needed.
With 10/100/1000 Mbps auto-negotiating ports, the MS105G delivers reliable gigabit speeds for computers, printers, IP cameras, gaming consoles, and 4K Ultra HD TVs. The switch features green ethernet technology that cuts power consumption by up to 82% compared to standard switches, making it an efficient choice for cost-conscious businesses and environmentally aware organisations.
Every unit undergoes rigorous testing before shipment to ensure stable, uninterrupted connections. The switch supports full and half-duplex operation, MAC address learning, and stores up to 512 Kbit of buffered data for smooth traffic handling.
Specifications
| ports | 5 × RJ45 10/100/1000 Mbps |
|---|---|
| port_features | Auto-negotiation, Auto MDI/MDIX |
| data_rates | 10/100/1000 Mbps (half duplex); 20/200/2000 Mbps (full duplex) |
| switching_bandwidth | 10 Gbps |
| buffer_capacity | 512 Kbit |
| jumbo_frame_support | 9 KB |
| transfer_method | Store and forward |
| standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD |
| power_supply | 5V/0.6A external adapter |
| dimensions | 105 × 70 × 24.9 mm (W × D × H) |
| leds | Ethernet (ports 1–5), Power |
| warranty | 24 months |
Key Features
Ideal For
FAQs
Do I need to configure the Mercusys MS105G before using it?
No. The MS105G is plug-and-play. Simply connect the power adapter and attach your devices to any of the five ports. It will automatically negotiate the correct speed and connection type.
What devices can I connect to this switch?
You can connect any device with an ethernet port, including computers, printers, network-attached storage (NAS), IP cameras, game consoles, and 4K Ultra HD TVs.
How much power does the MS105G consume?
The MS105G uses a 5V/0.6A power adapter. Green ethernet technology allows it to reduce power consumption by up to 82% compared to standard switches, especially when connected devices are inactive.
Is the MS105G suitable for small office use?
Yes. The MS105G is ideal for small offices and home networks. Its compact size, reliable 10 Gbps switching bandwidth, and plug-and-play design make it perfect for expanding wired network infrastructure with minimal setup.
What does auto MDI/MDIX mean?
Auto MDI/MDIX automatically detects and adjusts the cable type (straight-through or crossover) to ensure proper communication. You can use any standard ethernet cable without worrying about cable type.
What is included in the box?
The package includes the MS105G 5-port switch, a 5V/0.6A power adapter, and a quick installation guide.
Is the switch compatible with gigabit internet?
Yes. The MS105G supports 10/100/1000 Mbps connections and will auto-negotiate to the highest speed supported by your devices and internet connection.
