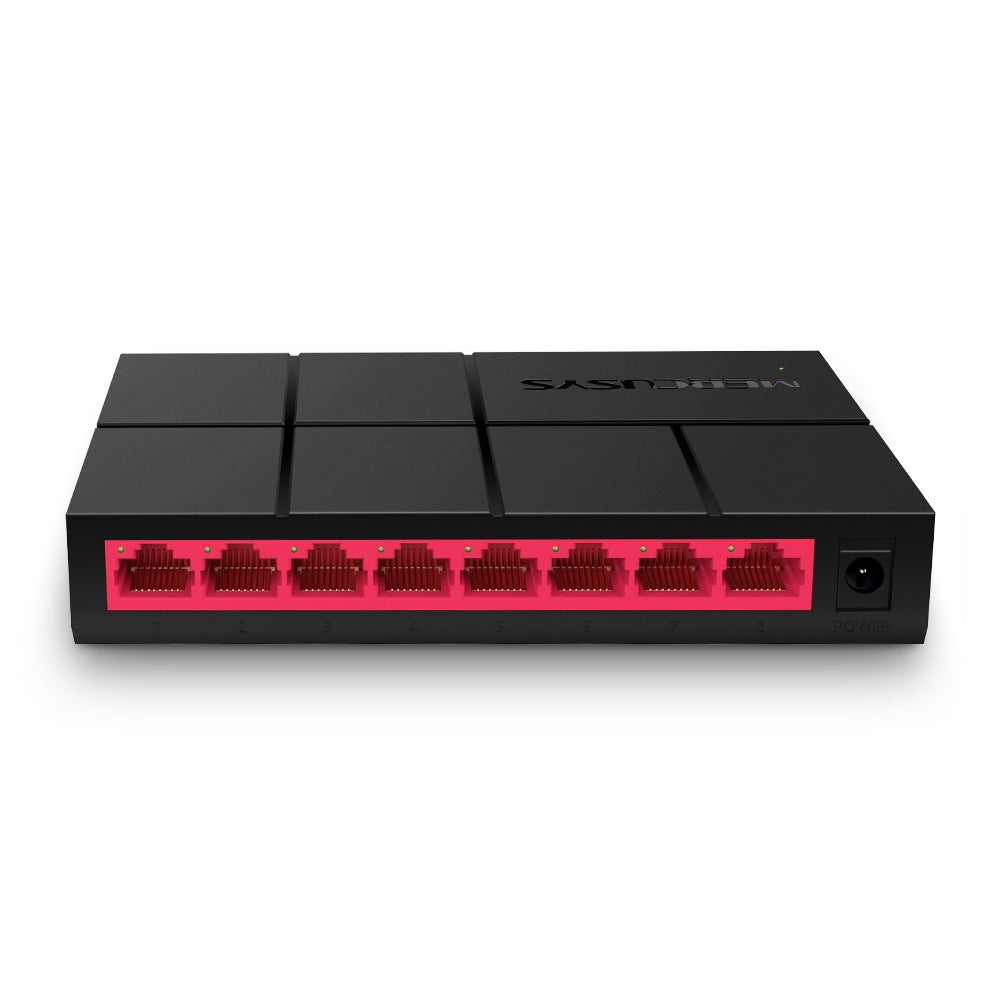

Mercusys MS108G 8-Port Gigabit Desktop Switch
Mercusys MS108G 8-Port Gigabit Desktop Switch
SKU:NWMS-MS108G
The Mercusys MS108G is an 8-port gigabit desktop switch designed for network expansion in homes and small offices. Featuring plug-and-play setup, green ethernet technology that reduces power consumption by up to 82%, and a compact design, it delivers reliable gigabit connectivity for IT professionals and business users.
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWMS-MS108G |
| Availability | In Stock |
Overview
- The Mercusys MS108G is a practical gigabit switch purpose-built for small networks that need straightforward, energy-efficient expansion. With eight full gigabit ports, it eliminates bottlenecks common to 100 Mbps switches and supports full duplex speeds up to 2000 Mbps per port, making it 10 times faster than standard fast ethernet.
Designed for zero-touch deployment, the MS108G requires no configuration—simply connect and start networking. Its innovative green ethernet technology automatically adjusts power based on cable length and link status, reducing energy consumption by up to 82% compared to standard switches, making it an environmentally responsible choice for small offices and home networks.
The compact form factor—roughly smartphone-sized—makes placement flexible, while auto MDI/MDIX support ensures compatibility with all cable types without requiring crossover cables. Whether expanding a home network or adding connectivity to a small business, the MS108G delivers reliable, energy-conscious gigabit performance.
Specifications
| Ethernet Ports | 8 × 10/100/1000 Mbps RJ45 |
|---|---|
| Auto-Negotiation | Yes |
| Auto MDI/MDIX | Supported |
| Data Rates | 10/100/1000 Mbps (half duplex); 20/200/2000 Mbps (full duplex) |
| Buffer Capacity | 64 KB |
| Jumbo Frame Support | 9 KB |
| Switching Method | Store and forward |
| Power Supply | 9V/0.6A external |
| Dimensions (W × D × H) | 127 × 60.3 × 22 mm |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD |
| LED Indicators | Power, Ethernet (ports 1–8) |
| Warranty | 24 months |
Key Features
Ideal For
FAQs
Do I need to configure the MS108G before using it?
No. The MS108G is a plug-and-play device that requires no configuration. Simply connect it to power and your devices via ethernet cables to expand your network immediately.
What devices can I connect to this switch?
The MS108G supports any device with a gigabit ethernet port, including computers, printers, IP cameras, NAS devices, game consoles, 4K TVs, and other network-enabled equipment.
What is auto MDI/MDIX and why does it matter?
Auto MDI/MDIX automatically detects and adapts to both straight-through and crossover ethernet cables, eliminating the need for special cables and ensuring compatibility with any device or switch connection.
How much power does the MS108G use?
The MS108G features green ethernet technology that reduces power consumption by up to 82% by automatically adjusting power based on cable length and link status, making it energy efficient for continuous operation.
Is this switch suitable for a small office network?
Yes. With eight gigabit ports, plug-and-play setup, and compact design, the MS108G is ideal for small offices requiring straightforward network expansion without technical complexity.
What is the warranty period?
The MS108G includes a 24-month manufacturer's warranty covering defects in materials and workmanship.
Can I use this switch to connect multiple rooms or floors?
The MS108G is designed for local network expansion. For extending connectivity across multiple rooms or floors, you may need additional cabling or networking solutions depending on your distance and layout requirements.
