Mercusys MS112GMP 12-Port Gigabit Desktop Switch with PoE+
Mercusys MS112GMP 12-Port Gigabit Desktop Switch with PoE+
SKU:NWMS-MS112GMP
Couldn't load pickup availability
- See our return policy
- 5 years Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWMS-MS112GMP |
| Availability | In Stock |
Overview

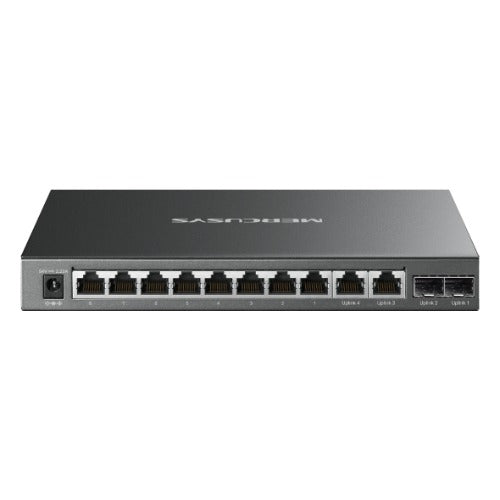

- The Mercusys MS112GMP is a 12-port gigabit desktop switch designed to simplify network deployment for small offices and growing businesses. It combines 8 PoE+ ports with 4 gigabit uplink ports, delivering 110W of total power budget to simultaneously power and connect devices such as IP cameras, wireless access points, and VoIP phones without requiring separate power supplies.
With IEEE 802.3af/at compliance, each PoE+ port supports up to 30W of power, while the extended transmission range of up to 250m in Extend Mode allows flexible device placement throughout your premises. The switch offers intelligent traffic management through Priority Mode—which guarantees bandwidth for critical applications—and Isolation Mode for secure client traffic separation.
Designed for reliability, the MS112GMP features PoE Auto Recovery to automatically restart dropped or unresponsive devices, minimising downtime. Its fanless design eliminates noise and reduces power consumption, making it ideal for office environments. Backed by a 5-year warranty and requiring no configuration, it delivers plug-and-play simplicity for IT teams of all sizes.
Specifications
| Number of Ports | 12 Gigabit (8× PoE+, 4× Uplink) |
|---|---|
| Port Speed | 1 Gbps |
| PoE+ Specification | IEEE 802.3af/at compliant |
| PoE+ Power Per Port | 30W maximum |
| Total PoE+ Power Budget | 110W |
| Data and Power Transmission Range | Up to 250m (Extend Mode) |
| Priority Mode | Ports 1–2 supported |
| Traffic Management | Priority Mode, Isolation Mode, PoE Auto Recovery |
| Design | Fanless |
| Configuration Required | None (Plug and play) |
| Warranty Period | 5 years |
Key Features
Ideal For
FAQs
Can the MS112GMP power both IP cameras and wireless access points?
Yes. Each of the 8 PoE+ ports supports up to 30W of power, allowing you to connect and power a range of PoE-compatible devices including IP cameras, wireless access points, and VoIP phones simultaneously.
What is the maximum transmission distance for PoE power and data?
The MS112GMP supports standard PoE transmission up to 100m, and up to 250m when Extend Mode is enabled, providing flexibility for extended deployments across larger premises.
How much power can the switch deliver in total?
The switch has a total PoE+ power budget of 110W, distributed across the 8 PoE+ ports at 30W per port maximum.
What is Priority Mode and why would I use it?
Priority Mode ensures that ports 1–2 receive guaranteed bandwidth for high-priority or latency-sensitive applications such as VoIP or real-time video conferencing, maintaining quality even during peak network load.
What is Isolation Mode?
Isolation Mode allows you to separate client traffic on the switch with a single click, enhancing security and network performance by preventing unwanted traffic between specific ports or client groups.
Does the MS112GMP require configuration?
No. The switch is plug-and-play and requires no configuration. Simply connect power and network cables, and it will begin operating immediately.
Is the fanless design a reliability advantage?
Yes. The fanless design eliminates moving parts, reduces power consumption, and operates silently, making it reliable for office environments where noise is a concern.
What warranty does the MS112GMP include?
The switch includes a comprehensive 5-year warranty, providing long-term peace of mind for business deployments.
