Alloy GCR2000SC.10 Gigabit Ethernet Media Converter
Alloy GCR2000SC.10 Gigabit Ethernet Media Converter
SKU:NHA-GCR2000SC.10

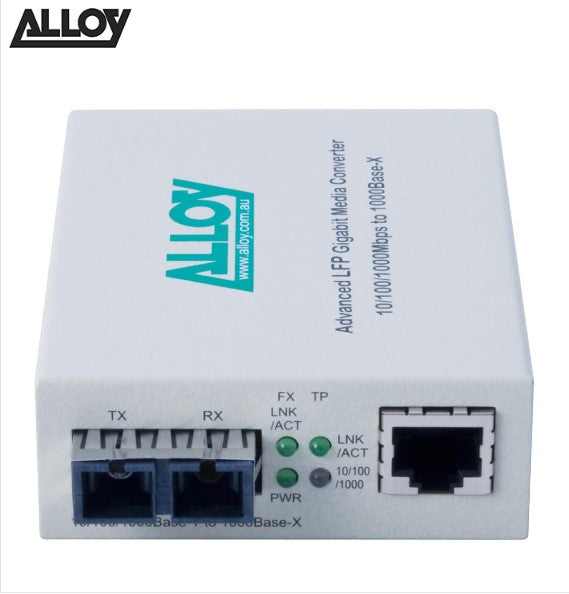

The Alloy GCR2000SC.10 is a Gigabit Ethernet media converter designed for copper to singlemode fibre conversion. Featuring dual-purpose standalone or chassis-mount operation, 1000Base-T RJ-45 and 1000Base-LX SC ports, and up to 10km fibre range, it delivers flexible network connectivity for enterprise environments.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Alloy |
|---|---|
| Category | Network - Consumer |
| SKU | NHA-GCR2000SC.10 |
| Availability | In Stock |
Overview
- The Alloy GCR2000SC.10 is a versatile Gigabit Ethernet media converter that bridges copper and singlemode fibre networks. Its dual-purpose design allows operation as a standalone device or as a module within an Alloy DCR12 Series chassis, making it ideal for organisations requiring flexible network architecture options.
The converter features a 1000Base-T RJ-45 port supporting standard Ethernet copper links up to 100 metres, and a 1000Base-LX singlemode SC port extending connectivity to 10 kilometres over fibre. This combination makes it suitable for organisations connecting office networks to remote data centres or branch offices across longer distances.
Built with a compact, rugged all-metal case, the GCR2000SC.10 integrates seamlessly into existing infrastructure. Support for Link Fault Passthrough ensures network reliability by maintaining fault detection across the conversion point. Whether deployed as a discrete device or as part of a larger chassis system, it provides a cost-effective solution for gigabit-speed media conversion.
Specifications
| Model | GCR2000SC.10 |
|---|---|
| Manufacturer | Alloy |
| Product Type | Gigabit Ethernet Media Converter |
| Copper Port Type | 1000Base-T RJ-45 |
| Copper Port Speed | 10/100/1000Mbps auto-sensing |
| Copper Port Range | Up to 100 metres (UTP/STP) |
| Fibre Port Type | 1000Base-LX singlemode SC |
| Fibre Connector | SC |
| Fibre Range | Up to 10 kilometres |
| Deployment Options | Standalone or DCR12 Series chassis module |
| Chassis Compatibility | Alloy DCR12 Series Media Converter Chassis |
| Installation Type | Slide-in, hot-swap (for chassis deployment) |
| Link Fault Passthrough | Supported (forced and far-end fault modes) |
| Power Options | External plugpack or USB |
| Case Construction | All-metal, compact and rugged |
| Standards Compliance | IEEE 802.3ab |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
Can the GCR2000SC.10 be used standalone or does it require a chassis?
The GCR2000SC.10 is a dual-purpose converter and can operate as a standalone device without a chassis. It can also be installed as a module in an Alloy DCR12 Series Media Converter Chassis for centralised management.
What is the maximum fibre distance supported?
The 1000Base-LX singlemode SC port supports a maximum fibre cable range of up to 10 kilometres. The RJ-45 copper port supports up to 100 metres over standard UTP/STP cabling.
What fibre connector type does this converter use?
The GCR2000SC.10 features an SC connector on the singlemode fibre port. Other models in the GCR2000 Series support LC connectors for different applications.
Does it support Link Fault Passthrough?
Yes, the GCR2000SC.10 supports Link Fault Passthrough (LFP) in both forced and far-end fault modes, helping maintain network reliability by detecting and signalling faults across the conversion point.
How is it powered?
The GCR2000SC.10 can be powered either via an external plugpack or through a USB connection, providing flexibility for different deployment environments.
Is this converter IEEE 802.3ab compliant?
Yes, the RJ-45 copper port is IEEE 802.3ab compliant, ensuring compatibility with standard Gigabit Ethernet equipment.
What happens if I install it in a chassis—does it support hot-swap?
Yes, the GCR2000SC.10 features slide-in, hot-swap installation, allowing you to install or remove it from an Alloy DCR12 Series chassis without powering down the system.
