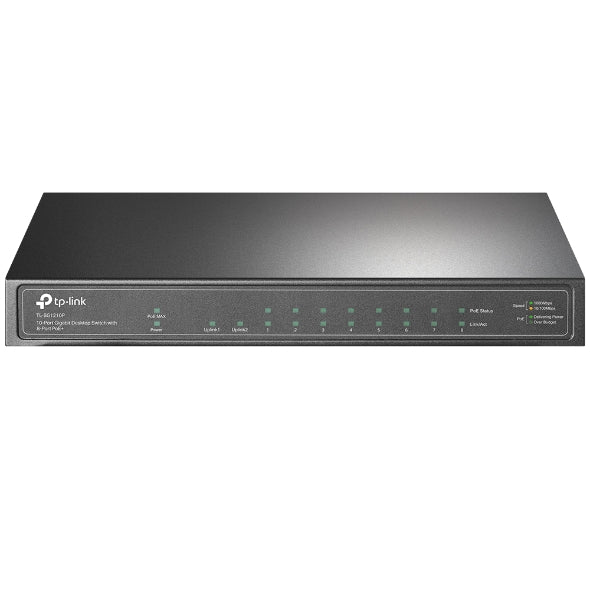

TP-Link TL-SG1210P 10-Port Gigabit Switch with PoE+
TP-Link TL-SG1210P 10-Port Gigabit Switch with PoE+
SKU:NWTL-SG1210P
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-SG1210P |
| Availability | In Stock |
Overview
- The TP-Link TL-SG1210P is a compact 10-port Gigabit switch designed for businesses seeking reliable network expansion with integrated Power over Ethernet capability. With 8 PoE+ ports delivering up to 30W per port, it eliminates the need for separate power supplies when deploying networked devices such as IP cameras, wireless access points, and VoIP phones.
The switch features 802.1p/DSCP QoS to prioritise latency-sensitive traffic, ensuring smooth performance for video streaming, voice calls, and real-time applications. IGMP snooping optimises multicast traffic, reducing unnecessary bandwidth consumption across your network.
Designed for desktop deployment, the TL-SG1210P operates fanlessly, making it suitable for quiet office environments. The addition of a Gigabit SFP slot provides flexibility for fibre connectivity or future network upgrades. With a 20 Gbps switching fabric and comprehensive IEEE 802.3af/at support, this switch delivers professional-grade performance for growing business networks.
Specifications
| Ports | 8 × 10/100/1000Mbps PoE+ RJ45, 1 × 10/100/1000Mbps RJ45, 1 × Gigabit SFP |
|---|---|
| PoE+ Standard | IEEE 802.3af/at compliant |
| PoE Power Budget | 63W total (30W per port maximum) |
| Switching Fabric | 20 Gbps |
| MAC Address Table | 4K entries |
| QoS | 802.1p/DSCP |
| Advanced Features | IGMP Snooping, Flow Control (802.3x), Store-and-Forward transmission |
| Power Supply | External adapter (53.5VDC / 1.31A) |
| Power Consumption | 7.11W (no PD), 78.13W (with 63W PD connected) |
| Cooling | Fanless |
| Physical Security | Security lock slot |
| Dimensions | 209 × 126 × 26 mm |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% non-condensing |
| Network Media | Cat3/4/5 UTP, Cat5/5e/6+ UTP, STP (100m maximum) |
| Certifications | CE, FCC, RoHS |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
What devices can I power with the PoE+ ports?
The PoE+ ports support IEEE 802.3af/at compliant devices, including IP cameras, wireless access points, VoIP phones, and other PoE-powered network equipment. Each port delivers up to 30W, with a total budget of 63W across all 8 ports.
Can I mix PoE and non-PoE devices on the same switch?
Yes. The switch has 8 dedicated PoE+ ports and 1 standard Gigabit RJ45 port that does not provide PoE. You can connect any mix of powered and non-powered devices.
What is the SFP slot used for?
The Gigabit SFP slot enables fibre optic connectivity for long-distance runs, backbone connections, or future network upgrades. It supports both multimode (MMF) and single-mode (SMF) fibre.
Do I need to configure the switch before using it?
No. The TL-SG1210P is a plug-and-play unmanaged switch. Simply connect power and network cables—no configuration is required.
Is the switch suitable for high-traffic environments?
Yes. With a 20 Gbps switching fabric, QoS support for traffic prioritisation, and flow control, the switch handles business-grade network loads effectively.
What is IGMP snooping and why does it matter?
IGMP snooping optimises multicast traffic (used by video streaming and multimedia applications) by preventing unnecessary bandwidth waste. It ensures multicast packets only reach intended ports.
Does the switch have a fan?
No. The TL-SG1210P is fanless, making it silent and suitable for noise-sensitive office environments. It requires no maintenance or fan replacement.
What warranty does the switch come with?
The switch includes a 60-month (5-year) warranty covering manufacturing defects and performance.
