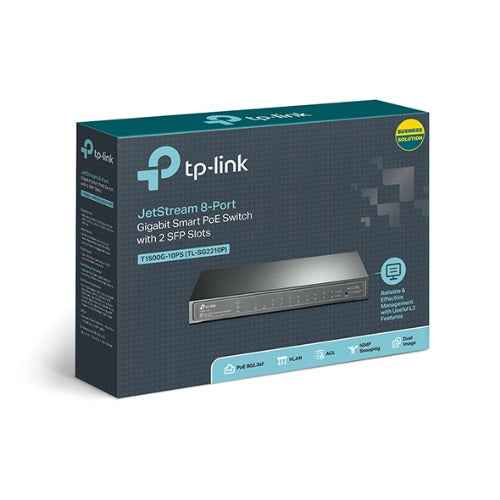

TP-Link SG2210P 8-Port Gigabit Smart PoE Switch
TP-Link SG2210P 8-Port Gigabit Smart PoE Switch
SKU:NWTL-SG2210P
The TP-Link SG2210P is an 8-port Gigabit smart managed switch with integrated PoE support, designed for small to medium businesses. Featuring 53W total PoE power budget, L2/L3/L4 QoS, and Omada SDN integration, it delivers reliable network connectivity and device power delivery for cost-conscious deployments.
Couldn't load pickup availability
- See our return policy
- 60 months (5 years) Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - SMB |
| SKU | NWTL-SG2210P |
| Availability | In Stock |
Overview
- The TP-Link SG2210P is a purpose-built managed switch for SMB networks that need to power and manage IP devices whilst maintaining professional-grade switching performance. With 8 Gigabit PoE ports and a total power budget of 53W, it can simultaneously supply power and data to up to 8 networked devices—such as IP cameras, wireless access points, or IP phones—eliminating the need for separate power infrastructure.
Management flexibility is a key strength. The switch supports both Web and CLI interfaces, SNMP monitoring, and integrates seamlessly with TP-Link's Omada SDN platform for centralised management across multiple sites. Advanced security features including IP-MAC-Port Binding, ACL, 802.1X authentication, and DHCP Snooping protect your network from unauthorised access and common threats.
QoS at L2/L3/L4 layers ensures voice and video applications maintain priority and quality, whilst IGMP snooping prevents unnecessary multicast flooding. The fanless design eliminates noise and maintenance concerns, making it suitable for office, retail, and hospitality environments. With 20Gbps backplane capacity and a 14.9Mpps forwarding rate, it delivers the throughput needed for modern business applications.
Backed by a 5-year warranty and built for reliability, the SG2210P is an intelligent choice for growing businesses looking to simplify device power delivery whilst maintaining network security and performance control.
Specifications
| Ports | 8 x 10/100/1000Mbps Gigabit Ethernet RJ45 (PoE), 2 x SFP uplink slots |
|---|---|
| PoE Standard | IEEE 802.3af |
| PoE Power Budget | 53W total, distributed across 8 ports |
| Backplane Bandwidth | 20Gbps |
| Packet Forwarding Rate | 14.9 Mpps |
| MAC Address Table | 8K entries |
| Jumbo Frame Support | 9KB |
| Management Interface | Web GUI, CLI (Command Line Interface) |
| Management Protocols | SNMP, RMON |
| QoS Support | L2/L3/L4 QoS |
| IGMP Snooping | Yes |
| Security Features | IP-MAC-Port Binding, ACL, Port Security, DoS Defence, Storm Control, DHCP Snooping, 802.1X, RADIUS Authentication |
| Switching Technology | L2/L3/L4 Managed Smart Switch |
| Supported Standards | IEEE 802.3i, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3x, 802.3af, 802.1d, 802.1s, 802.1w, 802.1q, 802.1x, 802.1p |
| Network Media | UTP category 5, 5e or above (maximum 100m) |
| Power Supply | 100–240VAC, 50/60Hz external adapter (48VDC/1.25A output) |
| Power Consumption (No PoE) | 9.9W |
| Power Consumption (Max PoE) | 64.9W |
| Heat Dissipation (No PoE) | 33.85 BTU/h |
| Heat Dissipation (Max PoE) | 221.40 BTU/h |
| Cooling | Fanless (passive cooling) |
| Dimensions | 209mm (W) × 126mm (D) × 26mm (H) |
| Dual Firmware Image | Yes |
| Warranty | 60 months (5 years) |
| SDN Integration | Omada SDN compatible |
Key Features
Ideal For
FAQs
Can the TP-Link SG2210P power 8 devices simultaneously at full 802.3af levels?
No. The switch has a total PoE power budget of 53W shared across 8 ports. Each port can deliver up to 15.4W under 802.3af standard. Depending on the power requirements of connected devices, you may not be able to power all 8 devices simultaneously at maximum draw. Plan your PoE budget based on your actual device requirements.
Is this switch suitable for IP camera deployments?
Yes. The SG2210P is well suited for IP camera installations. With 8 PoE ports and a 53W budget, it can typically power 3–5 standard IP cameras depending on their power consumption. The 2 SFP uplink slots allow you to connect back to your core network without consuming Gigabit ports, preserving bandwidth for camera streams.
What is the difference between this switch and a simple unmanaged PoE switch?
The SG2210P is a managed smart switch offering advanced features: L2/L3/L4 QoS to prioritise critical traffic, security controls like 802.1X and DHCP Snooping, SNMP monitoring, and Omada SDN integration for centralised management. These features are essential for professional business networks requiring security, traffic control, and visibility.
Can I manage this switch remotely?
Yes. The SG2210P supports both Web and CLI management interfaces. It also supports SNMP and RMON for remote monitoring and integration with third-party network management platforms. When combined with TP-Link's Omada SDN controller, you can manage it alongside other Omada devices from a centralised dashboard.
Does the fanless design impact cooling performance?
The fanless design uses passive cooling and is sufficient for the switch's typical operating environment. In most office and standard network deployments, passive cooling is reliable and eliminates noise and maintenance concerns. The maximum heat dissipation with full PoE is 221.40 BTU/h, which is manageable in standard cabinet installations with adequate airflow.
What are the SFP slots used for?
The 2 SFP uplink slots provide flexible connectivity options for your core network. You can use them with SFP modules for fibre connections (long distance, high interference environments) or copper SFP modules. This preserves your 8 Gigabit Ethernet ports for end devices like cameras and access points.
What warranty and support does this switch include?
The TP-Link SG2210P includes a standard 60-month (5-year) manufacturer warranty. Support is available through TP-Link's Australian distributor network and Hyetech Australia. Refer to warranty documentation for full terms and conditions.
Is Dual Firmware Image critical for my network?
Dual Firmware Image is a reliability feature that allows the switch to maintain operation if a firmware update fails or is interrupted. It improves uptime and reduces the risk of a failed update taking the switch offline, which is valuable in business-critical networks.
