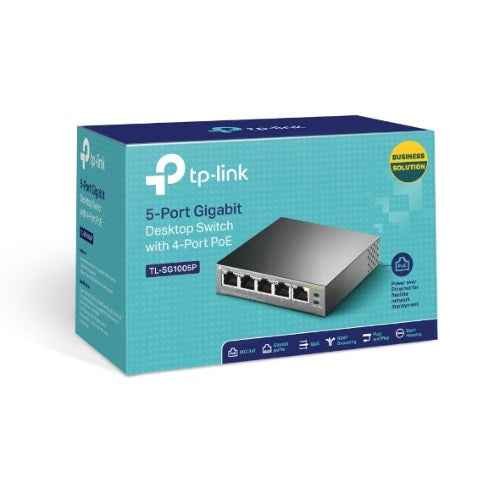

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with PoE
TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with PoE
SKU:NWTL-SG1005P
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-SG1005P |
| Availability | In Stock |
Overview
- The TP-Link TL-SG1005P delivers straightforward gigabit switching with integrated power delivery for small business networks. With four PoE ports capable of supplying up to 15.4W each and a total budget of 56W, it simplifies the deployment of IP cameras, wireless access points, and other PoE-enabled devices without requiring separate power infrastructure.
Designed for plug-and-play installation, this fanless switch requires no configuration and operates silently in office environments. Its 10 Gbps switching capacity and support for IEEE 802.3af/at standards ensure reliable performance and broad device compatibility.
The compact steel-chassis design fits naturally on desktops or in network cabinets, making it ideal for businesses expanding their network footprint without complexity or ongoing management overhead.
Specifications
| Ports | 5× 10/100/1000 Mbps RJ45 ports |
|---|---|
| PoE Ports | 4 ports (Ports 1–4), IEEE 802.3af/at compliant |
| PoE Power Supply | 56W total (65W external adapter), 15.4W per port maximum |
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.44 Mpps |
| MAC Address Table | 2K |
| Jumbo Frame Support | 16 KB |
| Network Media Support | 10BASE-T, 100BASE-TX, 1000BASE-T (UTP Cat5/5e/6, STP, maximum 100m) |
| Auto Negotiation | Yes |
| Auto MDI/MDIX | Yes |
| Flow Control | IEEE 802.3x |
| QoS | 802.1p/DSCP |
| IGMP Snooping | Yes |
| Power Consumption | 4.29W (no PoE load), 74.24W (with 65W PoE load) |
| Heat Dissipation | 14.63 BTU/h (no PoE load), 253.16 BTU/h (with 65W PoE load) |
| Cooling | Fanless |
| External Power Supply | 53.5 VDC / 1.31A adapter |
| Dimensions | 99.8 × 98 × 25 mm (3.9 × 3.9 × 1.0 in) |
| Chassis | Steel |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
How many devices can be powered via PoE?
Up to 4 devices can be powered simultaneously via the PoE ports. Each port supports up to 15.4W, with a total PoE budget of 56W across all four ports. Ensure your devices comply with IEEE 802.3af/at standards.
Do I need to configure the switch?
No. The TL-SG1005P is an unmanaged switch that operates on a plug-and-play basis. Simply connect your devices and network cable—no configuration is required.
What is the maximum cable distance?
All ports support standard Ethernet cable distances up to 100 metres for 10BASE-T, 100BASE-TX, and 1000BASE-T connections, using UTP Category 5/5e/6 or STP cabling.
Is this switch suitable for IP cameras?
Yes. The four integrated PoE ports are ideal for powering IEEE 802.3af/at compliant IP cameras, wireless access points, and other PoE-enabled devices without separate power cables.
Does the switch generate heat or noise?
The TL-SG1005P is fanless, meaning it operates silently with minimal heat dissipation, making it suitable for quiet office environments and spaces where noise is a concern.
What QoS features are available?
The switch supports 802.1p/DSCP Quality of Service to prioritise latency-sensitive traffic such as VoIP or video conferencing, ensuring smooth performance across mixed network loads.
Is this a managed or unmanaged switch?
This is an unmanaged switch. It does not support VLAN configuration, port management, or advanced network administration features, but it includes IEEE 802.3x flow control and IGMP snooping for basic traffic management.
