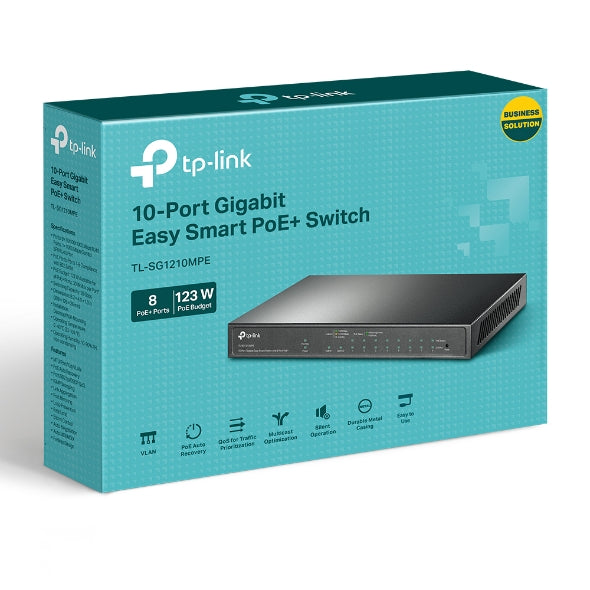

TP-Link TL-SG1210MPE 10-Port Gigabit Smart Switch with PoE+
TP-Link TL-SG1210MPE 10-Port Gigabit Smart Switch with PoE+
SKU:NWTL-SG1210MPE
The TP-Link TL-SG1210MPE is a 10-port Gigabit managed switch designed for small to medium business networks. Featuring eight PoE+ ports, fanless design, and 20 Gbps switching capacity, it simplifies network deployment and device power delivery for IP cameras, access points, and VoIP phones.
Couldn't load pickup availability
- See our return policy
- 60 months (5 years) Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-SG1210MPE |
| Availability | In Stock |
Overview
- The TP-Link TL-SG1210MPE is a 10-port Gigabit managed network switch designed for businesses that need to power and connect multiple networked devices through a single cable infrastructure. With eight PoE+ ports capable of delivering up to 30W per port and a combined 123W budget, it efficiently powers IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices whilst maintaining Gigabit connectivity.
The switch features a 20 Gbps switching capacity and supports advanced L2 management features including VLAN tagging, QoS prioritisation, IGMP Snooping, and link aggregation. Its fanless design eliminates noise and reduces power consumption—ideal for office and facility environments where silent operation is valued. Configuration is straightforward via web-based management or the included Easy Smart utility, requiring no specialist networking knowledge.
With 9 standard Gigabit ports plus a combo SFP port for fibre uplinks, the TL-SG1210MPE scales to support both copper and optical networking. The 123W PoE power budget accommodates multiple high-power devices simultaneously, making it suitable for camera systems, access point clusters, and distributed device deployments. Built to Australian industrial standards with a 5-year manufacturer warranty, it delivers reliable, managed switching for growing networks.
Specifications
| Ports | 9× 10/100/1000 Mbps Gigabit RJ45 Ports + 1× 1000 Mbps Combo SFP/RJ45 Port |
|---|---|
| PoE Ports | 8× Gigabit PoE+ Ports (Ports 1–8) |
| PoE Standard | IEEE 802.3af/at compliant |
| PoE Power Per Port | Up to 30W per port |
| Total PoE Budget | 123W |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 4K entries |
| Jumbo Frame Support | 16 KB |
| Network Media | UTP Cat5/5e/6 cable (maximum 100m), STP 100Ω (maximum 100m) |
| Auto Negotiation | Yes (AUTO MDI/MDIX) |
| Cooling | Fanless |
| Power Supply | External adapter (53.5 VDC / 2.43A) |
| Power Consumption (No Load) | 7.66W @ 220V/50Hz |
| Power Consumption (Full Load) | 141.54W @ 220V/50Hz with 123W PoE |
| Heat Dissipation (No Load) | 26.12 BTU/h |
| Heat Dissipation (Full Load) | 482.65 BTU/h |
| QoS Features | Port-based, 802.1p, and DSCP priority; 4 priority queues; rate limiting; storm control |
| L2 Features | IGMP Snooping (V1/V2/V3), Static Link Aggregation, VLAN tagging (802.1q) |
| Management | Web-based interface, Easy Smart Configuration Utility |
| Standards | IEEE 802.3i, 802.3u, 802.3ab, 802.3af, 802.3x, 802.1q, 802.1p, 802.3at, 802.3z |
| Dimensions | 209 × 126 × 26 mm (8.2 × 4.9 × 1.0 inches) |
| Warranty | 60 months (5 years) |
Key Features
Ideal For
FAQs
What is the difference between PoE+ and standard PoE?
PoE+ (802.3at) supports higher power delivery up to 30W per port, compared to standard PoE (802.3af) which delivers up to 15.4W. The TL-SG1210MPE's PoE+ ports power devices like IP cameras, high-power wireless access points, and advanced VoIP phones that require more than 15W.
Can I use the SFP combo port alongside a copper RJ45 connection?
No. The combo port supports either an SFP fibre module or a Gigabit RJ45 cable, but not simultaneously. You select one mode based on your uplink connectivity requirement.
What is the maximum number of PoE devices I can connect?
You can connect up to 8 PoE devices directly to the PoE+ ports. The 123W total PoE budget limits simultaneous power delivery—for example, eight 15W devices or four 30W devices can operate at full power simultaneously.
Is this switch suitable for outdoor installation?
The TL-SG1210MPE is designed for indoor office and facility use. For outdoor or exposed locations, consider weatherproof industrial-grade switches or protective enclosures.
Do I need specialist IT skills to configure this switch?
No. The switch supports plug-and-play operation for basic connectivity. The web-based management interface and Easy Smart utility provide simple configuration for VLAN, QoS, and PoE features without requiring advanced networking knowledge.
What warranty and support is provided in Australia?
The TL-SG1210MPE includes a 5-year manufacturer warranty. Hyetech Australia provides technical support and logistics for all warranty claims and product issues.
Can this switch be used in a stacked configuration?
The TL-SG1210MPE does not support hardware stacking. Multiple switches can be networked together via uplinks, but they operate independently as separate managed devices.
