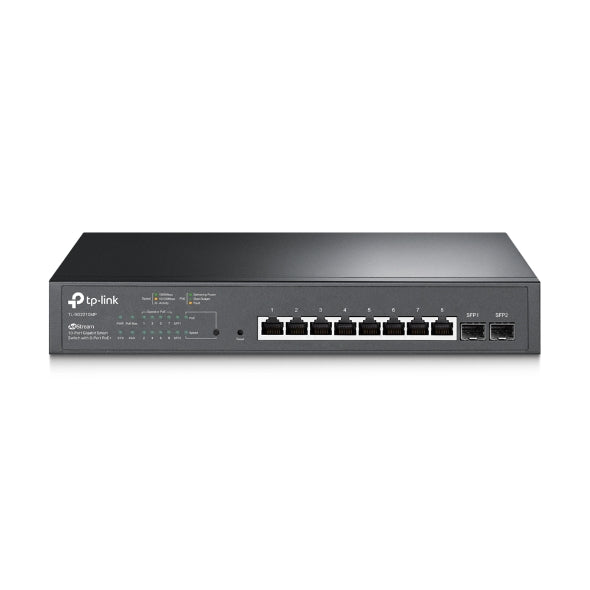

TP-Link SG2210MP 10-Port Gigabit Smart Switch with PoE+
TP-Link SG2210MP 10-Port Gigabit Smart Switch with PoE+
SKU:NWTL-SG2210MP
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - SMB |
| SKU | NWTL-SG2210MP |
| Availability | In Stock |
Overview
- The TP-Link SG2210MP is a versatile 10-port Gigabit smart switch purpose-built for SMB networks. With 8 PoE+ ports delivering 150 W of total power budget, it simplifies the deployment of powered network devices such as IP cameras, VoIP phones, and wireless access points without additional power infrastructure.
Integration with the Omada SDN platform provides centralised, cloud-based network management, allowing IT teams to configure, monitor, and secure the network from a single dashboard. This scalability is ideal for businesses planning network expansion.
The switch combines enterprise-grade security features—including IP-MAC-Port binding, access control lists, DoS defence, and 802.1X authentication—with intelligent QoS capabilities that prioritise voice and video traffic. The addition of two SFP slots enables flexible uplink connectivity via fibre for longer distances or higher-density deployments.
With a compact form factor suitable for rack mounting or desktop use, the SG2210MP delivers the balance of performance, manageability, and cost-effectiveness required by growing networks.
Specifications
| Interface | 8× 10/100/1000 Mbps RJ45 (PoE+), 2× 100/1000 Mbps SFP slots |
|---|---|
| PoE+ Specifications | 802.3af/at compliant, 8 ports, 150 W total power budget |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.9 Mpps |
| MAC Address Table | 8K entries |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame Support | Up to 9 KB |
| Standards and Protocols | IEEE 802.3i/u/ab/z/ad/x/af/at/az, IEEE 802.1d/s/w/q/x/p |
| Network Media Support | Cat 3/4/5/5e+ UTP/STP (100 m), MMF/SMF fibre |
| Cooling | 1× fan |
| Physical Security | Security lock slot |
| Mounting | Rack-mountable and desktop |
| Dimensions | 294 × 180 × 44 mm (W × D × H) |
| Power Consumption | 12.2 W (no PoE), 173.9 W (150 W PoE) |
| Heat Dissipation | 41.63 BTU/h (no PoE), 539.35 BTU/h (150 W PoE) |
| Management | Web GUI, CLI, SNMP, RMON |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
How many devices can the SG2210MP power via PoE+?
The switch has 8 PoE+ ports with a total power budget of 150 W. The number of devices it can power depends on the individual power consumption of each device. For example, it can typically support 8 IP cameras, 8 VoIP phones, or a mix of both, provided total power consumption does not exceed 150 W.
What is Omada SDN, and why is it useful?
Omada SDN is TP-Link's software-defined networking platform that provides centralised, cloud-based management of network devices. It allows IT teams to configure, monitor, and troubleshoot multiple switches and access points from a single dashboard, reducing management overhead and improving network visibility.
Can I use this switch in a rack-mounted environment?
Yes. The SG2210MP is designed for both rack mounting and desktop use. It includes a rack-mount kit and physical security lock for secure installation in datacentre and server room environments.
What security features does the SG2210MP offer?
The switch includes IP-MAC-Port binding, access control lists (ACL), port security, DoS defence, storm control, DHCP snooping, 802.1X authentication, and RADIUS authentication. These features help prevent unauthorised access, MAC flooding, and other common network attacks.
What are the SFP slots used for?
The two 100/1000 Mbps SFP slots allow you to add fibre optic connectivity for long-distance uplinks (up to 2 km) or high-density deployments. This provides flexibility beyond the standard Gigabit Ethernet ports.
How is QoS configured on this switch?
The SG2210MP supports L2/L3/L4 QoS, allowing you to prioritise traffic based on port, VLAN, IP address, or application type. QoS can be configured via the web GUI, CLI, or Omada SDN for consistent network-wide policies.
What is IGMP snooping, and why does it matter?
IGMP snooping optimises multicast traffic (such as video streams) by ensuring it is only sent to ports that have devices requesting it. This reduces unnecessary bandwidth consumption and improves voice and video application performance.
What is the warranty period for the SG2210MP?
The SG2210MP comes with a 60-month (5-year) warranty, providing extended coverage for your investment.
