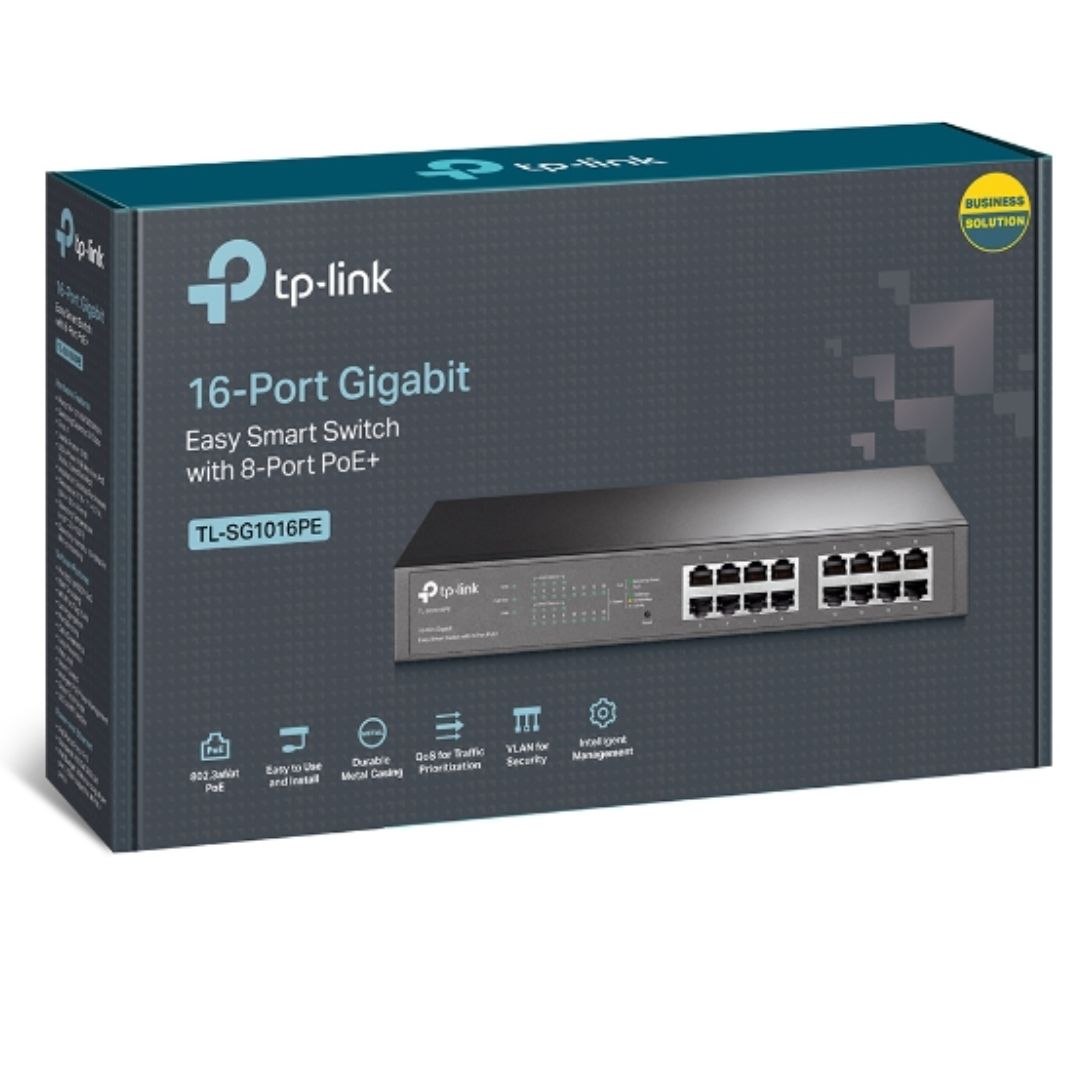

TP-Link TL-SG1016PE 16-Port Gigabit Smart Switch with PoE+
TP-Link TL-SG1016PE 16-Port Gigabit Smart Switch with PoE+
SKU:NWTL-SG1016PE
The TP-Link TL-SG1016PE is a 16-port gigabit smart switch with 8-port PoE+ support, designed for expanding small to medium business networks. Featuring 32 Gbps switching capacity, energy-efficient operation, and plug-and-play setup, it delivers reliable connectivity for office and network infrastructure.
Couldn't load pickup availability
- See our return policy
- 5 years Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-SG1016PE |
| Availability | In Stock |
Overview
- The TP-Link TL-SG1016PE is a 16-port gigabit smart switch engineered for growing business networks. With 8 dedicated PoE+ ports, you can power and connect devices such as IP cameras, access points, and VoIP phones over a single cable, simplifying installation and reducing infrastructure costs.
Designed for reliability and ease of use, the switch operates plug-and-play without requiring complex configuration. Its 32 Gbps backbound bandwidth ensures fast data transfer across all ports, while the 8K MAC address table supports larger network deployments. The switch is compatible with IEEE 802.3af/at compliant Power over Ethernet devices, making it ideal for modern office and facility environments.
Flexibility is built in—mount it in a rack using the included kit or place it on a desktop. Innovative energy-efficient technology reduces power consumption significantly when PoE is not in use, helping lower operational costs. The TL-SG1016PE is backed by a 5-year manufacturer warranty, making it a dependable choice for Australian businesses.
Specifications
| Interface | 16 × 10/100/1000Mbps RJ45 ports with auto-negotiation and auto MDI/MDIX |
|---|---|
| PoE+ Ports | 8 ports (IEEE 802.3af/at compliant) |
| Backbound Bandwidth | 32 Gbps |
| MAC Address Table | 8K |
| Buffer Memory | 1.5 Mbits |
| Switching Fabric | Store-and-forward |
| Power Supply | 100–240VAC, 50/60Hz |
| Power Consumption (PoE off) | 14.4W (220V/50Hz) |
| Power Consumption (PoE on) | 124.4W (220V/50Hz) |
| Maximum Power Consumption | 140.1W with full PoE load |
| Dimensions | 294 × 180 × 44 mm (11.6 × 7.1 × 1.7 inches) |
| Cooling | 1 fan |
| Operating Temperature | 0–40°C (32–104°F) |
| Storage Temperature | -40–70°C (-40–158°F) |
| Operating Humidity | 10–90% (non-condensing) |
| Storage Humidity | 5–90% (non-condensing) |
| Network Media Support | UTP Cat 3/4/5, UTP Cat 5/5e, UTP Cat 5/5e/6+ and EIA/TIA-568 100Ω STP (up to 100m) |
| Flow Control | IEEE 802.3x (full-duplex) and backpressure (half-duplex) |
| Priority Function | Yes |
| MAC Auto-Learning | Yes |
| Certifications | FCC, CE, RoHS |
| Warranty | 5 years |
| Mounting | Rack mountable or desktop (rackmount kit included) |
| Package Contents | TL-SG1016PE switch, power cord, installation guide, rackmount kit, rubber feet |
Key Features
Ideal For
FAQs
What is Power over Ethernet (PoE+) and how does it benefit my network?
PoE+ allows the switch to deliver both data and power through a single Ethernet cable to compatible devices such as IP cameras, wireless access points, and VoIP phones. This reduces cabling complexity, installation time, and overall infrastructure costs.
Do I need to configure the TL-SG1016PE switch before use?
No. The TL-SG1016PE is a plug-and-play switch designed for immediate use. Simply connect power and Ethernet cables—no configuration or software installation is required.
Can I use this switch in both rack and desktop environments?
Yes. The switch includes a rackmount kit and rubber feet, so you can mount it in a standard 19-inch rack or place it on a desk or shelf.
What is the maximum cable distance for gigabit connections?
Gigabit connections support standard UTP Category 5e, 6, or above cabling at distances up to 100 metres.
How much power does the switch consume with PoE enabled?
Maximum power consumption with PoE enabled is 124.4W at 220V/50Hz. When PoE is off, consumption drops to 14.4W, supporting energy-efficient operation.
Is this switch suitable for powering multiple devices simultaneously?
Yes. The 8 PoE+ ports can deliver power to compatible IEEE 802.3af/at devices. Total available power is distributed across the 8 ports. Refer to device specifications and power budgets when connecting multiple powered devices.
What warranty and support does Hyetech Australia provide?
The TL-SG1016PE is backed by a 5-year manufacturer warranty. Hyetech Australia provides sales support and can assist with product specifications and compatibility questions.
