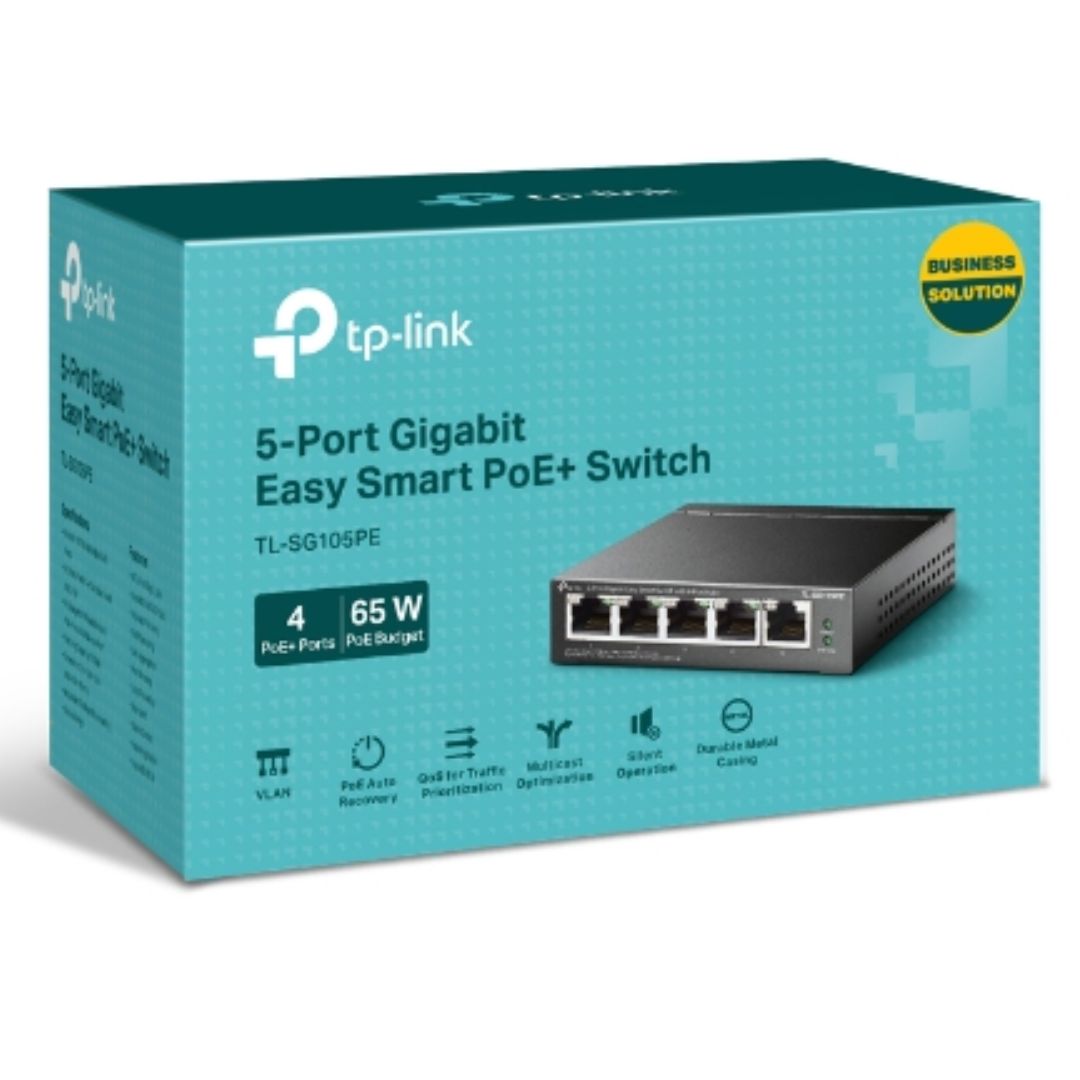

TP-Link TL-SG105PE 5-Port Gigabit Smart Switch with PoE+
TP-Link TL-SG105PE 5-Port Gigabit Smart Switch with PoE+
SKU:NWTL-SG105PE
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-SG105PE |
| Availability | In Stock |
Overview
- The TP-Link TL-SG105PE is a compact 5-port Gigabit smart switch built for organisations that need reliable network connectivity combined with power delivery capabilities. With four PoE+ ports capable of delivering up to 65W combined power (30W per port), it eliminates the need for separate power supplies for compatible devices like IP cameras, wireless access points, and VoIP phones.
Designed for easy deployment, the switch offers plug-and-play connectivity whilst providing advanced networking features such as VLAN support, Quality of Service (QoS), port mirroring, and traffic prioritisation. Its 10 Gbps switching capacity ensures efficient data handling across all ports, whilst the fanless design keeps operating costs low and noise minimal.
The switch is ideal for businesses seeking a cost-effective way to expand their network infrastructure whilst adding PoE capabilities for powered devices. Its web-based management interface and Easy Smart Configuration Utility make setup and ongoing configuration straightforward, even for small IT teams.
Specifications
| Ports | 5 × 10/100/1000 Mbps RJ45 |
|---|---|
| PoE Ports | 4 ports (Port 1–4), IEEE 802.3af/at compliant |
| PoE Power Budget | 65 W total (max 30 W per port) |
| Switching Capacity | 10 Gbps |
| Forwarding Rate | 7.44 Mpps |
| Packet Buffer | 1.5 MB |
| MAC Address Table | 2 K entries |
| Jumbo Frame Support | 16 KB |
| Network Standards | IEEE 802.3i, 802.3u, 802.3ab, 802.3af, 802.3x, 802.1q, 802.1p, 802.3at |
| VLAN Support | Up to 32 VLANs (out of 4K VLAN IDs) |
| QoS Features | Port-based, 802.1p, DSCP priority; 4 priority queues; rate limiting; storm control |
| L2 Features | IGMP Snooping V1/V2/V3, static link aggregation, port mirroring, cable diagnostics, loop prevention, PoE Auto Recovery, extend mode |
| Management | Web-based GUI |
| Power Supply | External adapter (53.5 VDC / 1.31 A) |
| Max Power Consumption | 4.52 W (no PoE devices); 75.16 W (with 65 W PoE load) |
| Cooling | Fanless |
| Cable Support | Cat3/5/5e/6 UTP or STP (max 100 m) |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
What is PoE+ and how does it benefit my network?
PoE+ (Power over Ethernet Plus) allows the switch to deliver both data and electrical power over a single Ethernet cable. This eliminates the need for separate power adapters for devices like IP cameras, wireless access points, and VoIP phones, reducing cabling complexity and installation costs.
Can I use all 4 PoE ports at maximum power simultaneously?
The TL-SG105PE has a total PoE power budget of 65W. You can distribute this across the 4 PoE ports, with a maximum of 30W per individual port. Plan your device power requirements accordingly to stay within the 65W limit.
Is this switch suitable for a small office network?
Yes. The TL-SG105PE is designed for small to medium business networks. Its 5 ports, PoE capability, and built-in VLAN and QoS features make it ideal for growing networks that need managed connectivity without complexity.
Does the switch require a fan or cooling system?
No. The TL-SG105PE is fanless, which means it operates silently and requires no active cooling. This makes it suitable for office environments and locations where noise must be minimised.
What network management features are available?
The switch offers web-based management with features including VLAN support (up to 32 VLANs), QoS with priority queues, port mirroring, cable diagnostics, loop prevention, IGMP snooping, static link aggregation, and PoE Auto Recovery.
Can I use this switch with different cable types?
Yes. The switch supports Cat3, Cat5, Cat5e, and Cat6 (or above) UTP or STP cables up to 100 metres in length, with automatic MDI/MDIX negotiation for easy connectivity.
What warranty is included?
The TP-Link TL-SG105PE includes a 60-month (5-year) warranty.
