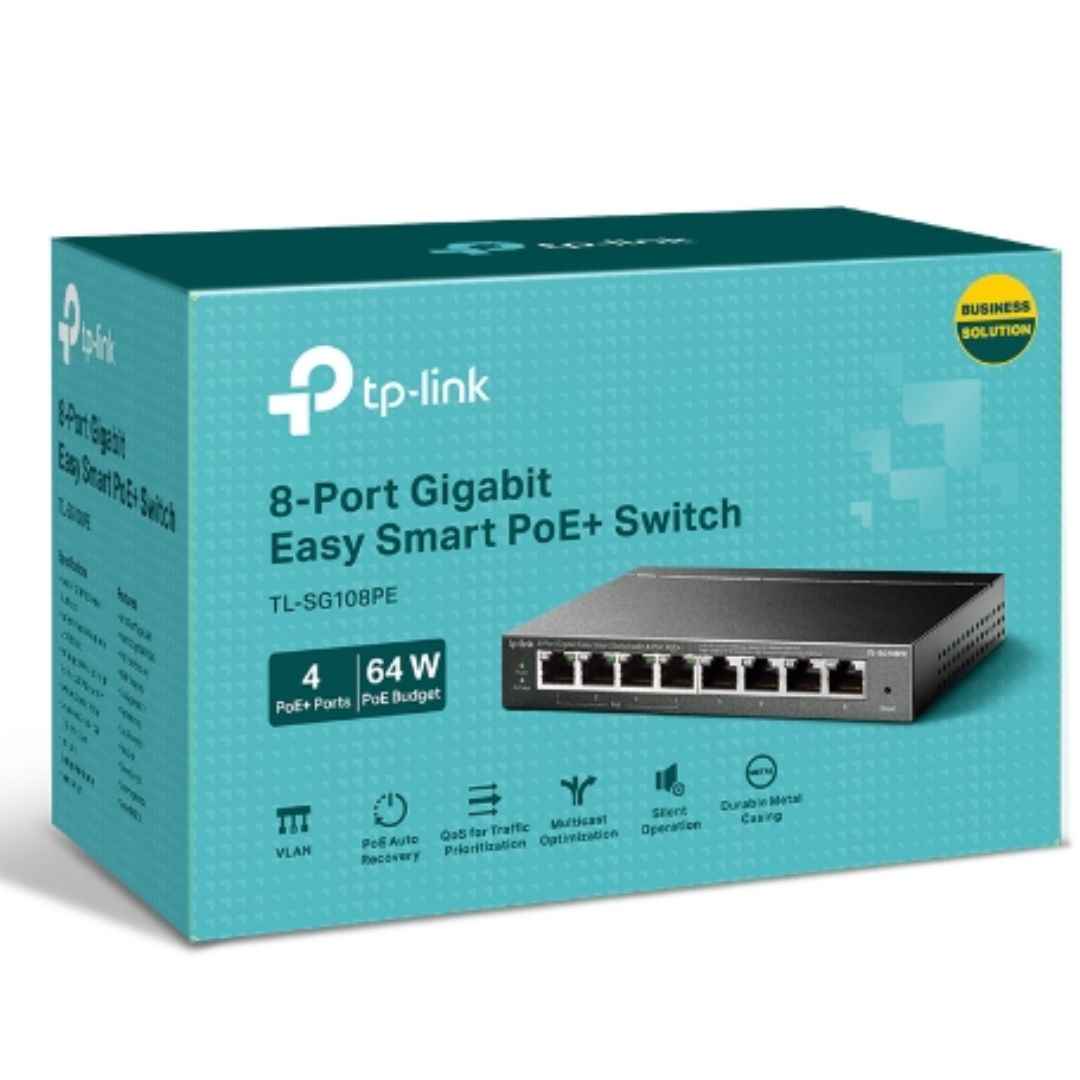

TP-Link TL-SG108PE 8-Port Gigabit Smart Switch with PoE
TP-Link TL-SG108PE 8-Port Gigabit Smart Switch with PoE
SKU:NWTL-SG108PE
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-SG108PE |
| Availability | In Stock |
Overview
- The TP-Link TL-SG108PE bridges the gap between basic unmanaged switches and complex enterprise solutions. With 8 Gigabit ports and 4 integrated PoE ports, it simplifies the deployment of PoE devices like wireless APs, IP cameras, and IP phones by combining power and data on a single cable. This eliminates the need for separate power supplies and reduces installation complexity.
Designed for small business networks, the TL-SG108PE offers easy-to-use management through its web interface and configuration utility. Network administrators can monitor traffic, prioritise bandwidth, and segment networks using VLAN features—all without the steep learning curve of enterprise-grade equipment. The fanless design ensures quiet operation suitable for office environments.
With 55W of PoE power budget, 16Gbps switching capacity, and proven IEEE 802.3af compliance, the TL-SG108PE delivers reliable performance for growing networks. Its plug-and-play connectivity means minimal setup time, while advanced features like traffic prioritisation and QoS support ensure network quality as your business scales.
Specifications
| Interface | 8 × 10/100/1000Mbps RJ45 ports |
|---|---|
| PoE Ports | 4 ports (Ports 1-4) |
| PoE Standard | IEEE 802.3af compliant |
| PoE Power Budget | 55W maximum |
| Switching Capacity | 16Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 4K |
| Packet Buffer Memory | 1.5 MB |
| Network Media | 10BASE-T: UTP Cat 3/4/5 (max 100m); 100BASE-TX: UTP Cat 5/5e (max 100m); 1000BASE-T: UTP Cat 5e/6+ (max 100m) |
| Data Rate Negotiation | Auto negotiation, Auto MDI/MDIX |
| Power Supply | External 48VDC / 1.25A adapter |
| Power Consumption (PoE On) | 65.2W maximum at 220V/50Hz |
| Power Consumption (PoE Off) | 5.2W maximum at 220V/50Hz |
| Cooling | Fanless |
| Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
Can the TL-SG108PE power multiple PoE devices at once?
Yes. The switch has a 55W PoE power budget shared across 4 PoE ports. You can power multiple devices simultaneously, such as wireless access points and IP cameras, provided the total power draw does not exceed 55W. Most standard access points and IP cameras draw between 5–15W each.
Is this switch suitable for small office networks?
Yes. The TL-SG108PE is designed for small businesses. Its Easy Smart features—including VLAN, traffic prioritisation, and web-based management—provide essential network control without the complexity of enterprise switches, making it ideal for offices with 10–50 users.
What is VLAN and why would I need it?
VLAN (Virtual Local Area Network) allows you to segment your network into logical groups, improving security and traffic management. For example, you can separate office computers from security cameras or isolate guest networks from critical business systems.
Does this switch require any special software or drivers?
No drivers are required. The TL-SG108PE uses a web-based interface for configuration. Simply connect a device to the switch and access the management utility through your web browser to configure settings, monitor traffic, and manage VLAN groups.
What cable types are compatible?
The switch supports standard Ethernet cabling: Category 3, 4, or 5 UTP for 10Mbps; Category 5 or 5e for 100Mbps; and Category 5e, 6, or higher for 1000Mbps (Gigabit). All cables should not exceed 100 metres in length.
Is the fanless design reliable in warm environments?
Yes. The fanless design eliminates moving parts, reducing maintenance and noise. However, ensure adequate ventilation around the switch. Avoid placing it in enclosed spaces or direct sunlight to maintain optimal operating temperatures.
Can I upgrade from an unmanaged switch to this model?
Yes. The TL-SG108PE is a straightforward upgrade from basic unmanaged switches. It offers plug-and-play connectivity like unmanaged models, but adds management features, PoE support, and VLAN capabilities for improved control and scalability.
