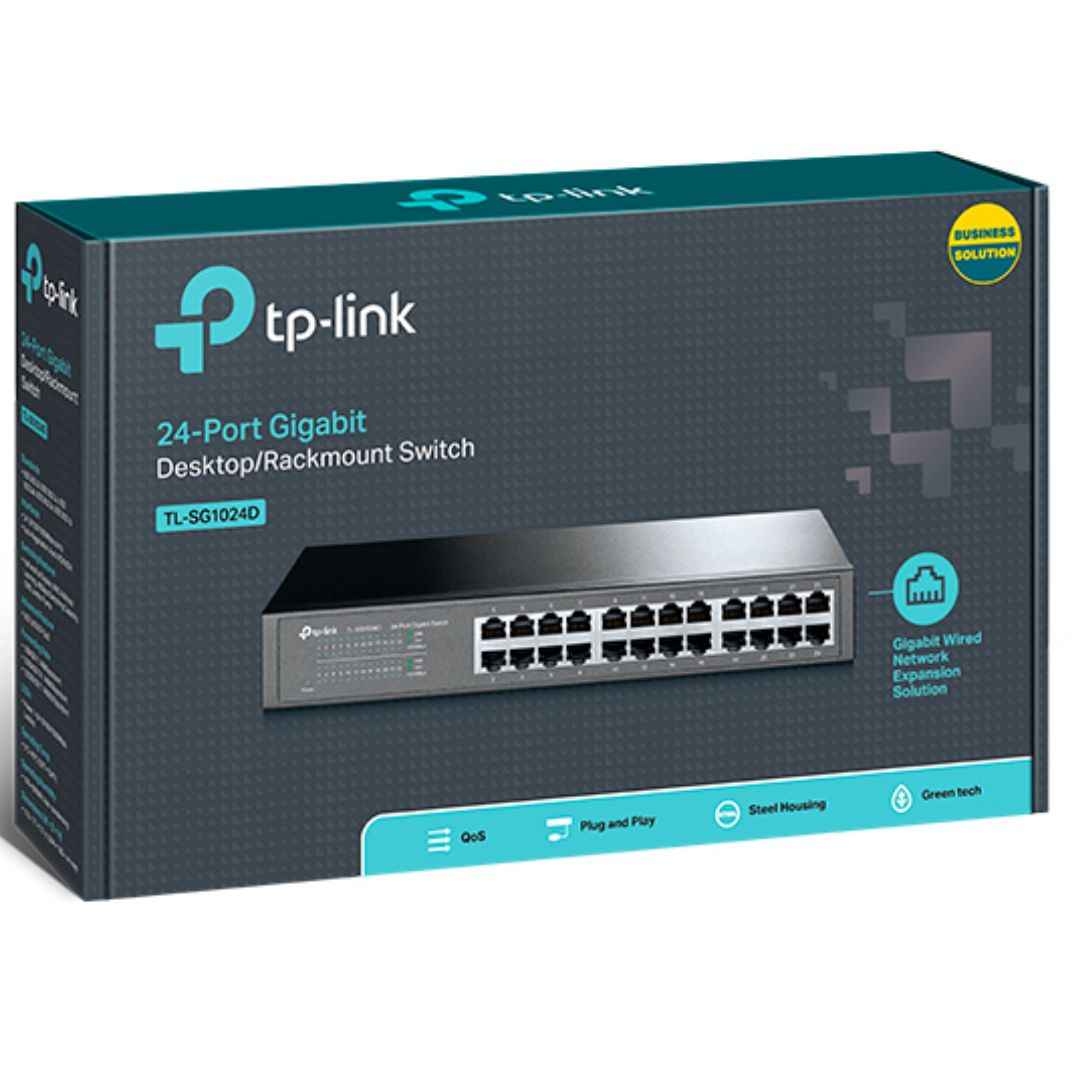

TP-Link TL-SG1024D 24-Port Gigabit Unmanaged Switch
TP-Link TL-SG1024D 24-Port Gigabit Unmanaged Switch
SKU:NWTL-SG1024D
Couldn't load pickup availability
- See our return policy
- 60 months (5 years) Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-SG1024D |
| Availability | In Stock |
Overview
- The TP-Link TL-SG1024D is a 24-port gigabit unmanaged switch that provides straightforward, reliable network switching for small to medium business environments. With 48Gbps switching capacity and a packet forwarding rate of 35.7Mpps, it handles standard business traffic efficiently without the complexity of managed switching.
Designed for organisations that value simplicity and cost-effectiveness, the TL-SG1024D operates fanlessly, reducing noise and power consumption to just 13.1W maximum—ideal for office and data centre deployments. Auto-negotiation, MAC address self-learning, and Auto MDI/MDIX support mean it works immediately out of the box with zero configuration.
The switch supports both desktop and rack-mount installation, offering flexibility in deployment. Its 8K MAC address table and 10KB jumbo frame support enable it to handle diverse network workloads. With energy-efficient technology and a 5-year warranty, it represents a dependable investment for organisations looking to expand or refresh their network infrastructure without operational complexity.
Specifications
| Ports | 24 × 10/100/1000Mbps RJ45 (auto-negotiation, Auto MDI/MDIX) |
|---|---|
| Switching Capacity | 48Gbps |
| Packet Forwarding Rate | 35.7Mpps |
| MAC Address Table | 8K |
| Jumbo Frame Support | 10KB |
| Transfer Method | Store-and-Forward |
| Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Cable Specifications | 10BASE-T: UTP cat 3/4/5 (max 100m); 100BASE-TX/1000BASE-T: UTP cat 5/5e+ (max 100m) |
| Power Supply | 100–240VAC, 50/60Hz |
| Power Consumption | Maximum 13.1W (220V/50Hz) |
| Heat Dissipation | 46.44BTU/h |
| Dimensions | 294 × 180 × 44mm (W × D × H) |
| Form Factor | Desktop/Rack-mountable |
| Cooling | Fanless |
| Green Technology | Yes |
| Warranty | 60 months (5 years) |
Key Features
Ideal For
FAQs
Does the TL-SG1024D require configuration or management?
No. The TL-SG1024D is an unmanaged switch designed for plug-and-play operation. It automatically learns MAC addresses, negotiates port speeds, and requires no configuration—making it ideal for simple network deployments.
Can I use this switch in a rack-mount cabinet?
Yes. The TL-SG1024D supports both desktop and rack-mount installation, giving you flexibility in how and where you deploy it.
What is the maximum cable distance supported?
UTP cables can extend up to 100 metres for all supported speeds (10BASE-T, 100BASE-TX, and 1000BASE-T), following standard Ethernet specifications.
Is this switch suitable for gigabit networks?
Yes. All 24 ports support 10/100/1000Mbps speeds with auto-negotiation, making it fully compatible with gigabit networks. The 48Gbps switching capacity handles standard business traffic efficiently.
How much power does the switch consume?
The TL-SG1024D consumes a maximum of 13.1W (at 220V/50Hz), making it extremely energy-efficient. Its fanless design also eliminates cooling power requirements.
What warranty does TP-Link provide?
The TL-SG1024D comes with a 5-year (60-month) manufacturer warranty, providing extended protection and peace of mind.
Does Auto MDI/MDIX support mean I can use any Ethernet cable?
Yes. Auto MDI/MDIX automatically detects and adjusts to the cable type, so you can use standard or crossover cables without concerns.
Is this switch suitable for small office networks?
Yes. The TL-SG1024D is ideal for small to medium-sized office networks requiring simple, reliable switching without the cost and complexity of managed switches.
