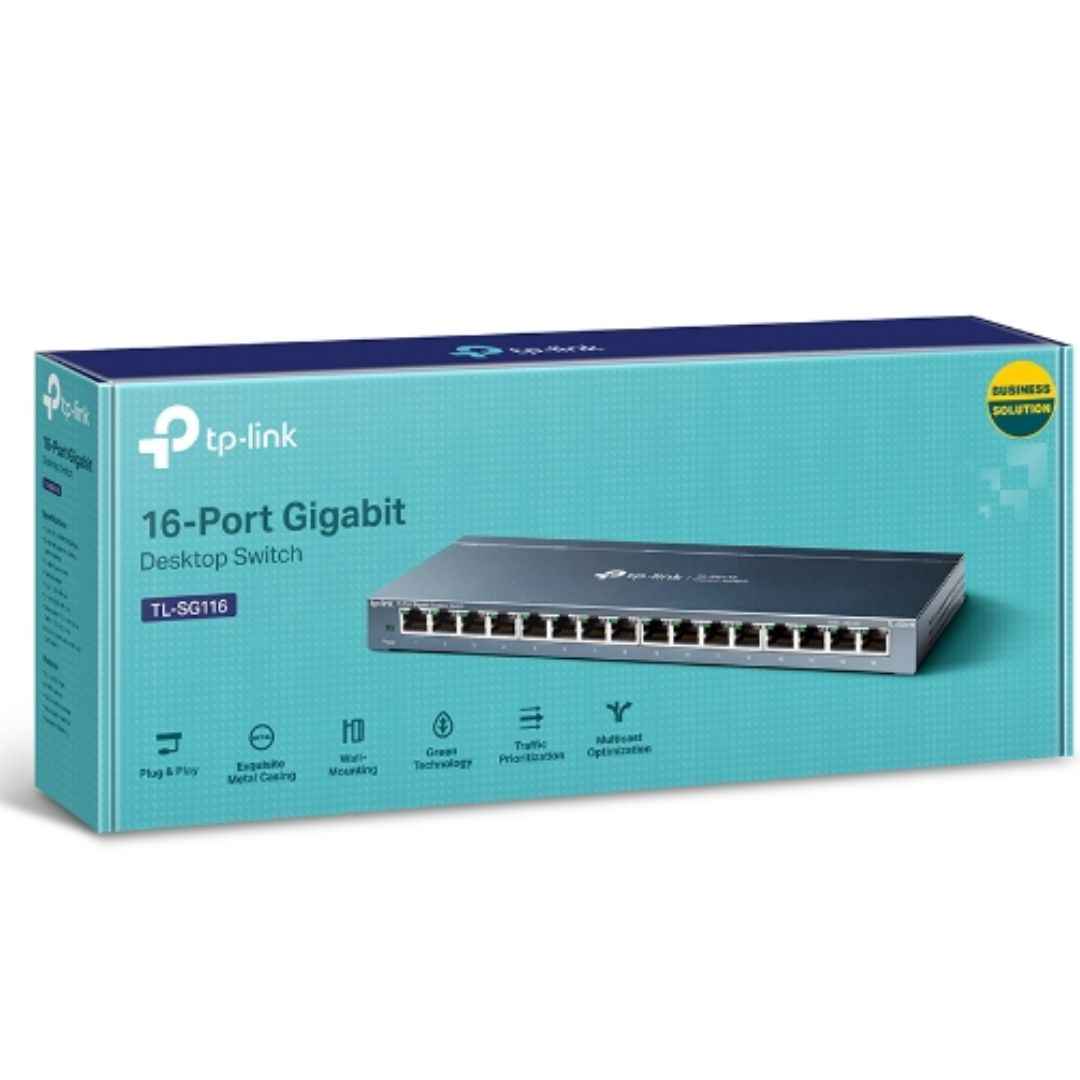

TP-Link TL-SG116 16-Port Gigabit Unmanaged Switch
TP-Link TL-SG116 16-Port Gigabit Unmanaged Switch
SKU:NWTL-SG116
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-SG116 |
| Availability | In Stock |
Overview
- The TP-Link TL-SG116 is a straightforward, unmanaged 16-port gigabit switch built for businesses that need reliable ethernet connectivity without complexity. With 32Gbps switching capacity and 23.8Mpps packet forwarding, it handles standard office networking tasks efficiently. The fanless design ensures silent operation and eliminates maintenance concerns, while green ethernet technology helps reduce power costs—particularly important in always-on network environments.
Plug-and-play operation means installation takes minutes with no configuration needed. The switch supports both desktop placement and wall mounting, making it adaptable to different office layouts. Built-in QoS and IGMP Snooping add basic traffic management capabilities for small networks. At just 10W maximum power consumption, it's an economical choice for growing teams and branch offices.
Specifications
| Ports | 16 × 10/100/1000Mbps auto-negotiation RJ45 |
|---|---|
| Port Features | Auto-MDI/MDIX |
| Switching Capacity | 32Gbps |
| Packet Forwarding Rate | 23.8Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1MB |
| Jumbo Frame Support | 10KB |
| Data Transfer Method | Store and Forward |
| QoS | 802.1p/DSCP |
| IGMP Snooping | Supported |
| Flow Control | IEEE 802.3x |
| Power Consumption | Maximum 10.0W |
| Power Supply | External 12VDC/1.0A adapter |
| Fan | Fanless |
| LED Indicators | System Power, Per-port Link/Activity |
| Housing | Steel |
| Installation | Desktop or wall-mounted |
| Dimensions | 286 × 111.7 × 25.4mm (W × D × H) |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10–90% non-condensing |
| Storage Humidity | 5–90% non-condensing |
| Certifications | CE, FCC, RoHS |
| Standards | IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.1p |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
Does the TL-SG116 require configuration or management?
No. The TL-SG116 is an unmanaged switch that operates on a plug-and-play basis. Simply connect ports and power—no setup or configuration is needed.
Can I mount this switch on a wall?
Yes. The TL-SG116 supports both desktop and wall-mounting installation, giving you flexibility in placement depending on your office layout.
Is the switch fanless?
Yes. The TL-SG116 features fanless operation, ensuring silent performance and eliminating fan maintenance.
How much power does the TL-SG116 consume?
Maximum power consumption is 10.0W, making it an energy-efficient choice for always-on network environments.
What does Green Ethernet technology do?
Green Ethernet automatically reduces power consumption when ports are idle or connected to shorter cable runs, lowering overall energy costs.
What is the switching capacity?
The TL-SG116 delivers 32Gbps switching capacity with a packet forwarding rate of 23.8Mpps, suitable for small office and workgroup networking.
Does it support Quality of Service (QoS)?
Yes. The switch supports 802.1p/DSCP QoS and IGMP Snooping, allowing basic traffic management and multicast optimisation.
