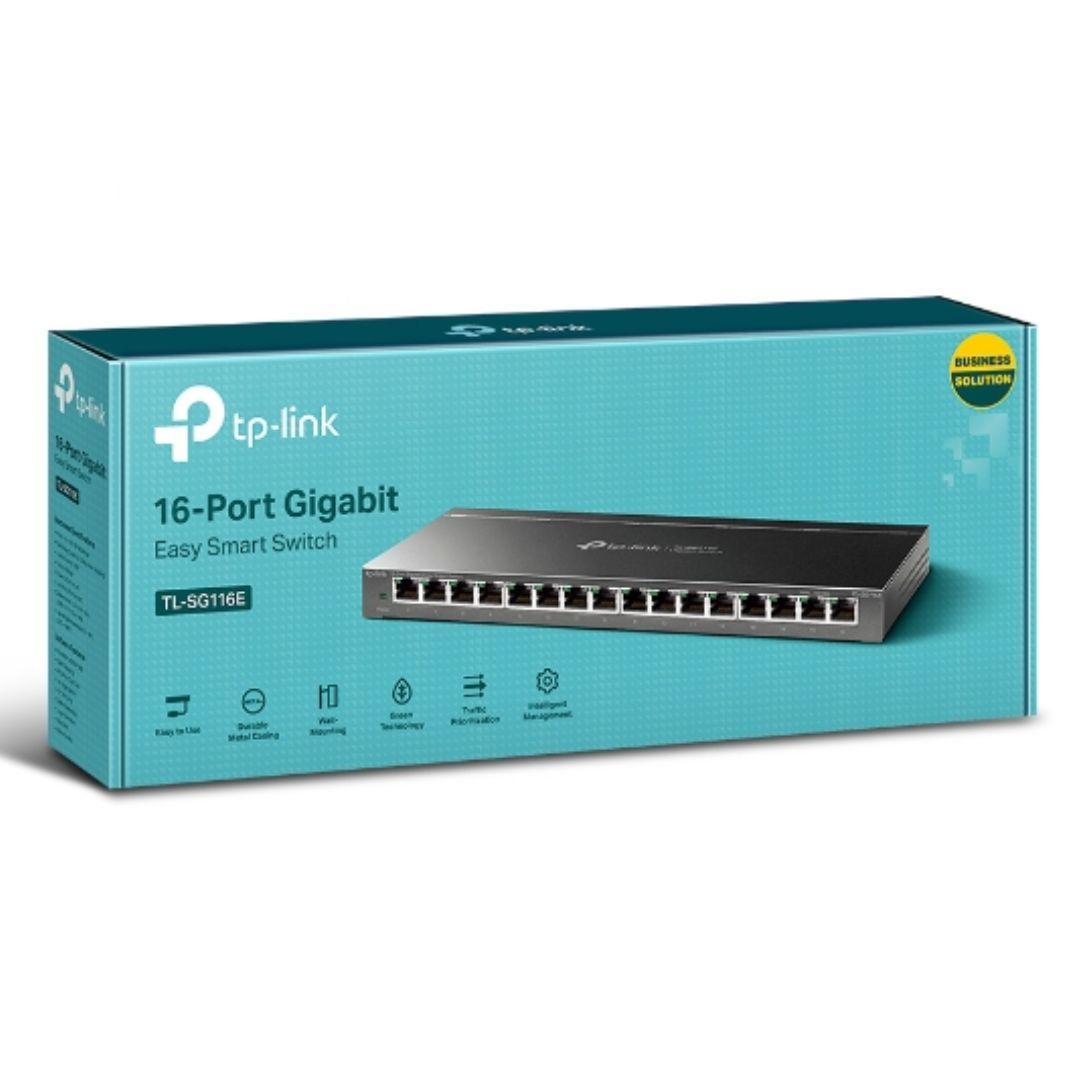

TP-Link TL-SG116E 16-Port Gigabit Unmanaged Switch
TP-Link TL-SG116E 16-Port Gigabit Unmanaged Switch
SKU:NWTL-SG116E
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-SG116E |
| Availability | In Stock |
Overview
- The TP-Link TL-SG116E is an unmanaged gigabit switch that provides straightforward network connectivity for small to medium deployments. With 16 gigabit ports and 32Gbps total switching capacity, it handles standard office traffic efficiently without requiring active management or configuration.
Designed for ease of use, the TL-SG116E operates on a plug-and-play basis, making it ideal for organisations without dedicated IT infrastructure. The fanless design, durable metal casing, and low power consumption ensure reliable long-term operation in typical office environments.
While unmanaged, the switch includes useful L2 features such as VLAN support (up to 32 VLANs), QoS capabilities, IGMP snooping, static link aggregation, and loop prevention. These features provide network professionals with basic tools to optimise traffic flow and network stability without the complexity of fully managed switching.
The TL-SG116E is backed by a 60-month warranty, reflecting TP-Link's confidence in build quality and reliability.
Specifications
| ports | 16 × 10/100/1000Mbps RJ45 ports |
|---|---|
| switching_capacity | 32Gbps |
| packet_forwarding_rate | 23.81Mpps |
| mac_address_table | 8K |
| packet_buffer_memory | 4.1MB |
| jumbo_frame_support | 9KB |
| vlan_support | Up to 32 VLANs simultaneously (out of 4K VLAN IDs) |
| vlan_types | MTU/Port/Tag VLAN |
| qos_features | Port-based priority, 802.1p priority, DSCP priority, 4 priority queues, rate limiting, storm control |
| l2_features | IGMP Snooping (V1/V2/V3), static link aggregation, port mirroring, cable diagnostics, loop prevention |
| transmission_method | Store-and-forward |
| standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| network_media | UTP category 3/4/5, UTP category 5/5e, UTP category 5e/6+ (maximum 100m) |
| auto_negotiation | Yes (AUTO MDI/MDIX) |
| power_supply | External power adapter (9VDC/0.6A) |
| power_consumption | Maximum 9.27W at 220V/50Hz |
| cooling | Fanless |
| dimensions | 286 × 111.7 × 25.4mm (W × D × H) |
| mounting | Desktop or wall mount capable |
| casing | Durable metal |
| warranty | 60 months |
Key Features
Ideal For
FAQs
Is the TP-Link TL-SG116E managed or unmanaged?
The TL-SG116E is an unmanaged switch, meaning it requires no configuration and operates on a plug-and-play basis. However, it includes L2 features such as VLAN support, QoS, and IGMP snooping that provide basic network management capabilities without the complexity of fully managed switches.
How many VLANs does the TL-SG116E support?
The switch supports up to 32 VLANs simultaneously, allowing you to segment your network into separate broadcast domains for improved security and traffic management.
What is the switching capacity of the TL-SG116E?
The TL-SG116E has a switching capacity of 32Gbps and a packet forwarding rate of 23.81Mpps, providing sufficient throughput for typical small office and workgroup environments.
Does the TL-SG116E have a fan, and how much power does it consume?
The switch is fanless, which means it operates silently and has no moving parts to maintain or replace. Maximum power consumption is 9.27W at 220V/50Hz, making it energy-efficient for continuous operation.
Can I use the TL-SG116E with standard Ethernet cables?
Yes, the switch supports standard UTP category 5e and category 6 Ethernet cables up to 100 metres in length. It features auto-negotiation and auto MDI/MDIX, meaning it automatically detects and adapts to cable types without manual configuration.
What QoS features does the TL-SG116E offer?
The switch supports port-based QoS, 802.1p priority, DSCP priority, 4 priority queues, rate limiting, and storm control. These features allow you to prioritise critical traffic and prevent network congestion.
Is the TL-SG116E suitable for wall mounting?
Yes, the switch can be mounted on a wall or used as a desktop unit. Its compact metal casing (286 × 111.7 × 25.4mm) and professional appearance make it suitable for visible installation in office environments.
What warranty does the TL-SG116E include?
The switch is backed by a 60-month (5-year) manufacturer's warranty, reflecting TP-Link's confidence in the product's reliability and build quality.
