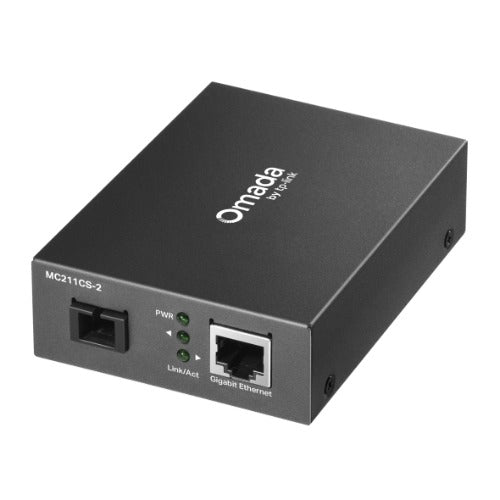

TP-Link Omada Gigabit WDM Media Converter
TP-Link Omada Gigabit WDM Media Converter
SKU:NWTL-MC211CS-2
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-MC211CS-2 |
| Availability | In Stock |
Overview
- The TP-Link Omada Gigabit WDM Media Converter is a reliable solution for extending Gigabit Ethernet networks over single-fibre optic cables. Using WDM technology, it transmits and receives data simultaneously on a single fibre strand, reducing infrastructure costs and simplifying deployment in existing fibre networks.
Available in two distance variants—2 km and 20 km—the converter suits both short campus extensions and longer-distance deployments. The auto-negotiation RJ45 port supports standard Gigabit speeds with automatic MDI/MDIX detection, eliminating the need for crossover cables.
Ideal for IT managers and network engineers, this converter provides a straightforward way to extend network reach without significant capital investment in additional fibre infrastructure. The 3-year warranty ensures long-term operational confidence.
Specifications
| Brand | TP-Link |
|---|---|
| Model | MC211CS / MC212CS |
| Product Type | Gigabit WDM Media Converter |
| Ethernet Interface | 1× 10/100/1000Mbps Auto-Negotiation RJ45 |
| Fibre Connection | Single-Mode Fibre (WDM) |
| Maximum Distance | 2 km (MC211CS-2 / MC212CS-2) or 20 km (MC211CS-20 / MC212CS-20) |
| Transmission Technology | WDM (Wavelength Division Multiplexing) |
| Auto-Negotiation | Yes (Half-Duplex/Full-Duplex) |
| MDI/MDIX | Auto-detection supported |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What is a WDM media converter and how does it work?
A WDM (Wavelength Division Multiplexing) media converter allows transmission and reception of data over a single fibre optic cable by using different light wavelengths for each direction. This eliminates the need for dual-fibre deployments, reducing infrastructure costs.
What is the difference between the 2 km and 20 km variants?
The MC211CS-2 / MC212CS-2 models extend network connectivity up to 2 km, suitable for campus or building-to-building links. The MC211CS-20 / MC212CS-20 models extend up to 20 km, ideal for longer-distance network deployments.
Do I need crossover cables with this converter?
No. The auto-negotiation RJ45 port with Auto-MDI/MDIX support automatically detects and corrects cable orientation, eliminating the need for crossover cables.
What speeds does this converter support?
The converter supports full Gigabit Ethernet speeds of 10/100/1000 Mbps with auto-negotiation, automatically adjusting to the speed of connected devices.
Is the TP-Link Omada media converter suitable for existing fibre networks?
Yes. If you already have single-mode fibre infrastructure in place, this converter is a cost-effective way to extend Gigabit network connectivity without installing additional fibre cables.
What warranty is included?
The TP-Link Omada Gigabit WDM Media Converter includes a 3-year manufacturer's warranty, providing long-term peace of mind for your network infrastructure.
