Antec GPU Bracket Dagger Black ARGB 5V Support
Antec GPU Bracket Dagger Black ARGB 5V Support
SKU:AT-HGPUH-ARGB-BK
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Antec |
|---|---|
| Category | Cases & Accessories |
| SKU | AT-HGPUH-ARGB-BK |
| Availability | Out of Stock |
Overview

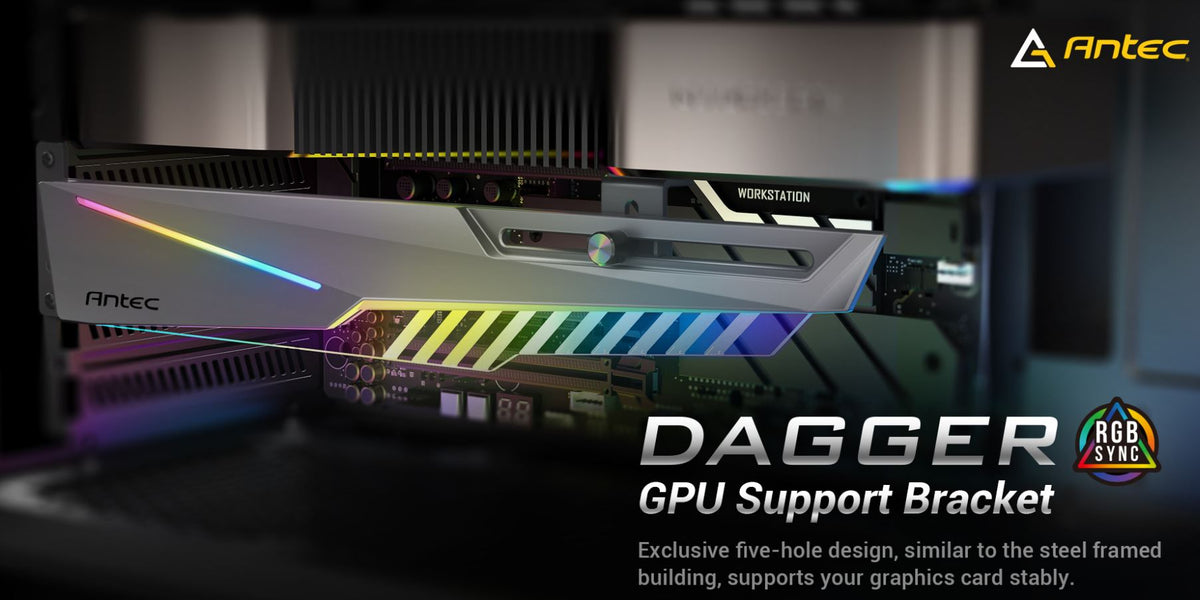

- The Antec GPU Bracket Dagger is a precision-engineered support bracket designed to eliminate graphics card sagging and bending in horizontal mounting configurations. It features addressable RGB lighting with geometric twill decoration and supports modern high-performance GPUs including RTX 40/30 and RX 7000/6000 series cards.
The bracket's 5-hole locking arm provides rigid support while the adjustable slide-type structure accommodates GPUs between 170–270mm in width and 40–65mm in height. Tool-less height adjustment (up to 30mm) makes installation and fine-tuning simple, and integrated silicone pads protect your graphics card from scratches and impact.
Built for universal compatibility with ATX, MATX, and ITX cases, the Dagger bracket works across most modern PC chassis. The 5V 3-Pin ARGB connector supports daisy chaining and synchronisation with mainstream RGB control ecosystems, allowing seamless integration into existing lighting systems.
Specifications
| Brand | Antec |
|---|---|
| Model | GPU Bracket Dagger Black ARGB |
| Product Type | GPU Support Bracket |
| Bracket Design | 5-hole horizontal mount with slide-type support structure |
| Width Support Range | 170–270mm |
| Height Support Range | 40–65mm |
| Height Adjustment | 30mm tool-less adjustment |
| Lighting Type | Addressable RGB (ARGB) |
| RGB Connector | 5V 3-Pin |
| RGB Features | ARGB sync and daisy chain support |
| Adjustment Type | Tool-less screws with silicone pads |
| Pad Material | Silicone (scratch-resistant, shock-absorbing) |
| Case Compatibility | ATX, MATX, ITX |
| GPU Compatibility | RTX 40/30 series, RX 7000/6000 series |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What graphics cards are compatible with the Antec Dagger bracket?
The bracket is compatible with RTX 40 and 30 series, RX 7000 and RX 6000 series GPUs. It supports cards between 170–270mm in width and 40–65mm in height. Check the Antec specification sheet for full compatibility details with your specific model.
Do I need tools to install and adjust the bracket?
No. The Dagger bracket features tool-less design with adjustable screws that can be flexibly adjusted by hand to fit GPUs of different thicknesses and heights without requiring additional tools.
How does the RGB lighting work?
The bracket features 5V 3-Pin addressable RGB (ARGB) lighting with daisy chain support. It connects to compatible ARGB headers on your motherboard or RGB controller, allowing synchronisation with your existing RGB ecosystem.
Will the bracket work in my PC case?
Yes. The Dagger bracket is designed for universal compatibility with traditional ATX, MATX, and ITX cases. Its adjustable support column and flexible design fit most modern PC chassis.
How much height adjustment does the bracket offer?
The adjustable support column provides up to 30mm of height adjustment to accommodate GPUs of varying thickness and ensure proper fit and support.
Does the bracket protect my graphics card?
Yes. The bracket includes integrated silicone pads that are scratch-resistant and shock-absorbing, protecting your graphics card from damage during installation and operation.
What warranty does the Antec Dagger bracket include?
The bracket includes a 12-month manufacturer warranty covering defects in materials and workmanship.
