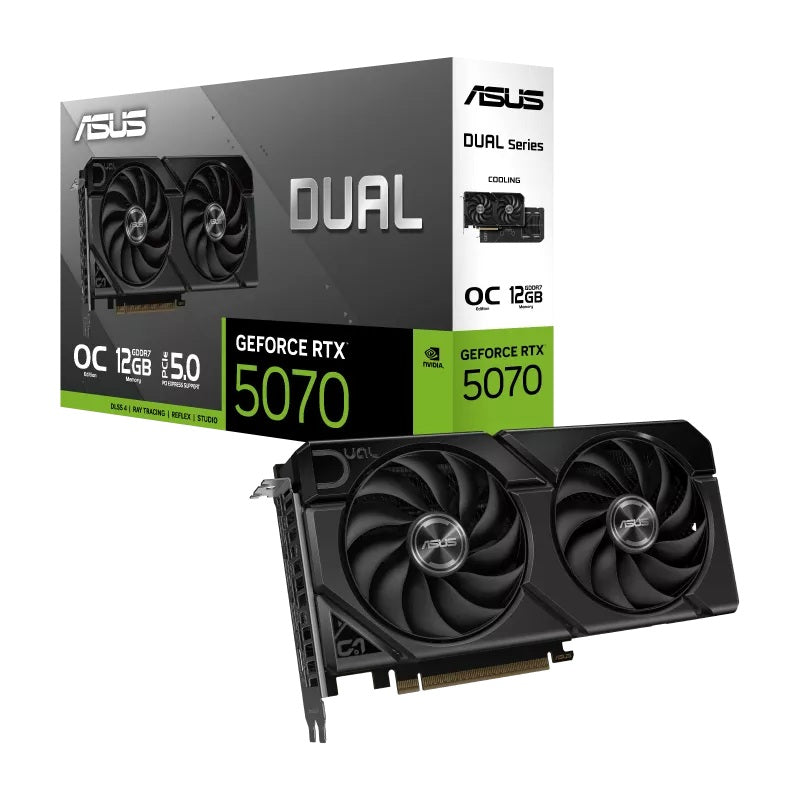

ASUS Dual RTX5070 OC 12G-EVO Graphics Card 12GB
ASUS Dual RTX5070 OC 12G-EVO Graphics Card 12GB
SKU:VCA-RTX5070-O12G-EVO-DU
The ASUS Dual RTX5070 OC 12G-EVO is a compact graphics card engineered for high-performance computing. With 12GB GDDR7 memory, 6144 CUDA cores, and PCIe 5.0 support, it delivers exceptional graphics performance in a space-efficient 2.5-slot form factor ideal for professional workstations and compact builds.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | ASUS |
|---|---|
| Category | Video/Graphics Cards |
| SKU | VCA-RTX5070-O12G-EVO-DU |
| Availability | In Stock |
Overview
- The ASUS Dual RTX5070 OC 12G-EVO is a high-performance graphics card built on NVIDIA's latest architecture. It combines 12GB of GDDR7 memory, 6144 CUDA cores, and PCIe 5.0 connectivity to deliver substantial computational power for professional and enthusiast applications.
Designed with compact form factor in mind, the 2.5-slot design and SFF readiness make it ideal for space-constrained builds without compromising thermal performance. Advanced dual Axial-tech fans ensure efficient heat dissipation, maintaining stable operation under demanding workloads.
This card supports up to 4 simultaneous displays and includes HDMI 2.1b and DisplayPort 2.1b connectivity. The OC mode frequency of 2572 MHz provides additional performance headroom for users seeking maximum throughput. ASUS GPU Tweak III software enables detailed performance tuning and monitoring.
With a recommended 750W power supply and single 16-pin connector, the RTX5070 offers an efficient balance of performance and power consumption, making it suitable for professional workstations, content creation studios, and performance-focused computing environments.
Specifications
| Brand | ASUS |
|---|---|
| Model | Dual RTX5070 OC 12G-EVO |
| GPU Manufacturer | NVIDIA |
| GPU Architecture | GeForce RTX 5070 |
| CUDA Cores | 6144 |
| AI Performance | 988 TOPs |
| Video Memory | 12GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface | 192-bit |
| Memory Bandwidth | 672 GB/s |
| Engine Clock OC Mode | 2572 MHz |
| Engine Clock Default Mode | 2542 MHz |
| Bus Standard | PCI Express 5.0 |
| Power Connectors | 1 x 16-pin |
| Recommended PSU | 750W |
| Form Factor | 2.5 Slot |
| SFF Compatible | Yes |
| Dimensions | 229 x 120 x 50 mm |
| Max Display Resolution | 7680 x 4320 |
| HDMI Outputs | 1 x HDMI 2.1b |
| DisplayPort Outputs | 3 x DisplayPort 2.1b |
| Maximum Simultaneous Displays | 4 |
| HDCP Support | 2.3 |
| OpenGL Version | 4.6 |
| NVLink Support | No |
| Warranty | 12 months |
| Included Accessories | Speedsetup Manual, Thank You Card, Adapter Cable (1 to 2) |
Key Features
Ideal For
FAQs
What is the power requirement for the ASUS Dual RTX5070 OC 12G-EVO?
ASUS recommends a 750W power supply for systems running this graphics card. The card requires a single 16-pin power connector. For tailored power recommendations specific to your overall system configuration, use ASUS's power supply calculator on their support website.
Is this graphics card suitable for small-form-factor PCs?
Yes. The RTX5070 features a compact 2.5-slot design and is SFF compatible, making it an excellent choice for space-constrained builds without sacrificing thermal performance or cooling efficiency.
How many displays can the RTX5070 support simultaneously?
The card supports up to 4 simultaneous displays via 1 x HDMI 2.1b output and 3 x DisplayPort 2.1b outputs, enabling multi-monitor setups for professional and creative workflows.
What software tools are included for managing the RTX5070?
ASUS provides GPU Tweak III for performance monitoring and tuning, MuseTree for organisation, and NVIDIA's GeForce Game Ready Driver and Studio Driver. All software must be downloaded from the ASUS support website.
What is the difference between OC mode and default mode clock speeds?
OC (Overclock) mode runs at 2572 MHz for maximum performance. Default mode uses a 2542 MHz boost clock for balanced performance and thermal efficiency. Users can switch between modes via ASUS GPU Tweak III software.
Is this card suitable for AI and machine learning applications?
Yes. With 6144 CUDA cores and 988 AI TOPs, the RTX5070 is well-suited for AI inference, machine learning model training, and computational workloads. NVIDIA's CUDA toolkit and libraries provide full software support.
Does the RTX5070 support NVLink for multi-GPU setups?
No. This card does not support NVLink or Crossfire, so it is designed for single-GPU systems. For multi-GPU workloads, alternative NVIDIA solutions would be required.
What warranty coverage is included?
The ASUS Dual RTX5070 OC 12G-EVO includes a 12-month manufacturer's warranty covering hardware defects under normal operating conditions.
