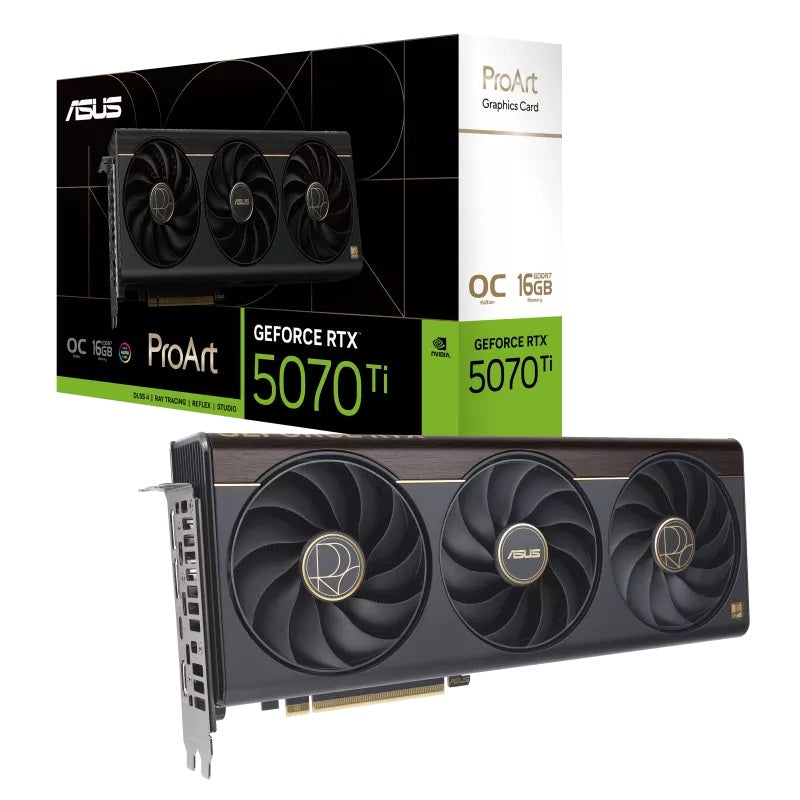

ASUS ProArt GeForce RTX 5070 Ti 16GB OC Graphics Card
ASUS ProArt GeForce RTX 5070 Ti 16GB OC Graphics Card
SKU:VCA-RTX5070TI-O16G-PRO
The ASUS ProArt GeForce RTX 5070 Ti is a professional-grade graphics card with 16GB GDDR7 memory and 8960 CUDA cores. Featuring a compact 2.5-slot design, advanced cooling, and USB Type-C connectivity, it delivers high-performance computing for content creation and professional workflows.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | ASUS |
|---|---|
| Category | Video/Graphics Cards |
| SKU | VCA-RTX5070TI-O16G-PRO |
| Availability | Out of Stock |
Overview
- The ASUS ProArt GeForce RTX 5070 Ti combines professional-grade performance with a space-efficient design. Built on the RTX 50 Series architecture, it delivers 8960 CUDA cores and 16GB of high-speed GDDR7 memory for demanding compute and graphics workloads. The compact 2.5-slot form factor makes it suitable for both full-scale towers and small form factor builds without compromising cooling performance.
Designed for content creators, engineers, and researchers, this card features triple Axial-tech fans, a vapour chamber, and phase-change thermal management for reliable operation under sustained loads. Native PCIe 5.0, dual DisplayPort 2.1b, and HDMI 2.1b connectivity support modern multi-display workflows, while the integrated USB Type-C port streamlines data transfer for content creation pipelines.
With 36-month manufacturer warranty and 850W recommended PSU capacity, the ProArt RTX 5070 Ti is built for professional environments requiring stability, performance, and longevity. ASUS GPU Tweak III enables fine-grained performance tuning, whilst AURA SYNC RGB lighting integrates into existing system aesthetics.
Specifications
| Graphics Engine | NVIDIA GeForce RTX 5070 Ti |
|---|---|
| Bus Standard | PCI Express 5.0 |
| Video Memory | 16GB GDDR7 |
| Memory Interface | 256-bit |
| Memory Speed | 28 Gbps |
| CUDA Cores | 8960 |
| Engine Clock (OC Mode) | 2610 MHz |
| Engine Clock (Boost) | 2588 MHz |
| Maximum Resolution | 7680 x 4320 |
| Maximum Display Support | 4 simultaneous displays |
| HDMI Outputs | 1 x HDMI 2.1b |
| DisplayPort Outputs | 2 x DisplayPort 2.1b |
| USB Type-C | 1 x USB Type-C |
| HDCP Support | HDCP 2.3 |
| Cooling System | Triple Axial-tech fans with vapour chamber and phase-change thermal pad |
| Physical Dimensions | 304 x 126 x 50 mm |
| Slot Configuration | 2.5 Slot |
| SFF Compatible | Yes |
| Power Connectors | 1 x 16-pin |
| Recommended PSU | 850W |
| OpenGL Support | OpenGL 4.6 |
| NVLink Support | No |
| Crossfire Support | No |
| RGB Lighting | AURA SYNC (ARGBW) |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
Is the ASUS ProArt RTX 5070 Ti compatible with small form factor (SFF) cases?
Yes, the ProArt RTX 5070 Ti is specifically designed to be SFF-ready. Its compact 2.5-slot design allows it to fit comfortably in space-constrained builds without sacrificing cooling performance.
What PSU capacity do I need to run this graphics card?
ASUS recommends an 850W power supply unit. This recommendation assumes a fully overclocked GPU and CPU system. For specific recommendations tailored to your configuration, consult the ASUS PSU selector tool.
How many displays can I connect to this card?
The ProArt RTX 5070 Ti supports up to 4 simultaneous displays via its combination of HDMI 2.1b, dual DisplayPort 2.1b, and USB Type-C connections, supporting resolutions up to 7680 x 4320.
What is included in the box?
The package includes the graphics card, a speed-setup manual, a ProArt graphics card holder, ASUS Velcro hook and loop strips, an adapter cable (1 to 3), and a thank you card. You'll need to download drivers and software from the ASUS support site.
Is this card suitable for gaming or just professional applications?
Whilst the ProArt series is optimised for professional workloads like 3D rendering, AI, and content creation, the RTX 5070 Ti can also handle gaming with exceptional performance. NVIDIA GeForce Game Ready Drivers are available for gaming support.
What kind of cooling does this card have?
The card features triple Axial-tech fans, a vapour chamber, and a phase-change GPU thermal pad, providing efficient heat dissipation suitable for sustained professional workloads.
Does this card support NVIDIA NVLink?
No, the ProArt RTX 5070 Ti does not support NVLink or AMD Crossfire. It is designed for single-card operation.
What is the warranty coverage?
The ASUS ProArt GeForce RTX 5070 Ti includes a 36-month manufacturer's warranty, providing comprehensive coverage for professional deployments.
