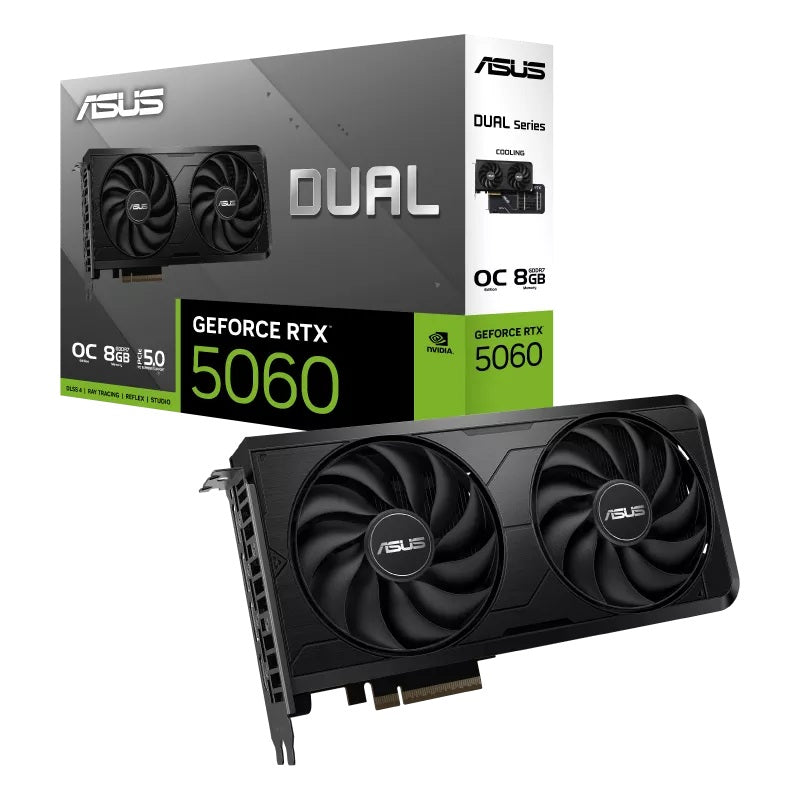

ASUS GeForce RTX 5060 EVO OC 8GB Graphics Card
ASUS GeForce RTX 5060 EVO OC 8GB Graphics Card
SKU:VCA-RTX5060-08G-EVO-DU
The ASUS Dual GeForce RTX 5060 EVO OC is a compact 2.1-slot graphics card with 8GB GDDR7 memory and 3840 CUDA cores. Featuring advanced thermal cooling with dual Axial-tech fans and PCIe 5.0 support, it delivers strong performance for gaming and creative workloads in space-constrained builds.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | ASUS |
|---|---|
| Category | Video/Graphics Cards |
| SKU | VCA-RTX5060-08G-EVO-DU |
| Availability | In Stock |
Overview
- The ASUS Dual GeForce RTX 5060 EVO OC delivers professional-grade graphics performance in a space-efficient 2.1-slot design. Built on the latest NVIDIA architecture, this card combines 3840 CUDA cores with 8GB of GDDR7 memory to handle demanding gaming, rendering, and AI workloads effectively.
Thermal performance is a key strength. Dual Axial-tech fans and an optimised heatsink keep the GPU running cool under load, whilst maintaining quiet operation. The compact form factor makes it ideal for smaller cases and system builds without sacrificing cooling capacity.
Factory overclocked to 2565MHz, the RTX 5060 EVO OC arrives ready for immediate performance gains. PCIe 5.0 support ensures compatibility with current and next-generation systems, whilst the card's extensive display connectivity—including HDMI 2.1b and DisplayPort 2.1b—supports up to four monitors simultaneously.
With a recommended 550W PSU and straightforward single 8-pin power connector, this card integrates easily into most mid-range systems. ASUS GPU Tweak III software provides additional overclocking and monitoring controls for users seeking fine-tuned performance.
Specifications
| GPU | NVIDIA GeForce RTX 5060 |
|---|---|
| CUDA Cores | 3840 |
| Memory | 8GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface | 128-bit |
| AI Performance | 614 TOPs |
| Engine Clock (OC Mode) | 2565MHz |
| Engine Clock (Default/Boost) | 2535MHz |
| Bus Standard | PCIe 5.0 |
| Maximum Display Support | 4 displays |
| Display Outputs | 1x HDMI 2.1b, 3x DisplayPort 2.1b |
| Digital Max Resolution | 7680 x 4320 |
| HDCP Support | Yes (2.3) |
| OpenGL | OpenGL 4.6 |
| Form Factor | 2.1 Slot |
| Dimensions | 225 x 120 x 42 mm |
| Power Connectors | 1x 8-pin |
| Recommended PSU | 550W |
| NVLink / Crossfire Support | No |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What is the power consumption of the RTX 5060 EVO OC?
ASUS recommends a 550W PSU for this graphics card. The card uses a single 8-pin power connector. For a more tailored PSU recommendation based on your full system configuration, use the wattage calculator on the ASUS support website.
Will this graphics card fit in my compact PC case?
Yes. The RTX 5060 EVO OC is designed in a compact 2.1-slot form factor, measuring 225 x 120 x 42 mm. This makes it suitable for smaller cases and space-constrained builds whilst maintaining effective cooling.
How many monitors can I connect to this graphics card?
The RTX 5060 EVO OC supports up to 4 displays simultaneously. It features 1x native HDMI 2.1b and 3x native DisplayPort 2.1b connectors, providing flexible multi-monitor configurations.
Is this card suitable for AI and machine learning workloads?
Yes. With 3840 CUDA cores and 614 TOPs of AI performance, the RTX 5060 EVO OC is capable of accelerating AI inference tasks and machine learning workloads that leverage NVIDIA CUDA.
What cooling solution does this card use?
The RTX 5060 EVO OC features dual Axial-tech fans paired with an optimised heatsink to efficiently manage thermal loads. This design delivers effective cooling performance in a compact footprint.
What software is included with the RTX 5060 EVO OC?
The card includes ASUS GPU Tweak III for performance tuning and monitoring, MuseTree software, and NVIDIA GeForce Game Ready and Studio Drivers. These can be downloaded from the ASUS support website.
Is this card compatible with older PCIe systems?
Yes. The RTX 5060 EVO OC uses PCIe 5.0 but is backward compatible with PCIe 4.0 and earlier slots, though performance will be limited by the older bus standard.
