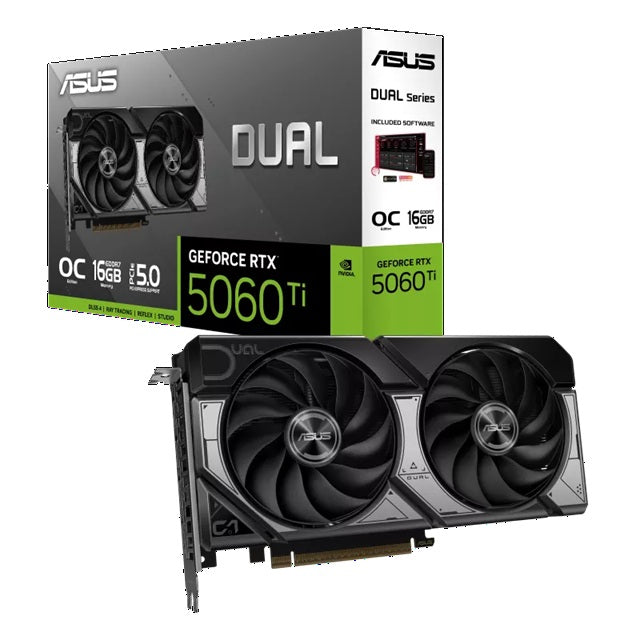

ASUS Dual GeForce RTX 5060 Ti 16GB Graphics Card
ASUS Dual GeForce RTX 5060 Ti 16GB Graphics Card
SKU:VCA-RTX5060TI-O16G-DU
The ASUS Dual GeForce RTX 5060 Ti 16GB is a compact graphics card delivering powerful thermal performance with advanced cooling solutions. Featuring 4608 CUDA cores, GDDR7 memory, and PCIe 5.0 support, it's ideal for gamers and creative professionals seeking high-performance graphics in a compact 2.5-slot form factor.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | ASUS |
|---|---|
| Category | Video/Graphics Cards |
| SKU | VCA-RTX5060TI-O16G-DU |
| Availability | Out of Stock |
Overview
- The ASUS Dual GeForce RTX 5060 Ti 16GB is a factory-overclocked graphics card engineered for performance and compact form factor compatibility. With 16GB of GDDR7 memory, 4608 CUDA cores, and advanced cooling technology featuring dual Axial-tech fans, it delivers robust thermal performance in a space-efficient 2.5-slot design. The card supports PCIe 5.0, HDMI 2.1b, and triple DisplayPort 2.1b connectivity, enabling multi-display configurations and next-generation bandwidth utilisation.
Designed for gamers and creative professionals, the ASUS Dual RTX 5060 Ti provides heavyweight graphics performance without requiring excessive case space. The OC edition operates at 2632 MHz in OC mode, offering enhanced performance out of the box while maintaining efficient power consumption with a recommended 550W PSU. OpenGL 4.6 support ensures broad compatibility with modern applications and games.
Specifications
| GPU | NVIDIA GeForce RTX 5060 Ti |
|---|---|
| CUDA Cores | 4608 |
| AI Performance | 759 TOPs |
| Video Memory | 16GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface | 128-bit |
| Engine Clock (Boost) | 2602 MHz |
| Engine Clock (OC Mode) | 2632 MHz |
| Bus Standard | PCI Express 5.0 |
| OpenGL Version | OpenGL 4.6 |
| Maximum Resolution | 7680 x 4320 |
| HDMI Outputs | 1 x HDMI 2.1b |
| DisplayPort Outputs | 3 x DisplayPort 2.1b |
| Maximum Display Support | 4 |
| HDCP Support | HDCP 2.3 |
| Form Factor | 2.5 Slot |
| Dimensions | 229 x 120 x 50 mm |
| Power Connector | 1 x 8-pin |
| Recommended PSU | 550W |
| NVLink / Crossfire Support | No |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What is the power requirement for the ASUS Dual RTX 5060 Ti 16GB?
A recommended 550W power supply is sufficient for this graphics card. This recommendation is based on a fully overclocked GPU and CPU system configuration. For tailored wattage guidance, refer to ASUS PSU selection tools.
How many displays can this graphics card support?
The RTX 5060 Ti supports up to 4 displays simultaneously. It features 1 x HDMI 2.1b and 3 x DisplayPort 2.1b outputs for flexible multi-display configurations.
What is the difference between OC mode and Default mode?
OC mode runs at 2632 MHz for enhanced performance, while Default mode operates at 2602 MHz. The OC edition is factory-tuned for improved gaming and creative performance out of the box.
Is this card suitable for compact PC builds?
Yes. The ASUS Dual RTX 5060 Ti features a compact 2.5-slot form factor, making it ideal for space-constrained builds while delivering heavyweight graphics performance.
What cooling solution does this card use?
The card features dual Axial-tech fans that optimise airflow to the heatsink, providing efficient thermal performance advanced from ASUS flagship graphics cards.
Is this card compatible with PCIe 4.0 systems?
Yes, the card is backward compatible with PCIe 4.0 systems. However, it fully supports PCIe 5.0 for maximum bandwidth utilisation in newer systems.
