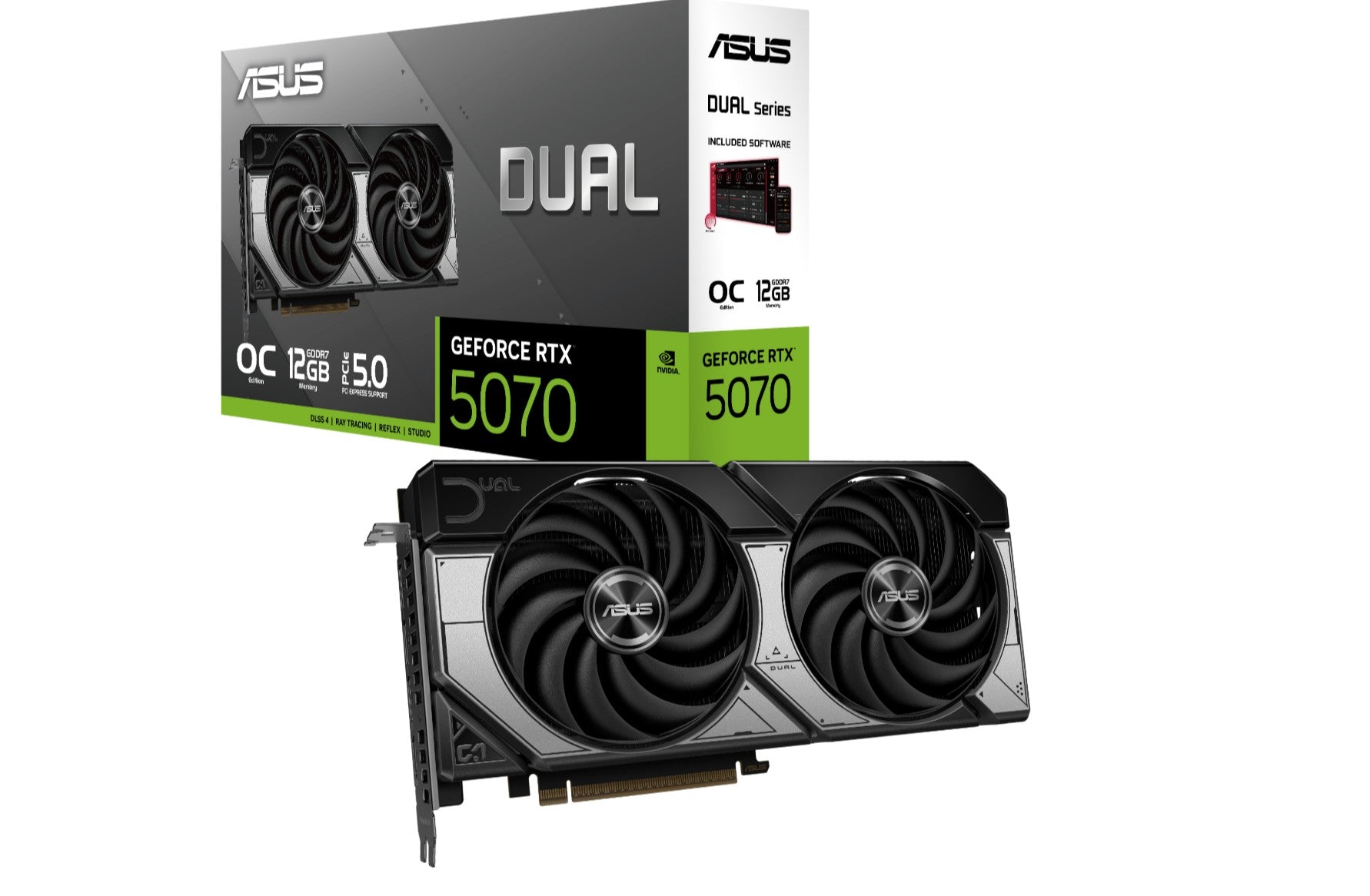

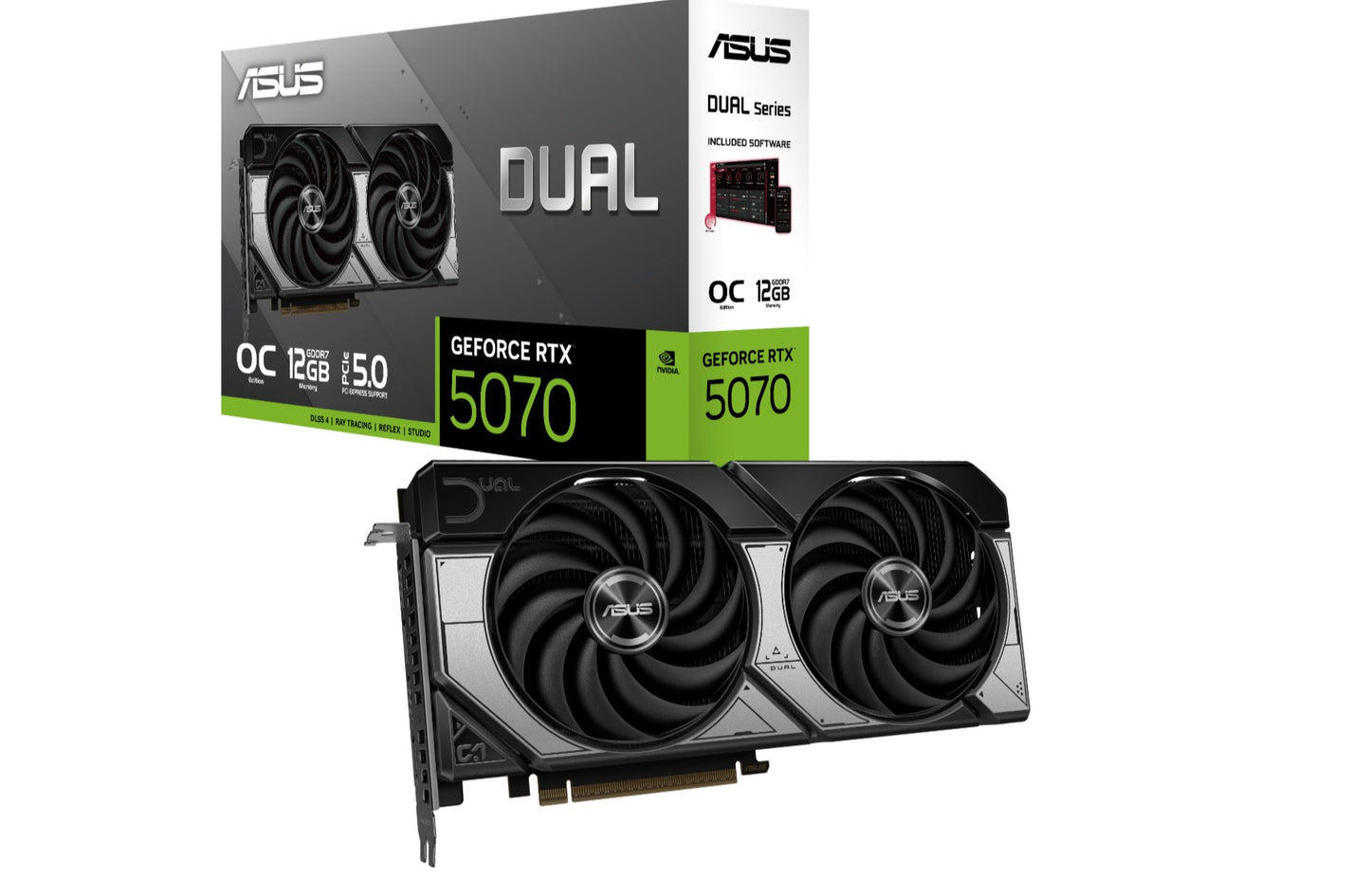

ASUS NVIDIA GeForce RTX 5070 12GB GDDR7 Graphics Card
ASUS NVIDIA GeForce RTX 5070 12GB GDDR7 Graphics Card
SKU:VCA-RTX5070-O12G-DU
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | ASUS |
|---|---|
| Category | Video/Graphics Cards |
| SKU | VCA-RTX5070-O12G-DU |
| Availability | Out of Stock |
Overview
- The ASUS NVIDIA GeForce RTX 5070 is a powerful graphics accelerator built on the latest NVIDIA architecture. With 12GB of GDDR7 memory and 6144 CUDA cores, it delivers exceptional performance for both professional compute workloads and demanding gaming. The card supports up to 4 simultaneous displays and features native HDMI 2.1b and DisplayPort 2.1b connectivity.
Designed for professionals, this GPU excels in AI acceleration, machine learning, 3D rendering, and video processing. The 1000 AI TOPs rating makes it suitable for accelerating AI model inference and training. PCIe 5.0 support ensures maximum bandwidth for data-intensive applications.
The DUAL cooler design and 2.53-slot form factor provide efficient cooling while maintaining compatibility with most modern systems. ASUS GPU Tweak III software allows fine-tuned overclocking for users seeking additional performance. With a 750W PSU recommendation and single 16-pin power connector, integration into modern workstations is straightforward.
Specifications
| Graphics Processing Unit | NVIDIA GeForce RTX 5070 |
|---|---|
| Video Memory | 12GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface | 192-bit |
| CUDA Cores | 6144 |
| AI Performance | 1000 TOPs |
| Engine Clock (OC Mode) | 2572 MHz |
| Engine Clock (Default Mode) | 2542 MHz |
| Bus Standard | PCI Express 5.0 |
| Maximum Digital Resolution | 7680 x 4320 |
| HDMI Ports | 1x HDMI 2.1b |
| DisplayPort Connections | 3x DisplayPort 2.1b |
| Maximum Simultaneous Displays | 4 |
| HDCP Support | Yes (2.3) |
| OpenGL Version | OpenGL 4.6 |
| NVLink/Crossfire Support | No |
| Physical Dimensions | 249 x 126 x 50.6 mm |
| Form Factor | 2.53 Slot |
| SFF Ready | Compatible |
| Power Connector | 1x 16-pin |
| Recommended PSU | 750W |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What is the difference between OC and default clock modes?
The RTX 5070 operates at 2542 MHz in default mode and can boost to 2572 MHz in OC (overclocked) mode for additional performance. You can adjust these settings using ASUS GPU Tweak III software based on your thermal and power requirements.
Does this card support multiple monitors?
Yes, the RTX 5070 supports up to 4 simultaneous displays using its combination of HDMI 2.1b and DisplayPort 2.1b connections, making it ideal for multi-monitor professional workstations.
What power supply do I need?
ASUS recommends a minimum 750W power supply for systems with this GPU. This recommendation assumes a fully overclocked GPU and CPU configuration. Your specific requirements may vary based on other system components.
Is this card suitable for AI and machine learning?
Yes, with 1000 AI TOPs and 6144 CUDA cores, this GPU is well-suited for AI model training and inference, making it popular for machine learning and data science applications.
What cooling solution does this card use?
This card features the ASUS DUAL cooler design, which provides efficient thermal management in a compact 2.53-slot form factor.
Does the RTX 5070 support PCIe 5.0?
Yes, this card uses PCIe 5.0, providing double the bandwidth of PCIe 4.0 for faster data transfers and maximum performance potential.
What software is included?
The package includes ASUS GPU Tweak III for overclocking, MuseTree for GPU monitoring, and access to GeForce Game Ready Driver and Studio Driver, which can be downloaded from the ASUS support site.
