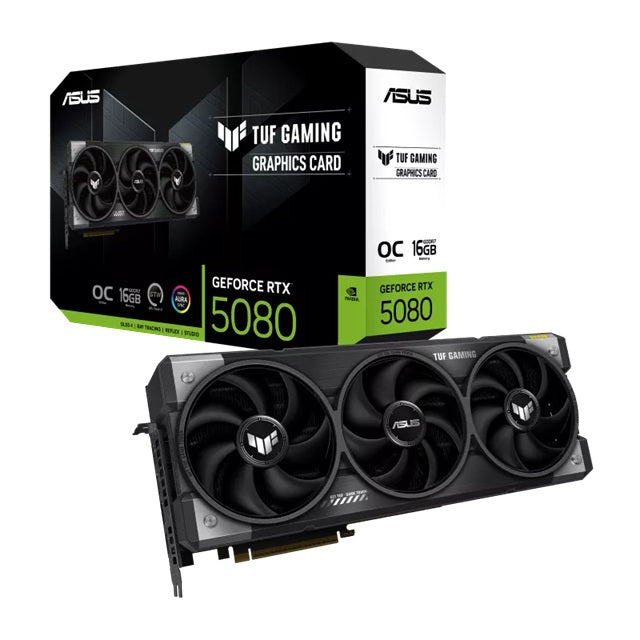

ASUS TUF Gaming RTX 5080 16GB GDDR7 OC Edition
ASUS TUF Gaming RTX 5080 16GB GDDR7 OC Edition
SKU:VCA-RTX5080-O16G-TUF
The ASUS TUF Gaming RTX 5080 is a high-performance graphics card designed for professional 3D work, content creation, and advanced gaming. Featuring 10,752 CUDA cores, 16GB GDDR7 memory, and PCI Express 5.0 support, it delivers exceptional compute performance for demanding workflows.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | ASUS |
|---|---|
| Category | Video/Graphics Cards |
| SKU | VCA-RTX5080-O16G-TUF |
| Availability | Out of Stock |
Overview
- The ASUS TUF Gaming RTX 5080 OC Edition delivers enterprise-grade performance in a compact, well-engineered package. With 10,752 CUDA cores and 16GB of high-speed GDDR7 memory, it provides the computational power needed for demanding professional applications, AI workloads, and advanced gaming scenarios.
The card features PCI Express 5.0 connectivity, ensuring full bandwidth for data-intensive tasks. Its OC Edition configuration reaches 2730 MHz boost clock, offering higher performance out of the box compared to reference specifications. Four simultaneous displays can be driven via dual HDMI 2.1b and triple DisplayPort 2.1b connections, making it ideal for multi-monitor professional setups.
Built with ASUS's TUF durability standards, the card includes comprehensive software support through ASUS GPU Tweak III for overclocking and monitoring, as well as NVIDIA's latest GeForce Game Ready and Studio drivers. A 36-month warranty and quality accessories underscore ASUS's commitment to reliability and customer satisfaction.
Specifications
| GPU | NVIDIA GeForce RTX 5080 |
|---|---|
| CUDA Cores | 10752 |
| AI Performance | 1801 TOPs |
| Memory | 16GB GDDR7 |
| Memory Speed | 30 Gbps |
| Memory Interface | 256-bit |
| Engine Clock (Boost) | 2730 MHz |
| Engine Clock (Default) | 2700 MHz |
| Bus Standard | PCI Express 5.0 |
| Maximum Resolution | 7680 x 4320 |
| HDMI Outputs | 2x HDMI 2.1b |
| DisplayPort Outputs | 3x DisplayPort 2.1b |
| Maximum Simultaneous Displays | 4 |
| HDCP Support | 2.3 |
| OpenGL Version | 4.6 |
| Power Connectors | 1x 16-pin |
| Recommended PSU | 850W |
| Form Factor | 3.6 Slot |
| Dimensions | 348 x 146 x 72 mm |
| RGB Lighting | ARGB with AURA SYNC |
| Warranty | 36 months |
| NVLink/Crossfire | Not supported |
Key Features
Ideal For
FAQs
What is the power requirement for the ASUS TUF RTX 5080?
ASUS recommends a minimum 850W power supply for this graphics card. This recommendation is based on a fully overclocked GPU and CPU system. For tailored recommendations based on your specific configuration, use ASUS's wattage calculator on their PSU product page.
How many displays can this graphics card support simultaneously?
The RTX 5080 supports up to 4 simultaneous displays using its 2x HDMI 2.1b and 3x DisplayPort 2.1b connectors, making it excellent for multi-monitor professional workstations.
Is this card suitable for AI and machine learning applications?
Yes. With 1801 TOPs of AI performance, 10,752 CUDA cores, and 16GB of high-speed memory, the RTX 5080 is well-suited for AI model training, inference, and data science applications.
What software is included with the RTX 5080?
The card includes ASUS GPU Tweak III for overclocking and monitoring, as well as access to NVIDIA's GeForce Game Ready and Studio drivers. All software is downloaded from ASUS's support website.
What warranty does the ASUS TUF RTX 5080 include?
The card includes a 36-month manufacturer's warranty covering defects in materials and workmanship.
Does the RTX 5080 support NVLink or Crossfire?
No, NVLink and Crossfire are not supported on this model. The card is designed for single-GPU configurations.
What is the OC Edition and how does it differ from the standard model?
The OC Edition comes factory-overclocked to a boost clock of 2730 MHz, compared to the default 2700 MHz. This provides higher performance out of the box, though all other specifications remain the same.
