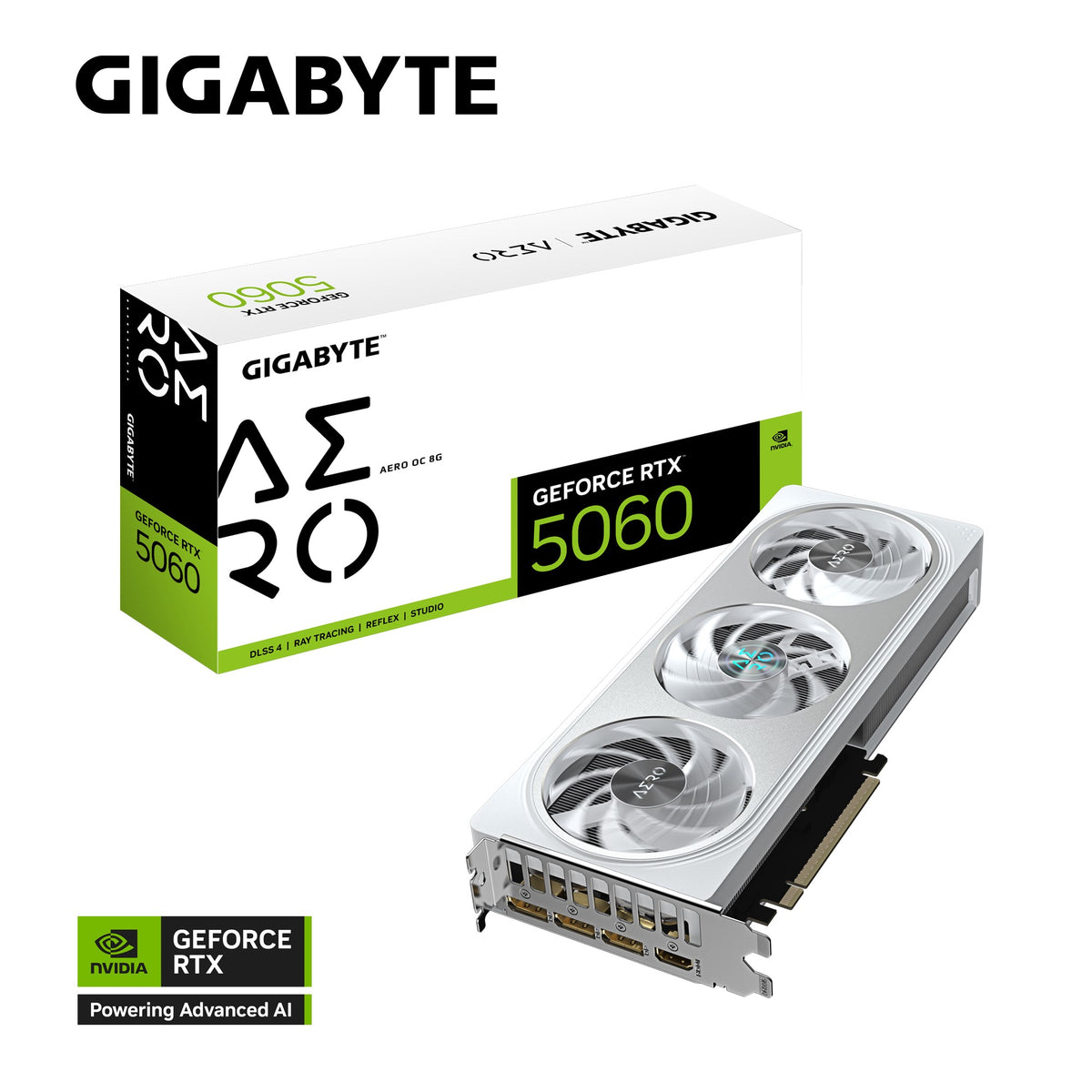

Gigabyte GeForce RTX 5060 AERO OC 8G Graphics Card
Gigabyte GeForce RTX 5060 AERO OC 8G Graphics Card
SKU:VCG-GV-N5060AEROOC-8GD
The Gigabyte GeForce RTX 5060 AERO OC 8G is a high-performance graphics card featuring NVIDIA Blackwell architecture, 8GB GDDR7 memory, and advanced cooling technology. Ideal for gaming, content creation, and AI workloads, it delivers exceptional performance with efficient thermal management.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Video/Graphics Cards |
| SKU | VCG-GV-N5060AEROOC-8GD |
| Availability | In Stock |
Overview
- The Gigabyte GeForce RTX 5060 AERO OC 8G delivers cutting-edge graphics performance powered by NVIDIA's Blackwell architecture. With 3840 CUDA cores, 8GB of GDDR7 memory, and PCI-E 5.0 support, it provides the computational power required for demanding gaming, creative work, and AI applications.
The WINDFORCE cooling system combines server-grade thermal conductive gel, composite copper heat pipes, and Hawk fans to maintain optimal temperatures under load, whilst the Dual BIOS feature allows you to switch between Performance and Silent modes depending on your needs. Reinforced metal construction and a sophisticated exterior design ensure durability and aesthetics.
Supported by DisplayPort 2.1b and HDMI 2.1b outputs, this card handles multi-display setups and next-generation monitors. Fifth-Gen Tensor Cores enable DLSS 4 support for optimised gaming and AI workload performance, whilst Fourth-Gen Ray Tracing Cores deliver immersive visual fidelity in demanding applications.
Specifications
| GPU | NVIDIA GeForce RTX 5060 |
|---|---|
| Architecture | NVIDIA Blackwell |
| CUDA Cores | 3840 |
| Memory Capacity | 8 GB |
| Memory Type | GDDR7 |
| Memory Bus Width | 128 bit |
| Memory Speed | 28 Gbps |
| PCI Express | 5.0 |
| Core Clock | 2595 MHz |
| Maximum Resolution | 7680×4320 |
| Multi-view Support | 4 displays |
| DisplayPort Output | DisplayPort 2.1b x3 |
| HDMI Output | HDMI 2.1b x1 |
| Power Connectors | 8-pin x1 |
| Recommended PSU | 500W |
| Cooling System | WINDFORCE with Hawk fans and thermal conductive gel |
| Card Length | 281 mm |
| Card Width | 117 mm |
| Card Height | 40 mm |
| PCB Form Factor | ATX |
| Dual BIOS | Performance / Silent modes |
| DirectX Support | DirectX 12 |
| OpenGL Support | OpenGL 4.6 |
| RGB Lighting | 16.7M colour options with synchronisation |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What power supply do I need for the RTX 5060 AERO OC?
Gigabyte recommends a minimum 500W power supply. The card features a single 8-pin power connector. Ensure your PSU has sufficient capacity and stable power delivery for reliable operation.
Does this card support multiple monitors?
Yes. The RTX 5060 AERO OC has 3×DisplayPort 2.1b and 1×HDMI 2.1b output, supporting up to 4 displays simultaneously with resolutions up to 7680×4320.
What is the difference between Performance and Silent BIOS modes?
The Dual BIOS feature allows you to switch between Performance mode (optimised for maximum speed and performance) and Silent mode (optimised for quieter cooling and lower power consumption). You can toggle between modes to suit your use case.
Is the RTX 5060 suitable for AI and machine learning workloads?
Yes. The card features Fifth-Gen Tensor Cores and DLSS 4 support, making it capable of accelerating AI inference and training tasks, alongside gaming and creative applications.
What cooling technology is used?
The WINDFORCE cooling system includes Hawk fans with alternate spinning, composite copper heat pipes, a copper base plate, server-grade thermal conductive gel, and 3D active fan controls for efficient heat dissipation.
Is this card future-proof?
The card supports PCI-E 5.0, DisplayPort 2.1b, and HDMI 2.1b, ensuring compatibility with next-generation systems and displays. NVIDIA Blackwell architecture provides strong performance for current and emerging workloads.
Can I customise the RGB lighting?
Yes. The card features 16.7 million customisable colour options and multiple lighting effects, which can be controlled and synchronised via GIGABYTE CONTROL CENTER software.
