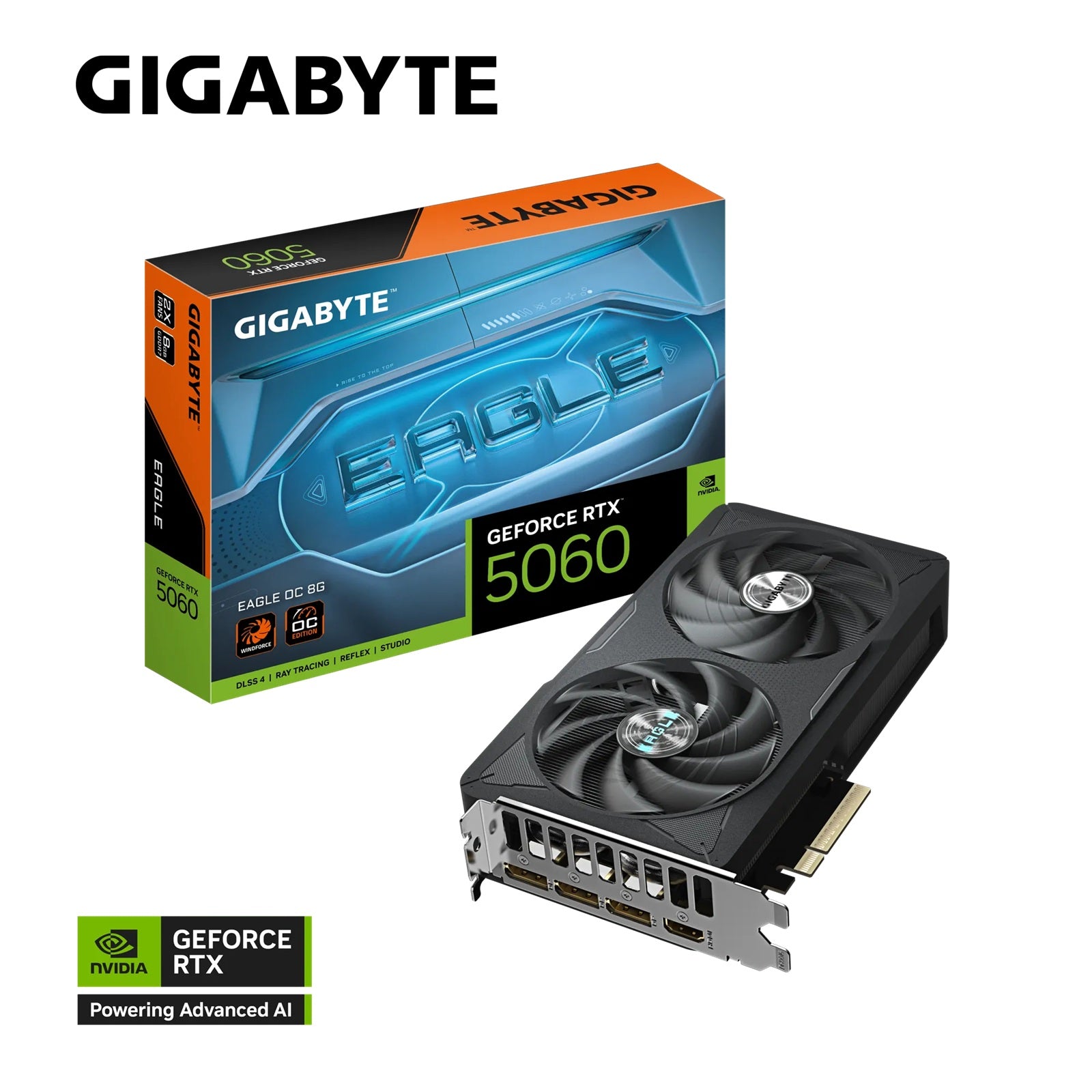

Gigabyte GeForce RTX 5060 Eagle Max OC 8GB Graphics Card
Gigabyte GeForce RTX 5060 Eagle Max OC 8GB Graphics Card
SKU:VCG-N5060EAGLEMAXOC-8GD
The Gigabyte GeForce RTX 5060 Eagle Max OC is a high-performance graphics card powered by NVIDIA's Blackwell architecture. Featuring 8GB GDDR7 memory, PCI-E 5.0 support, and advanced WINDFORCE cooling, it delivers excellent performance for content creators and gaming professionals.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Video/Graphics Cards |
| SKU | VCG-N5060EAGLEMAXOC-8GD |
| Availability | In Stock |
Overview
- The Gigabyte GeForce RTX 5060 Eagle Max OC delivers exceptional performance for demanding professional and creative applications. Built on NVIDIA's latest Blackwell architecture, this card combines cutting-edge DLSS 4 technology with 3840 CUDA cores to accelerate rendering, AI tasks, and complex computations.
With 8GB of fast GDDR7 memory and a 128-bit interface, the RTX 5060 handles large datasets and high-resolution projects efficiently. The PCI-E 5.0 interface ensures maximum data throughput, while quad multi-view capability enables seamless work across multiple displays.
The WINDFORCE cooling system features advanced Hawk fan technology and server-grade thermal conductive gel to maintain optimal temperatures under sustained workloads. A reinforced structure ensures durability and stability in professional environments. With three DisplayPort 2.1b and one HDMI 2.1b output, connectivity options support modern high-refresh displays.
Specifications
| GPU | NVIDIA GeForce RTX 5060 |
|---|---|
| Architecture | Blackwell |
| CUDA Cores | 3840 |
| Core Clock | 2550 MHz |
| Memory Size | 8 GB |
| Memory Type | GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Bus | 128-bit |
| Memory Bandwidth | 448 GB/s |
| PCI-E | PCI-E 5.0 |
| Max Resolution | 7680×4320 |
| Multi-View Support | 4 displays |
| Video Outputs | 3× DisplayPort 2.1b, 1× HDMI 2.1b |
| Power Connectors | 1× 8-pin |
| Recommended PSU | 550W |
| Card Dimensions | 208mm (L) × 120mm (W) × 40mm (H) |
| Form Factor | ATX |
| DirectX | 12 |
| OpenGL | 4.6 |
| Cooling | WINDFORCE with Hawk fan |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What power supply do I need for the RTX 5060 Eagle Max OC?
Gigabyte recommends a minimum 550W power supply. The card draws power via a single 8-pin connector. For system stability, ensure your PSU is from a reputable manufacturer with sufficient headroom for your CPU and other components.
Is this card suitable for content creation and rendering?
Yes. The RTX 5060 is designed for professional applications including video editing, 3D rendering, and AI workloads. Its 3840 CUDA cores and DLSS 4 support accelerate rendering pipelines significantly.
What is DLSS 4 and how does it benefit me?
DLSS 4 is NVIDIA's deep learning super sampling technology that uses AI to upscale lower-resolution images to higher resolutions while maintaining visual quality. It improves performance and frame rates in compatible applications.
Can I use multiple monitors with this card?
Yes. The RTX 5060 supports up to 4 displays simultaneously via its three DisplayPort 2.1b and one HDMI 2.1b output. It's ideal for multi-monitor professional workstations.
What cooling system does this card use?
The card features Gigabyte's WINDFORCE cooling system with an advanced Hawk fan and server-grade thermal conductive gel. This keeps temperatures stable during continuous operation.
Is the RTX 5060 compatible with my motherboard?
The card uses PCI-E 5.0 and is compatible with any system that has a PCI-E slot. Modern motherboards with PCI-E 4.0 or 5.0 are ideal, though backwards compatibility with older slots is maintained.
What resolution does this card support?
The RTX 5060 supports up to 7680×4320 (8K) resolution across multiple displays, making it suitable for high-resolution creative work and professional applications.
