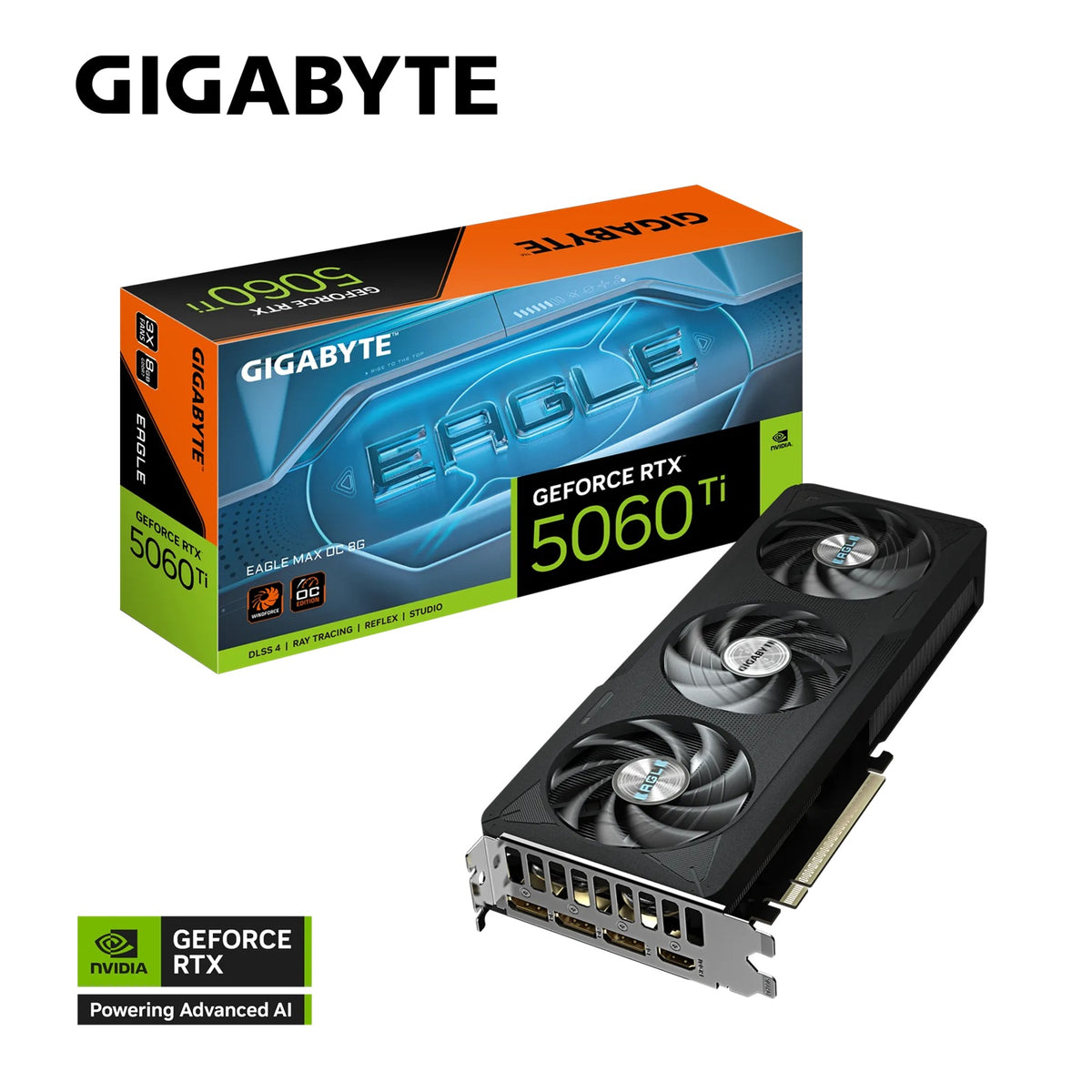

Gigabyte GeForce RTX 5060 Ti EAGLE MAX OC 8GB
Gigabyte GeForce RTX 5060 Ti EAGLE MAX OC 8GB
SKU:VCG-N506TEAGLEMAXOC-8G
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Video/Graphics Cards |
| SKU | VCG-N506TEAGLEMAXOC-8G |
| Availability | In Stock |
Overview
- The Gigabyte GeForce RTX 5060 Ti EAGLE MAX OC 8G combines the latest NVIDIA Blackwell architecture with Gigabyte's proven cooling expertise. With 4608 CUDA cores and 8GB of GDDR7 memory, this card delivers strong performance for gaming, content creation, and professional applications.
The WINDFORCE cooling system features dual Hawk fans and server-grade thermal conductive gel, ensuring stable operation under load. The card supports multiple high-bandwidth outputs including three DisplayPort 2.1b and one HDMI 2.1b connection, enabling multi-display setups for productivity and gaming.
Designed for modern PC systems, it utilises PCI-E 5.0 connectivity for maximum data throughput and includes 3-year manufacturer warranty for peace of mind. The 281mm length and ATX form factor fit standard mid-to-full tower cases.
Specifications
| Graphics Processor | GeForce RTX 5060 Ti |
|---|---|
| GPU Architecture | NVIDIA Blackwell |
| CUDA Cores | 4608 |
| Memory Capacity | 8 GB |
| Memory Type | GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Bus Width | 128-bit |
| Core Clock | 2617 MHz |
| Reference Clock | 2572 MHz |
| PCI Express | PCI-E 5.0 |
| Power Connector | 8-pin |
| Recommended PSU | 650W |
| Display Outputs | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Maximum Resolution | 7680x4320 |
| Multi-Display Support | 4 displays |
| Cooling System | WINDFORCE with dual Hawk fans |
| Card Dimensions | 281 x 115 x 40 mm |
| Form Factor | ATX |
| DirectX Support | DirectX 12 |
| OpenGL Support | OpenGL 4.6 |
| Warranty | 36 months |
| Included Accessories | Quick start guide |
Key Features
Ideal For
FAQs
What is the power requirement for the Gigabyte RTX 5060 Ti EAGLE MAX?
Gigabyte recommends a minimum 650W power supply unit. The card features a single 8-pin power connector for stable operation.
How many displays can this graphics card support?
The RTX 5060 Ti EAGLE MAX supports up to 4 displays simultaneously through its 3x DisplayPort 2.1b and 1x HDMI 2.1b outputs.
What cooling system does this card use?
The card features Gigabyte's WINDFORCE cooling system with dual Hawk fans and server-grade thermal conductive gel for effective heat dissipation.
Is this card compatible with PCI-E 4.0 systems?
Yes, the card is backwards compatible with PCI-E 4.0 and earlier systems, though it will operate at those bus speeds when installed in older systems.
What does DLSS 4 enable?
DLSS 4, powered by the Blackwell architecture, provides AI-accelerated upscaling and frame generation to boost gaming performance whilst maintaining image quality.
What is the warranty coverage?
The Gigabyte GeForce RTX 5060 Ti EAGLE MAX OC includes a 3-year manufacturer's warranty.
Can this card be used for professional workloads?
Yes, the RTX 5060 Ti is suitable for professional applications including video editing, 3D rendering, and GPU-accelerated software development.
