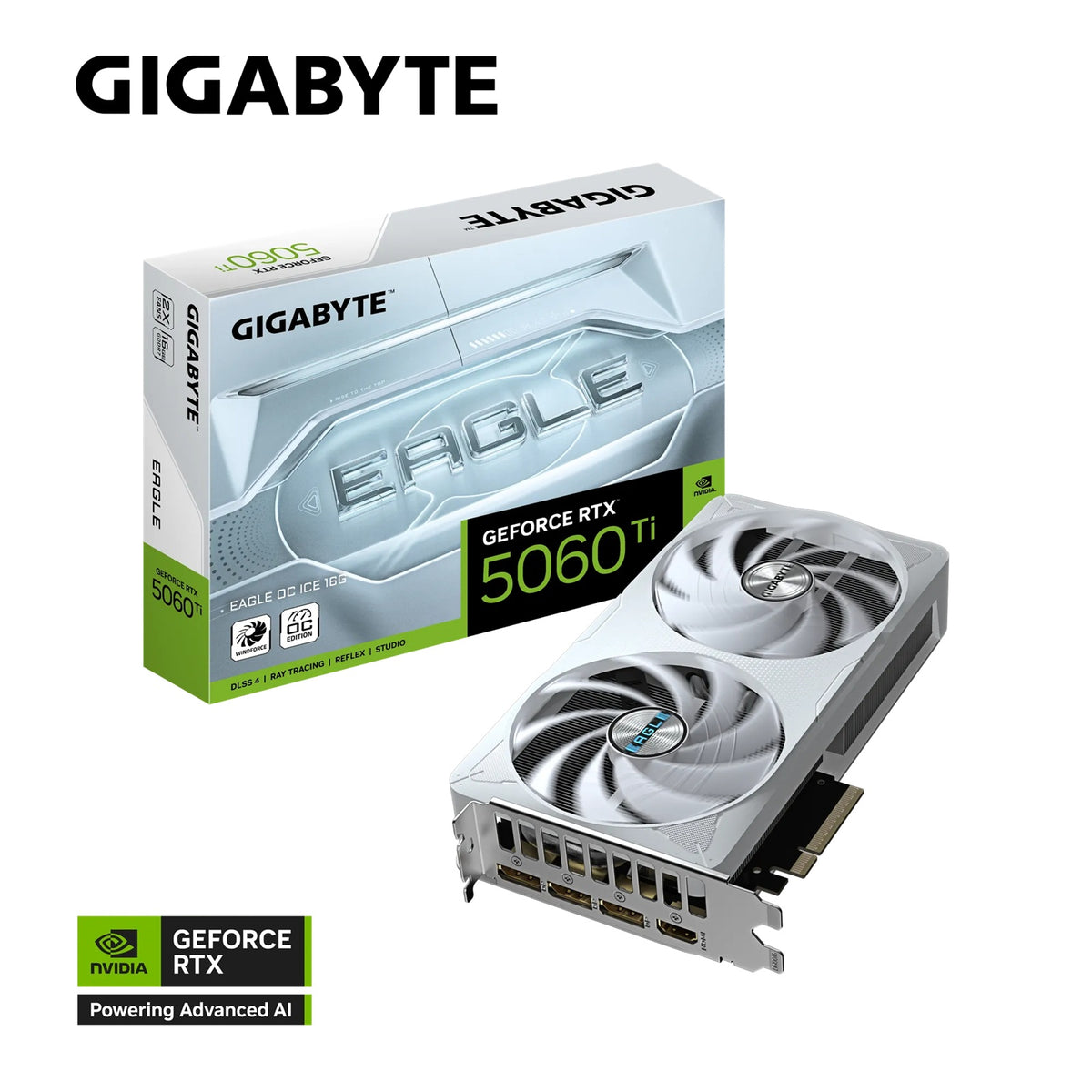

Gigabyte GeForce RTX 5060 Ti EAGLE OC ICE 16GB
Gigabyte GeForce RTX 5060 Ti EAGLE OC ICE 16GB
SKU:VCG-N506TEAGLEOCICE-16GD
The Gigabyte GeForce RTX 5060 Ti EAGLE OC ICE is a high-performance graphics card designed for gaming and content creation. Featuring 16GB GDDR7 memory, PCI-E 5.0 support, and NVIDIA Blackwell architecture, it delivers exceptional ray tracing and AI performance for creative professionals and gamers.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Video/Graphics Cards |
| SKU | VCG-N506TEAGLEOCICE-16GD |
| Availability | Out of Stock |
Overview
- The Gigabyte GeForce RTX 5060 Ti EAGLE OC ICE combines cutting-edge NVIDIA Blackwell architecture with premium cooling and build quality. With 16GB of GDDR7 memory and full PCI-E 5.0 support, it delivers exceptional performance for demanding gaming and professional applications. The WINDFORCE cooling system maintains optimal temperatures during extended workloads, while the reinforced structure and aerospace-inspired design ensure durability and aesthetic appeal.
DLSS 4 integration provides intelligent upscaling and frame generation, enabling smooth gameplay at high resolutions without sacrificing visual quality. The card's Fourth-Gen Ray Tracing Cores and optimised Streaming Multiprocessors make it ideal for ray-traced games, AI inference, neural shaders, and content creation tools. With 3 × DisplayPort 2.1b and 1 × HDMI 2.1b outputs, it supports advanced multi-monitor configurations suitable for creative professionals and competitive gamers.
Specifications
| GPU | GeForce RTX 5060 Ti |
|---|---|
| GPU Architecture | NVIDIA Blackwell |
| CUDA Cores | 4608 |
| Memory Capacity | 16GB |
| Memory Type | GDDR7 |
| Memory Interface | 128-bit |
| Memory Clock | 28 Gbps |
| Base Clock | 2572 MHz |
| Boost Clock | 2617 MHz |
| Bus Interface | PCI-E 5.0 |
| Power Connector | 8-pin × 1 |
| Recommended PSU | 650W |
| Max Display Resolution | 7680 × 4320 |
| Multi-View Support | 4 displays |
| Video Outputs | DisplayPort 2.1b × 3, HDMI 2.1b × 1 |
| Card Dimensions | 215mm (L) × 122mm (W) × 40mm (H) |
| PCB Form Factor | ATX |
| Cooling Solution | WINDFORCE with Hawk fans |
| DirectX Support | DirectX 12 |
| OpenGL Support | 4.6 |
| Warranty | 36 months |
| Accessories Included | Quick guide |
Key Features
Ideal For
FAQs
What power supply is required for the RTX 5060 Ti EAGLE OC ICE?
Gigabyte recommends a minimum 650W power supply. The card draws power via a single 8-pin connector.
Does this graphics card support PCI-E 5.0?
Yes, the RTX 5060 Ti EAGLE OC ICE features full PCI-E 5.0 support for maximum bandwidth and future compatibility.
What is DLSS 4 and how does it improve performance?
DLSS 4 is NVIDIA's deep learning super sampling technology that intelligently upscales lower-resolution images to higher resolutions whilst maintaining quality. It also includes frame generation for higher frame rates in supported games and applications.
How many displays can this card support?
The RTX 5060 Ti EAGLE OC ICE supports up to 4 simultaneous displays via its 3 × DisplayPort 2.1b and 1 × HDMI 2.1b outputs.
What is the WINDFORCE cooling system?
WINDFORCE is Gigabyte's proprietary cooling solution featuring Hawk fans with alternate spinning, server-grade thermal conductive gel, composite copper heat pipes, and a copper plate to deliver exceptional thermal performance.
Is this card suitable for 4K gaming?
Yes, the RTX 5060 Ti EAGLE OC ICE supports resolutions up to 7680 × 4320 (8K) and includes DLSS 4 for efficient 4K gaming at high frame rates.
What warranty is provided?
The Gigabyte GeForce RTX 5060 Ti EAGLE OC ICE includes a 36-month manufacturer warranty.
